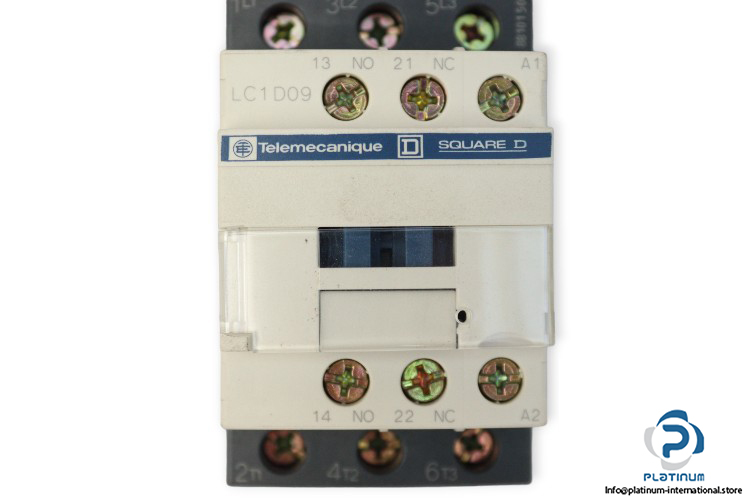

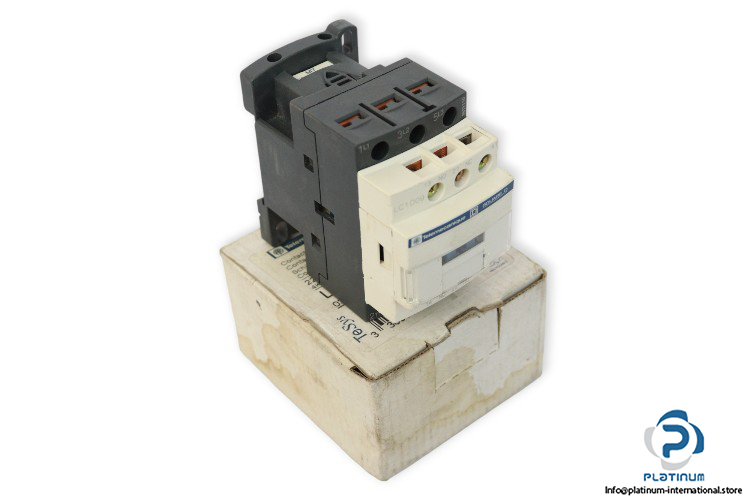

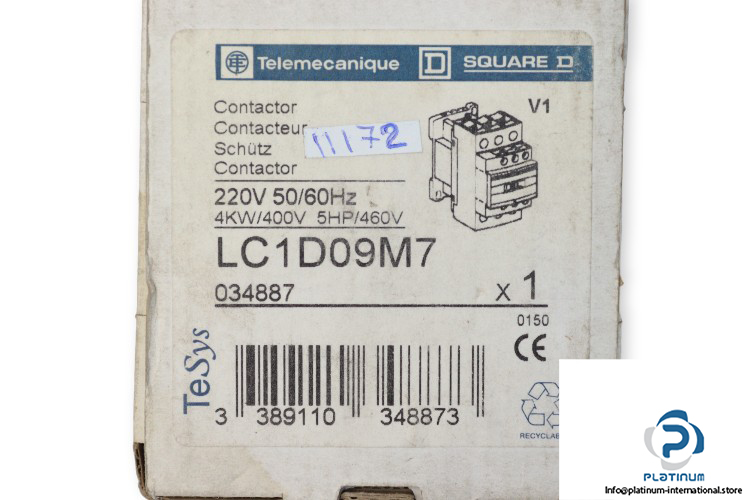

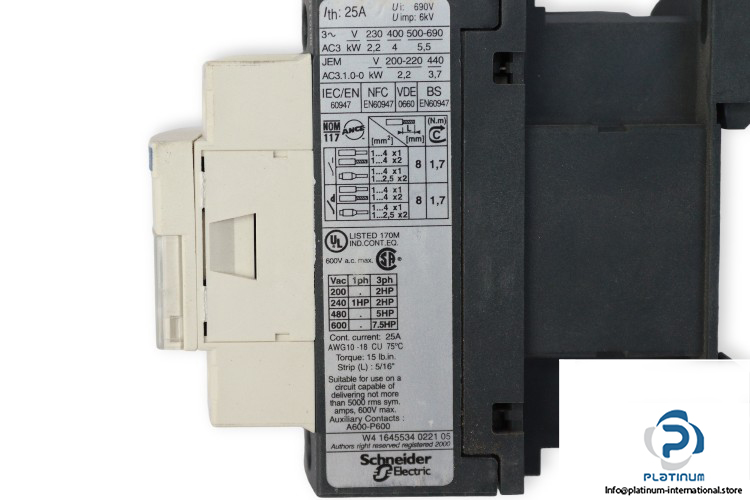

Telemecanique LC1D09M7 Contactor
신제품
재고 있음2 단위즉시 배송 가능
제조사: TELEMECANIQUE 유형: 컨택터 모델: LC1D09M7 부품 번호: 034887
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: TELEMECANIQUE
Type: Contactor
Model: LC1D09M7
Part No.: 034887
Series: LC1D
Rated Coil Voltage: 220 V AC
Rated Operational Voltage: 690 V AC / 300 V DC
Rated Operational Current AC-3: 9 A
Rated Thermal Current: 25 A
Frequency: 50 … 60 Hz
Power AC-3:
220 / 230 V AC: 2.2 kW
380 / 400 / 415 / 440 V AC: 4 kW
500 / 660 / 690 V AC: 5.5 kW
Power Loss AC-3: 0.2 W
Rated Impulse Voltage (Uimp): 6 kV
No. of Poles: 3-Pole
Auxiliary Contact: 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC)
Switching Voltage Min.: 17 V
Switching Current Min.: 5 mA
Rated Breaking Capacity: 250 A
Protection Class: IP20
Ambient Temperature: -40 … 60 °C
Dimensions: 77 x 45 x 86 mm
