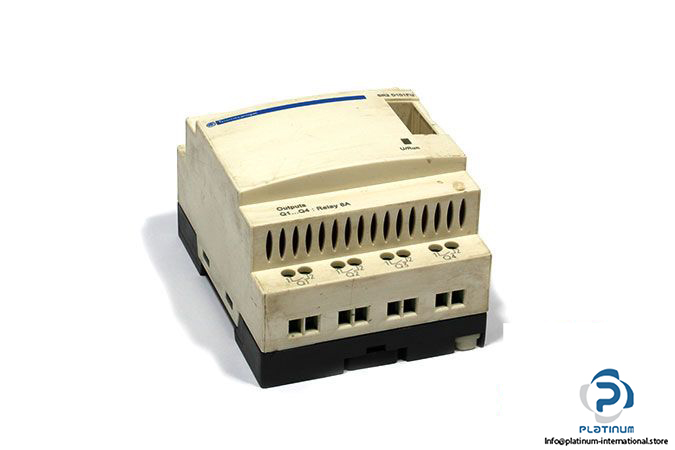

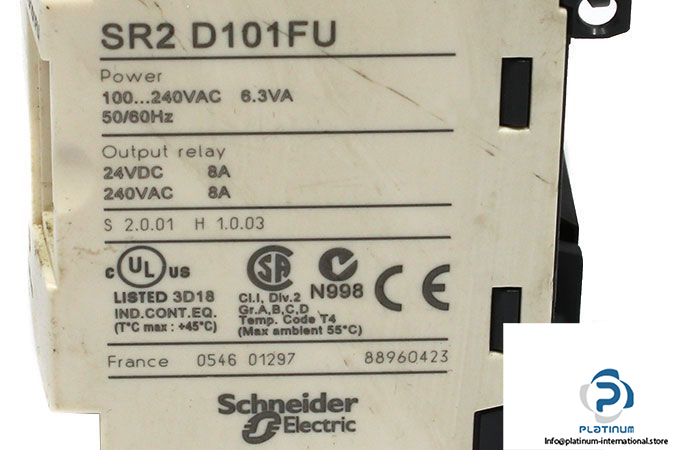

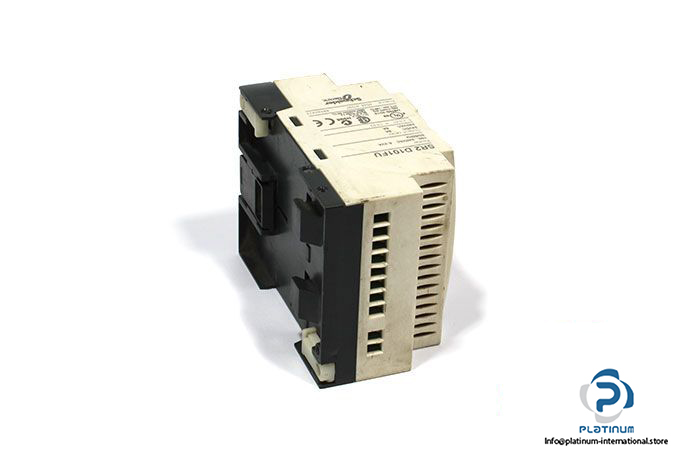

Telemecanique SR2D101FU Compact Smart Relay
Manufacturer: Schneider Electric / Telemecanique
Type: Compact Smart Relay
Model: SR2 D101FU
Rated Supply Voltage: 100…240 V AC
Supply Frequency: 50/60 Hz
Max. Supply Current: 30 mA at 240 V, 80 mA at 100 V
Power Consumption: 7 VA
Discrete Input Number: 6
Discrete Input Voltage: 100…240 V AC
Discrete Input Current: 0.6 mA
Number of Outputs: 4 relay
Cycle Time: 6…90 ms
Operating Temperature: -20…55 °C
Protection Class: IP20 / IP40
Dimensions: 90 x 71 x 57 mm
Weight: 0.17 kg
