Telemecanique XCK-J Limit Switch
중고
재고 있음1 단위즉시 배송 가능
Limit Switch
The Telemecanique XCKJ Limit Switch features a roller plunger actuator, 500 V AC insulation voltage, and IP66 protection. Designed for industrial automation, it ensures reliable and precise operation.ActionAutomationcontacts.ControlIndustrialIP66LimitMachineryPlatedPlungerRollerSilverSnapSwitchSystemTelemecaniqueXckjZCK-E67ZCK-J1
방대한 재고
글로벌 배송
전문 지원
품질 보장

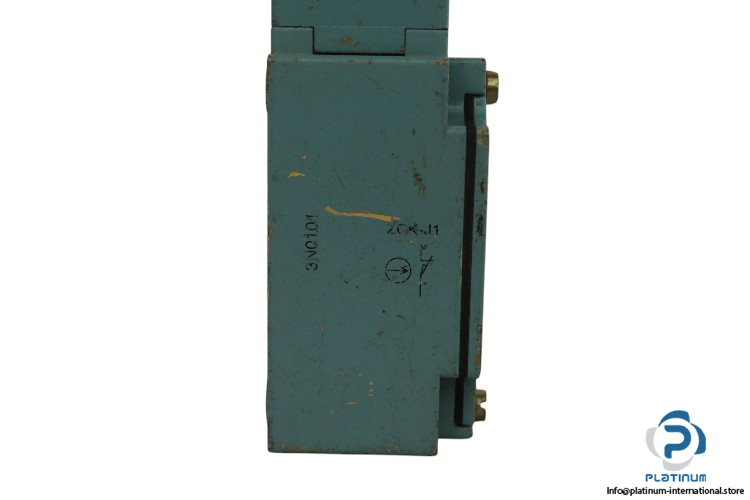

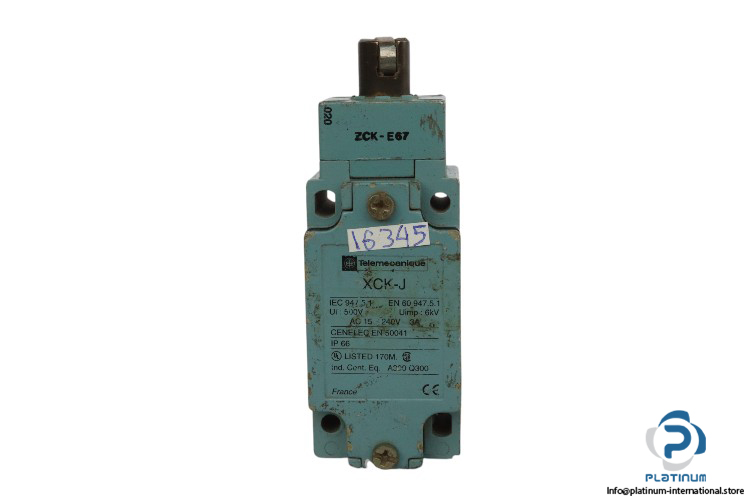

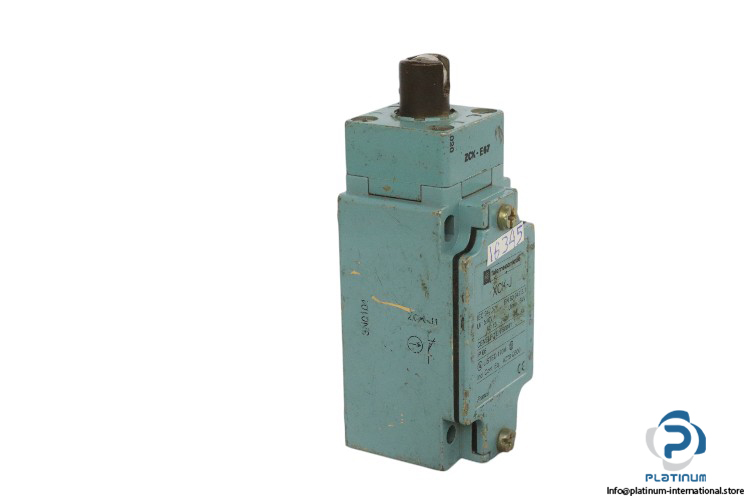

Telemecanique XCKJ Limit Switch
The Telemecanique XCKJ Limit Switch is a high-performance industrial switch designed for precision and reliability in automation and machinery applications. Featuring a robust metal body and a roller plunger actuator, this switch ensures efficient operation under demanding conditions.
Manufacturer: Telemecanique
Type: Limit Switch
Model: XCKJ
Body Model: ZCK-J1
Head Model: ZCK-E67
Designed for industrial automation and control systems, the Telemecanique XCKJ offers durability, precision, and reliability in harsh environments.
| Actuator Type | Roller Plunger |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conventional Enclosed Thermal Current (Ith) | 10 A |
| Standard Compliance | EN 60 947-5-1, IEC 947-5-1 |
| Body Material | Metal |
| Cable Entry | 1 entry tapped for Pg 13.5 cable gland |
| Number of Poles | 2 |
| Contacts Type and Composition | 1 Normally Closed (NC), 1 Normally Open (NO) |
| Contact Operation | Snap Action |
| Contacts Material | Silver Plated Contacts |
| Electrical Connection | Screw-Clamp Terminals |
| Clamping Capacity | 1 x 0.34 / 2 x 1.5 mm² |
| Rated Operational Current | 3 A at 240 V, AC-15 |
| Degree of Protection | IP66 |
| Ambient Air Temperature for Operation | -25 to 70 °C |
