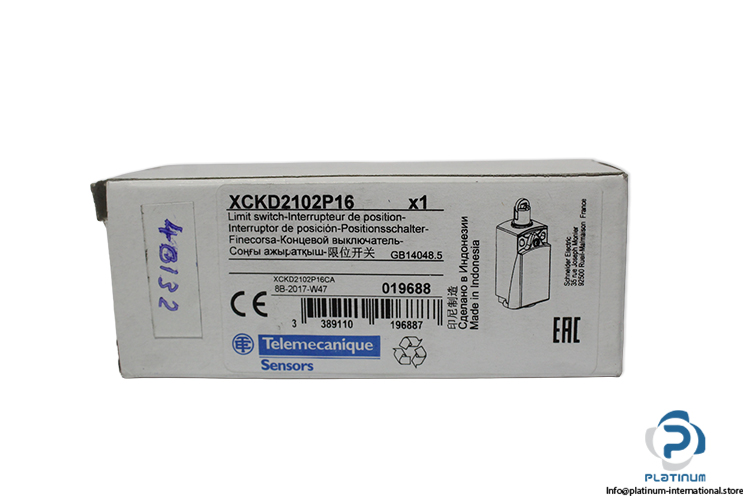

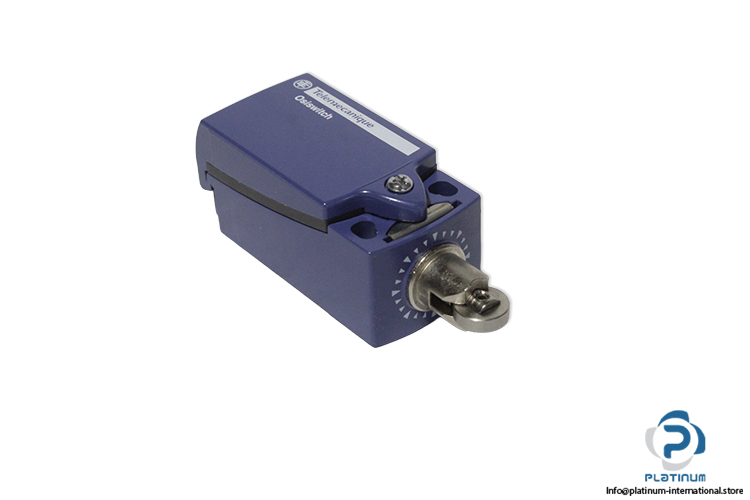

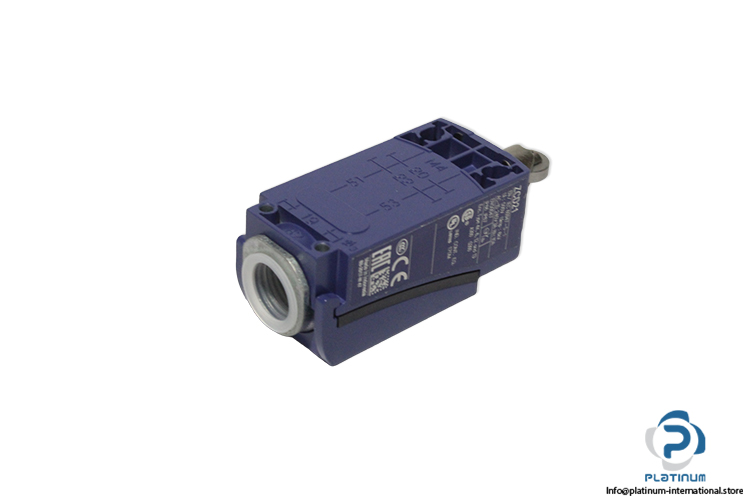

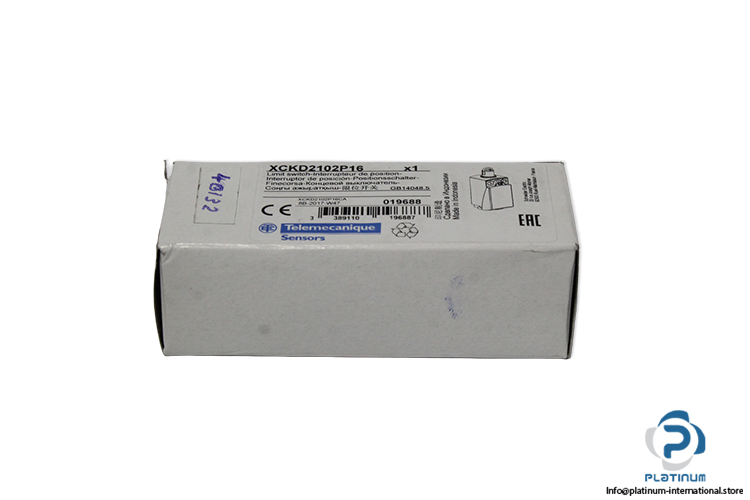

Telemecanique XCKD2102P16 Limit Switch
신제품
재고 있음3 단위즉시 배송 가능
24,44$
Limit Switch The Telemecanique XCKD2102P16 is an industrial limit switch with a metal roller plunger, 1 NO + 1 NC contacts, and IP66/67 protection for automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

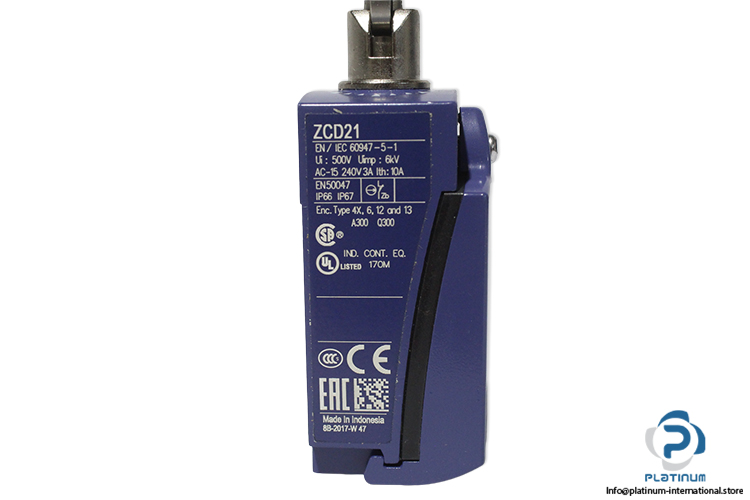

| Body Model | ZCD21 |
| Part No. | 019688 |
| Short Name | XCKD |
| Rated Operational Voltage | 240 V AC |
| Rated Operational Current | 3 A |
| Rated Thermal Current | 10 (4) A |
| Insulation Voltage Ui | 500 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Head Type | Plunger Head |
| Type of Operator | Spring Return Roller Plunger Metal |
| Movement of Operating Head | Linear |
| Switch Actuation | By 30° Cam |
| Head Material | Metal |
| Protection Class | IP66/67 |
| Temperature | -25 … 70 °C |
| Dimensions | 65 x 31 x 30 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103949 |
| Weight | 0,17 |
