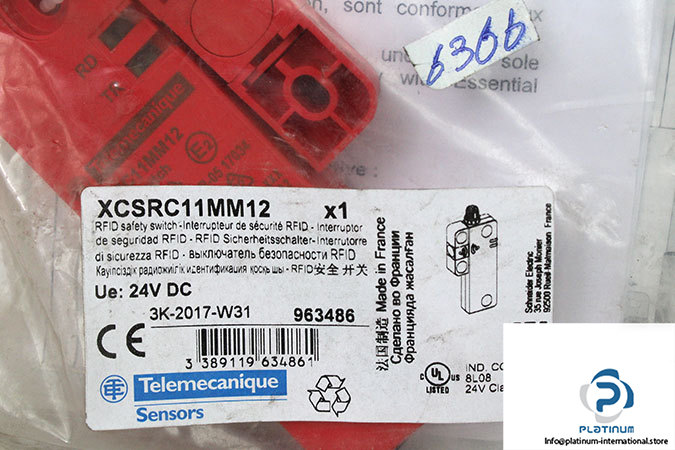

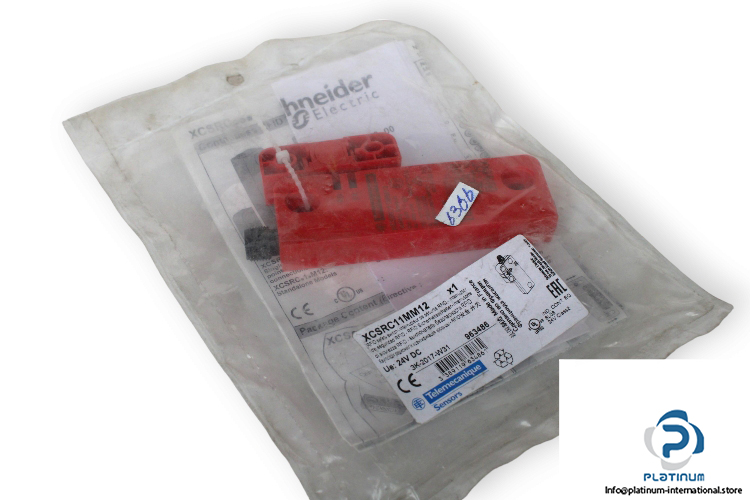

Telemecanique XCSRC11MM12 Safety Switch

Manufacturer: TELEMECANIQUE
Type: Safety Switch
Component name: XCSRC
Model: XCSRC11MM12
Part No.: 963486

Design: Rectangular, standard
Size: 50 x 15 x 15 mm
Reader: 108.3 x 30 x 15 mm
Material: Valox
Electrical connection: 1 male connector
Connector type: M12 male
Type of output stage: Solid-state, PNP
Safety outputs: 2 NO
Number of poles: 8
[Sa] assured operating distance: 10 mm
[Sar] assured tripping distance: 35 mm
Approach directions: 3 directions-transponder with rotary sensing face
[Ue] rated operational voltage: 24 V DC
[Ie] rated operational current: 60 mA
[Ui] rated insulation voltage: 30 V DC
Protection type: Short-circuit protection
Maximum switching voltage: 26.4 V DC
Switching capacity in mA: 400 mA
Maximum discordance time: 120 ms
Response time: 250 ms typical
