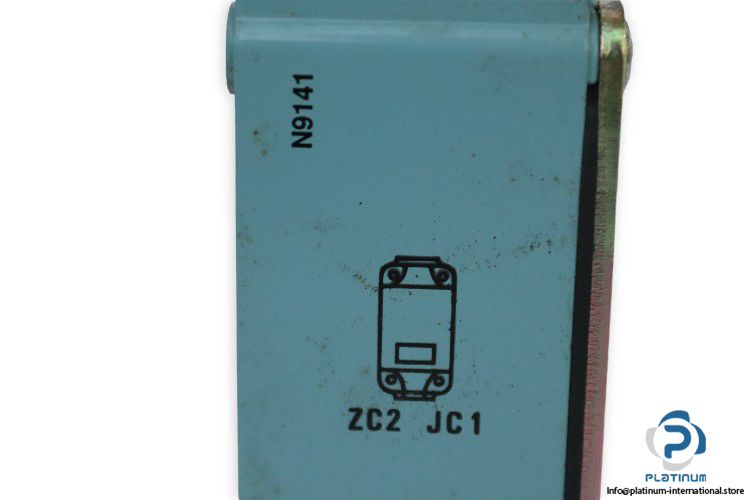

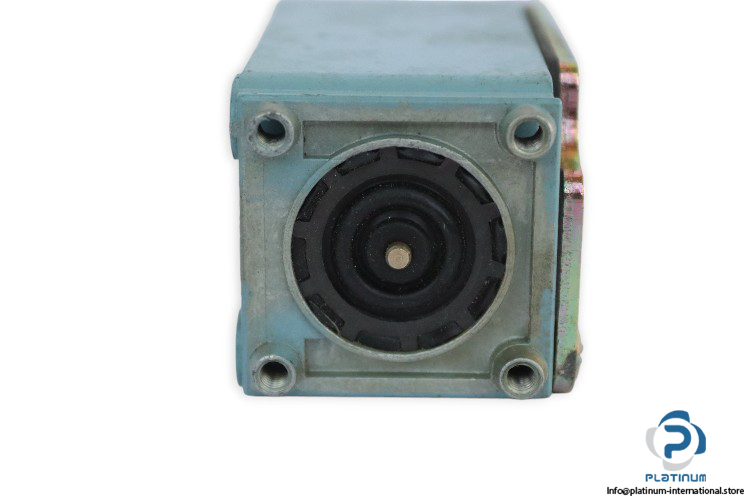

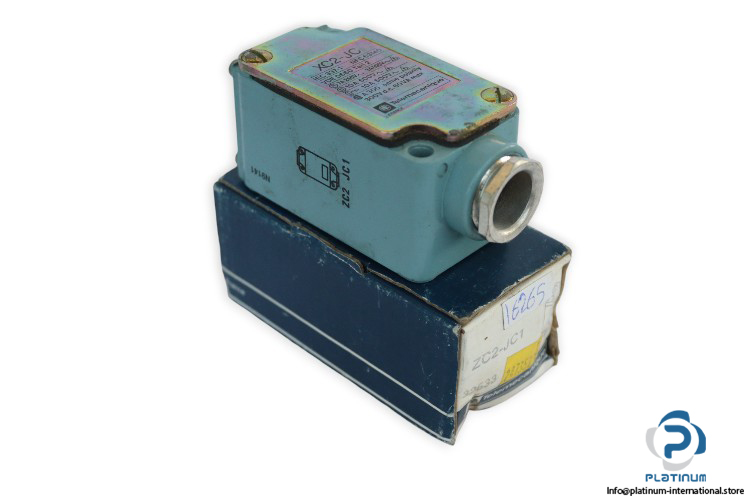

Telemecanique ZC2 JC1 Limit Switch

Manufacturer: TELEMECANIQUE
Type: LIMIT SWITCH

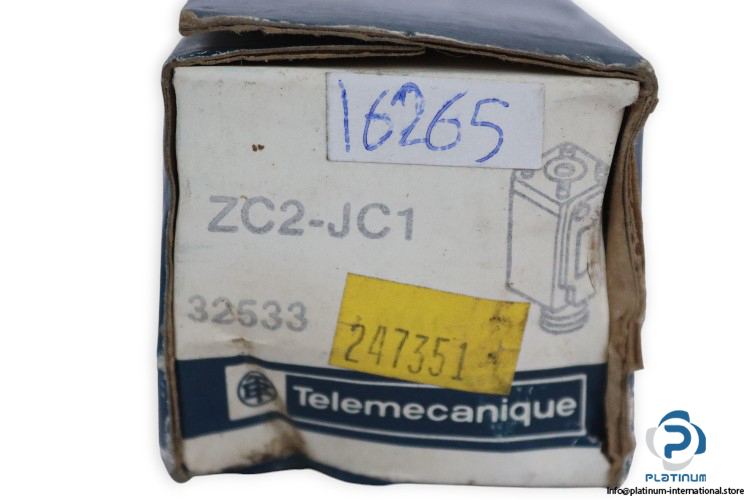

model: ZC2JC1

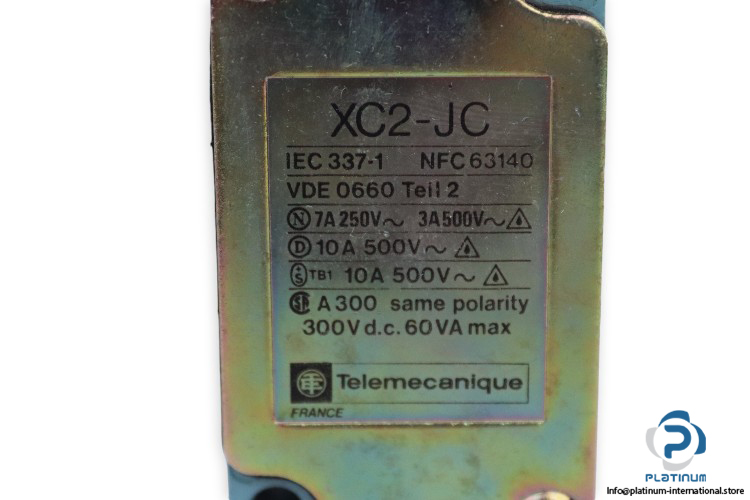

Alternative Model : XC2-JC

Range of product: OsiSense XC
Body type: Fixed
rated insulation voltage(Ui):
500 V conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
thermal current: 10 A
Degree of protection: IP65
Number of poles: 1
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.5…2 x 2.5 mm²
Contacts type and composition: 1 C/O
Contacts material: Silver plated contacts
Maximum resistance across terminals: 0.25 mOhm
Contact operation: Snap action
Body material: Metal
Ambient temperature: -25…70 °C
Dimension (Width X Height X Depth): 40 X 81 X 41 mm
