Telemecanique ZC2JC1 Limit Switch
신제품
재고 있음1 단위즉시 배송 가능
Limit Switch
TELEMECANIQUE ZC2JC1 metal limit switch from the OsiSense XC range, rated 240 V AC and IP65, supplied with ZC2JE01 rotary limit switch head for industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

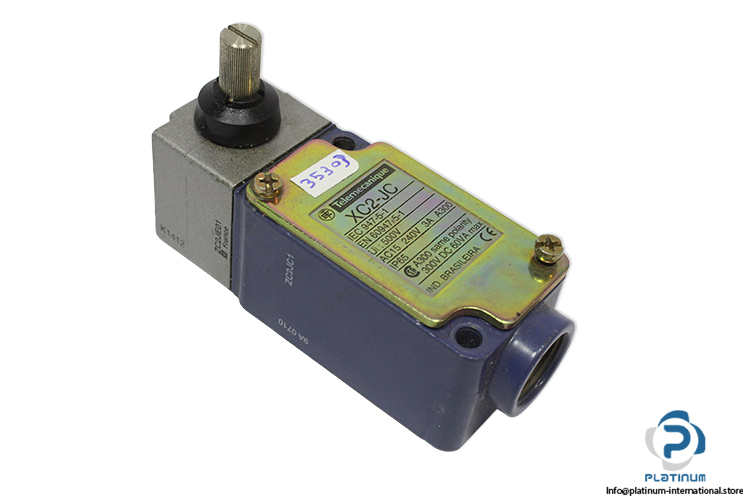

TELEMECANIQUE ZC2JC1 Limit Switch
The TELEMECANIQUE ZC2JC1 limit switch from the OsiSense XC range is designed for precise position detection in industrial automation systems. With a robust metal head, high electrical ratings, and IP65 protection, it ensures reliable operation in demanding industrial environments.
Manufacturer: TELEMECANIQUE
Type: Limit Switch
Model: ZC2JC1

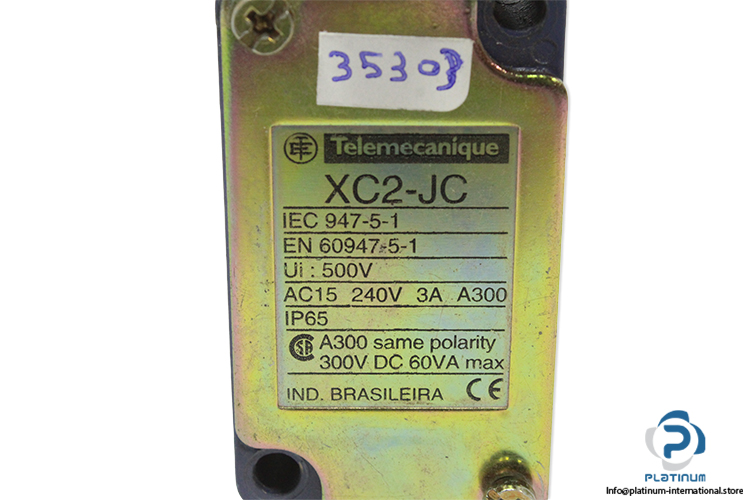

Alternative Model: XC2-JC
Short Name: ZC2J
Range of Product: OsiSense XC
Attachment

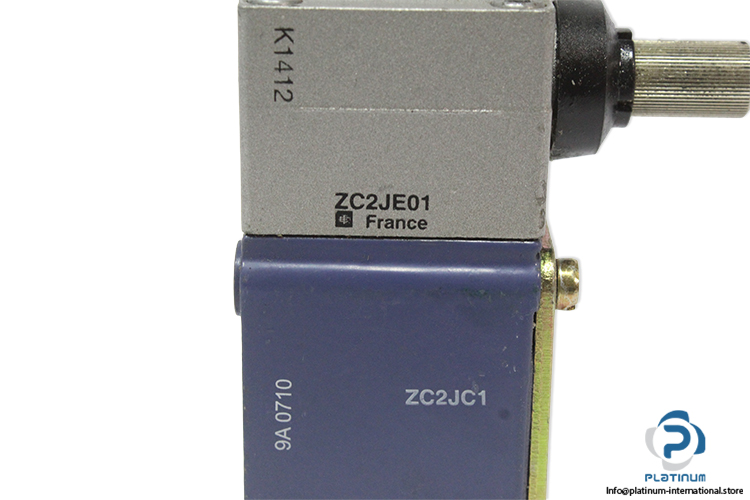

TELEMECANIQUE ZC2JE01 Limit Switch Head
| Rated Operational Voltage | 240 V AC |
| Rated Operational Current | 3 A |
| Thermal Current | 10 A |
| Rated Insulation Voltage | 500 V |
| Head Material | Metal |
| Protection Class | IP65 |
| Operating Temperature | -25 to 70 °C |
| Dimensions | 81 x 40 x 41 mm |
| Alternative Model | K1412 |
| Short Name | ZC2J |
| Range of Product | OsiSense XC |
| Operating Head Movement | Rotary |
