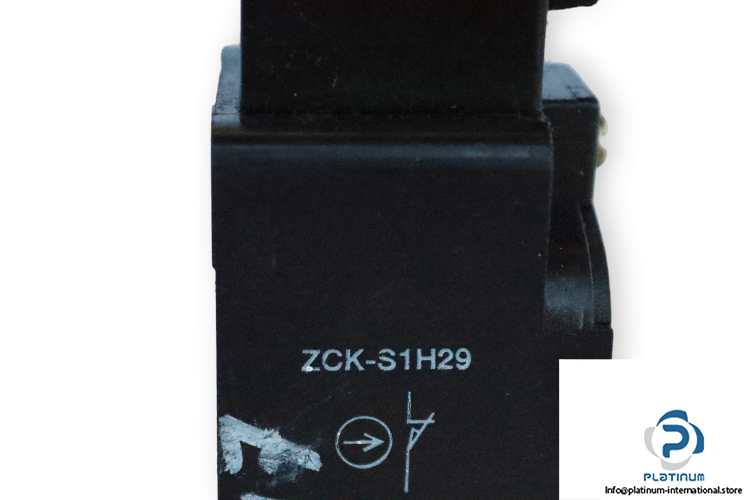

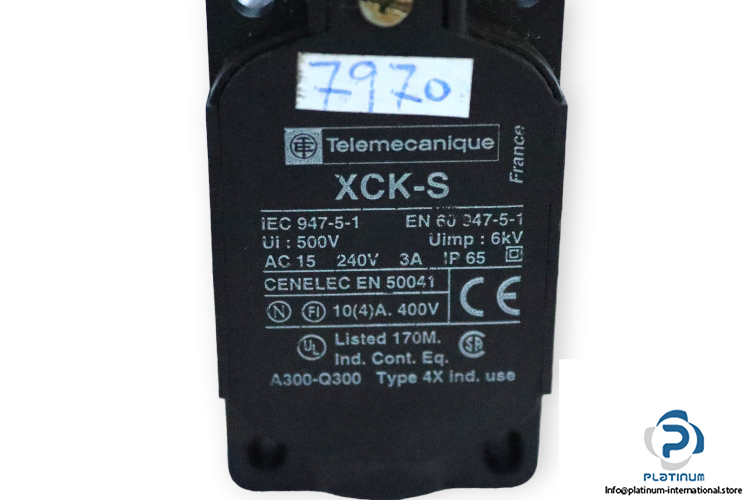

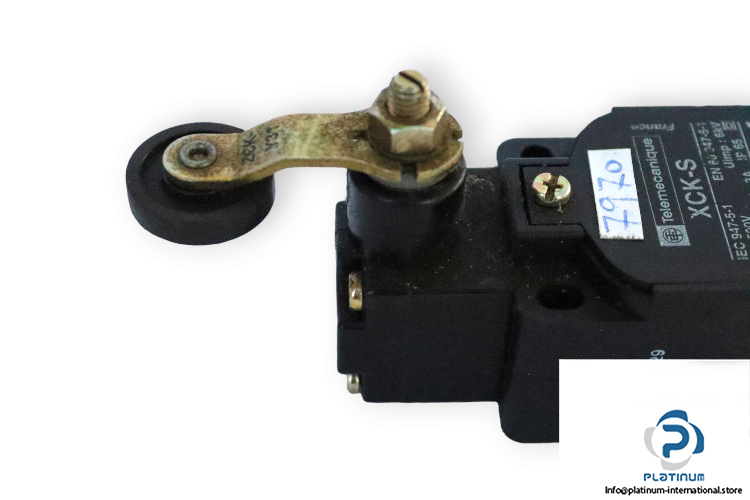

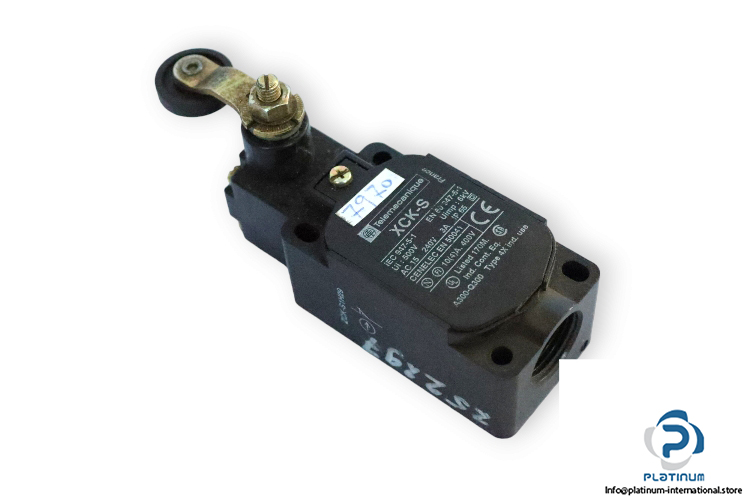

Telemecanique ZCK-S1H29 Limit Switch
중고
재고 있음4 단위즉시 배송 가능
39,99$
Manufacture: Telemecanique Type: Limit Switch Device short name: ZCKS Product compatibility: XCKS Model: ZCK-S1H29
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Telemecanique
Type: Limit Switch
Device short name: ZCKS
Product compatibility: XCKS
Model: ZCK-S1H29
Insulation voltage Ui: 500 V
Impulse with stand voltage Uimp: 6 Kv
Conventional enclosed thermal current Ith: 10 A
Output Configuration: 1 NC + 1 NO
Number of poles: 2
Contact operation: Snap action
Contacts material: Silver plated contacts
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm²
Switching Voltage max.: 240 V AC
Contact Current max.: 3 A
Protection Class: IP65
Ambient Operating Temperature: -25 … 70 °C
Dimensions: 40 X 73 X 36 mm
