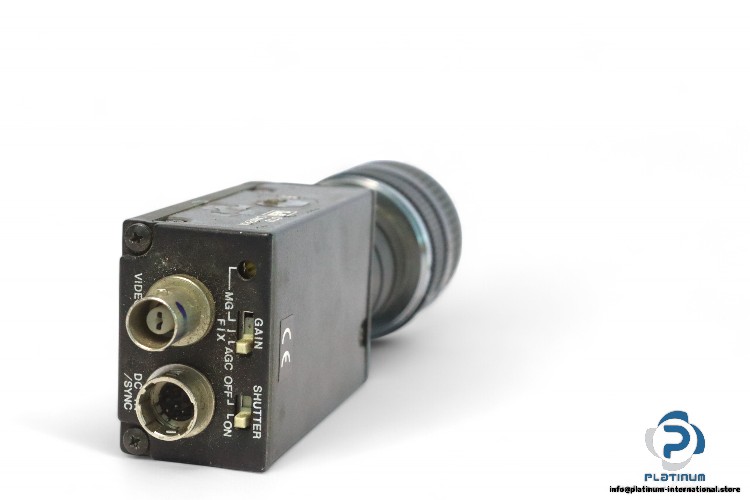

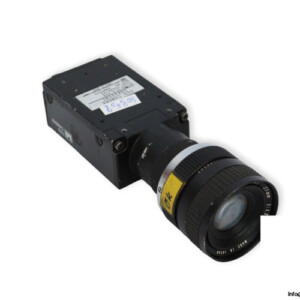

Teli / Computar CS8320BC CCD Camera
중고
재고 있음1 단위즉시 배송 가능
CCD 카메라
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Teli / Computar
Type: CCD CAMERA
Model: CS8320BC
Part No.: TV LENS / 25MM / 1:1.3
Serial No.: TV0441A2
Supply Voltage: 12 V DC
Current: 0.23 A
Connection: Based on CCIR standard
TV System: CS8320BC
Image Sensor Active Pixel: 752 (H) X 582 (V)
Chip Size: 8.6 µ m x 8.3 µm
Active Image Area: 6.4 (H) X 4.8 (V) mm
No. of Scanning Line: 625 lines
Aperture Range: 1 : 1.3
Focal Length: 25 mm
Scanning Frequency: 15.625 kHz ( Horizontal)/ 50 Hz (Vertical)
Resolution: 560 TV lines (Horizontal)/ 575 TV Lines (Vertical)
Dimension: 78 X 29 X 44 mm
