THK HSR45LA1SS Linear Bearing Block
재고 있음2 단위즉시 배송 가능
리니어 베어링 블록 THK HSR45LA1SS 리니어 베어링 블록은 정밀 모션 제어를 위한 고성능 솔루션으로, 우수한 하중 용량, 내구성 및 산업용 애플리케이션에서 최적의 보호를 위한 다중 씰을 제공합니다.
100AutomationbearingbearingsBlockControldurableflange-typehigh-loadHSR45LA1SSIndustrialkNLinearLMLoadMotionPrecisionSystemThk
방대한 재고
글로벌 배송
전문 지원
품질 보장

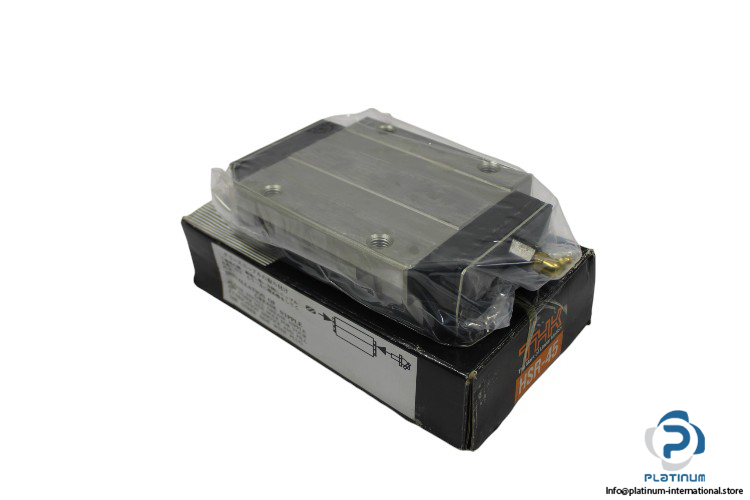

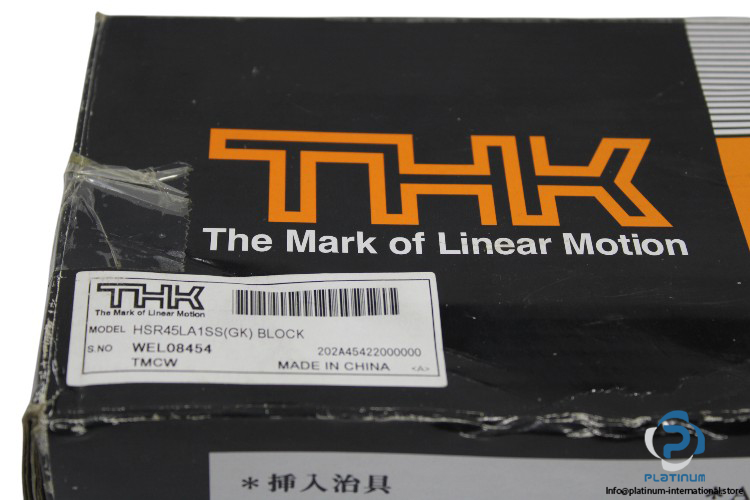

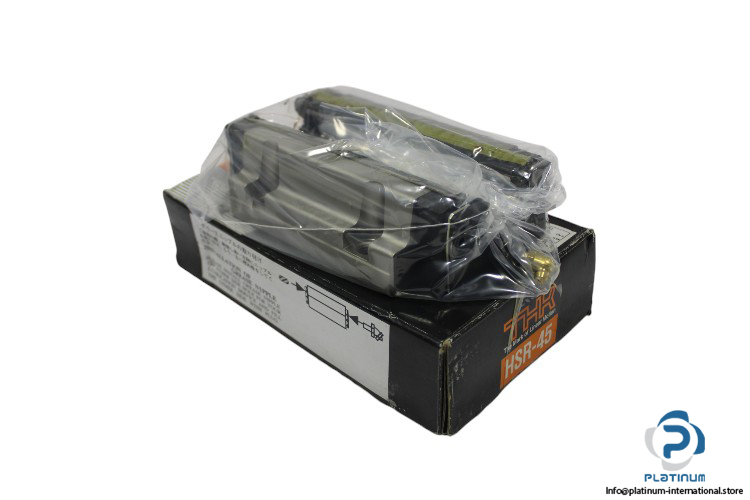

THK HSR45LA1SS Linear Bearing Block
The THK HSR45LA1SS Linear Bearing Block is designed for high-precision motion control applications, providing excellent load capacity and stability. Featuring a robust flange-type design with multiple seals for enhanced protection, this linear block ensures smooth and efficient performance in demanding industrial environments.
Manufacturer: THK
Type: Linear Bearing Block
Model: HSR45LA1SS
Basic Load Ratings:
| Size | 45 |
| Length | 170.8 mm |
| Width | 120 mm |
| Height | 60 mm |
| Height of Block | 50 mm |
| Block Type | Flange |
| Dynamic Load Rating | 100 kN |
| Static Load Rating | 135 kN |
| Tapped Holes | 4 |
| Seal Type | 1SS (with End Seal, Side Seal, and Inner Seal) |
| Type of LM Block | LA |
