THK SSR20XW1UU Linear Guide Block
THK SSR20XW1UU LINEAR GUIDE BLOCK

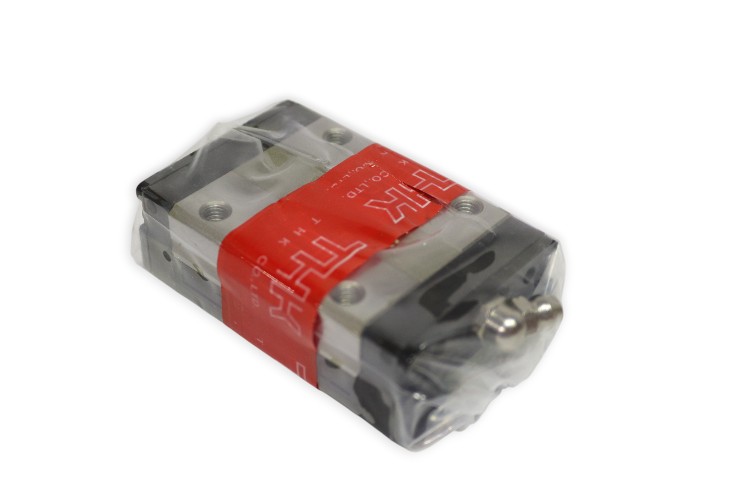

The THK SSR20XW1UU Linear Guide Block is a compact and durable block designed for precision linear motion applications. With high load ratings, smooth travel, and sealing protection, it ensures reliability in demanding industrial environments.
Manufacturer: THK
Type: Linear Guide Block

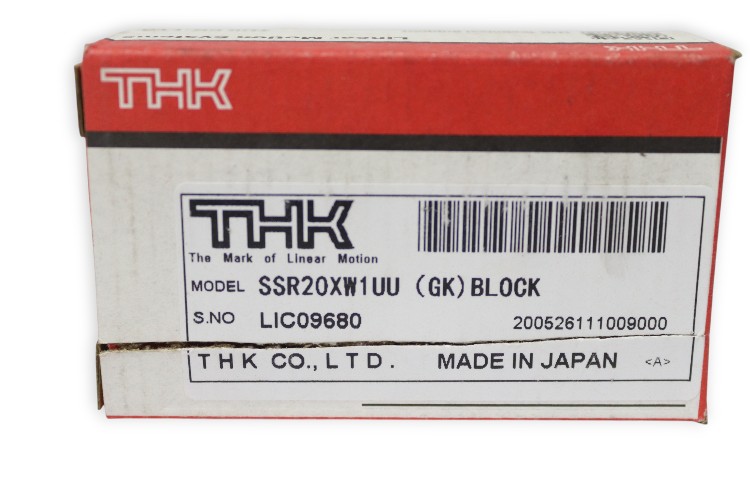

Model: SSR20XW1UU

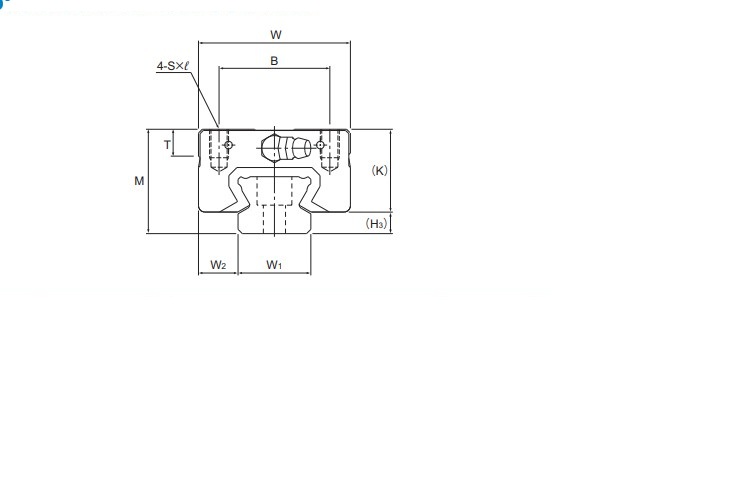

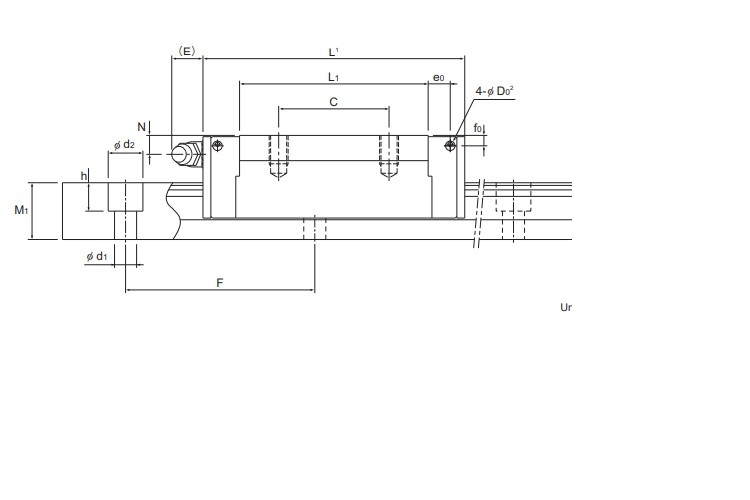

| Size | 20 |
| Length | 66.5 mm |
| Width | 42 mm |
| Height of Block | 22 mm |
| Height of System | 28 mm |
| B | 32 mm |
| C | 32 mm |
| Dynamic Load | 19.6 kN |
| Static Load | 23.4 kN |
| Tapped Hole | 4 |
| No. of LM Block | 1 |
| Sealing | UU (with end seal) |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing. |
