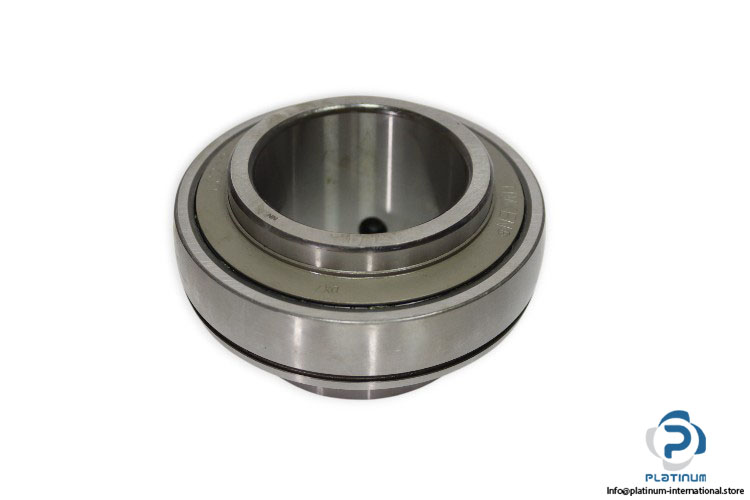

Timken UC 213 Insert Ball Bearing
Timken UC213 Wide Inner Ring Ball Bearing - Set Screw Locking
The Timken UC213 is a precision-engineered wide inner ring ball bearing designed for smooth and reliable rotation in heavy-duty industrial applications. Equipped with a secure set screw locking mechanism and cylindrical bore, it provides excellent stability, high load capacity, and long operational life. This bearing is ideal for machinery requiring dependable shaft attachment and reduced maintenance needs.
Manufacturer: Timken
Type: Wide Inner Ring Ball Bearing - Set Screw Locking
Model: UC213
| Bore Type | Cylindrical bore |
| Locking Device | Set Screw Locking |
| Shaft Size (d) | 65 mm |
| Outside Diameter (D) | 120 mm |
| Outside Ring Width (C) | 28 mm |
| Radius (r) | 1.5 mm |
| Set Screw Size | M12×1.5 |
| No. of Set Screws | 2 |
| Angle Between Set Screws | 120° |
| Static Load Rating | 40100 N |
| Dynamic Load Rating | 57200 N |
