Trans Link SA 206 Insert Ball Bearing

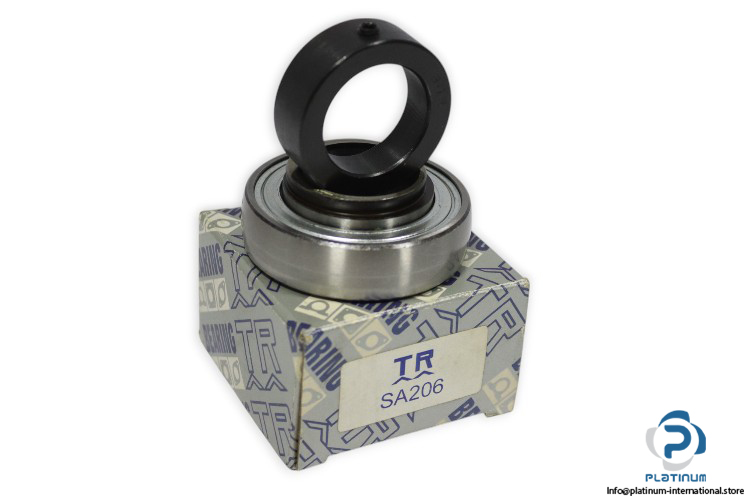

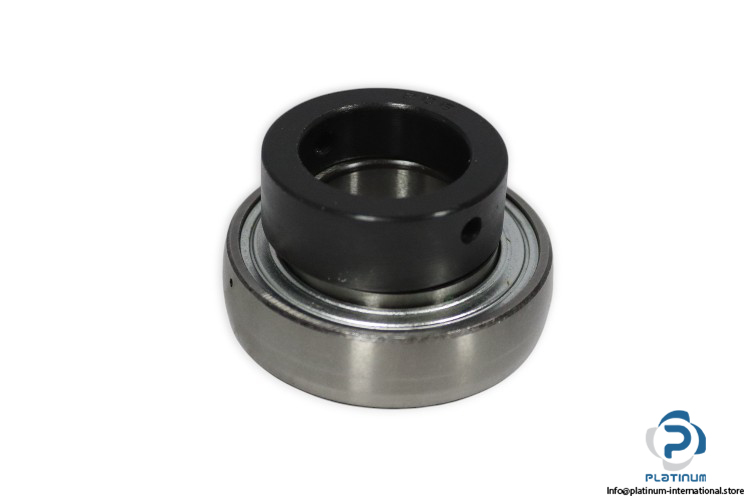

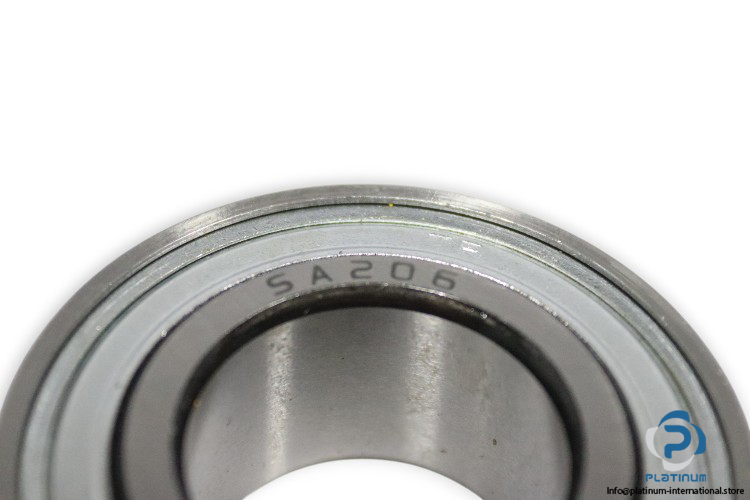

Trans Link SA206 Insert Ball Bearing
The Trans Link SA206 Insert Ball Bearing is engineered for durability and performance. With a bore diameter of 30 mm and an outer diameter of 62 mm, it is designed for seamless integration into various industrial applications. The bearing features a width of 35.7 mm and offers exceptional load-carrying capabilities with a basic dynamic load rating of 14.97 kN and a basic static load rating of 11.31 kN.
🔧 Technical Specifications:
- Manufacturer: Trans Link
- Type: Insert Ball Bearing
- Model: SA206
- Bore Diameter (d): 30 mm
- Outer Diameter: 62 mm
- Width: 35.7 mm
- Basic Dynamic Load Rating (C): 14.97 kN
- Basic Static Load Rating (C0): 11.31 kN
Designed with precision, the SA206 Insert Ball Bearing is ideal for applications requiring reliable performance and high load capacity, ensuring longevity and efficiency in industrial operations.
