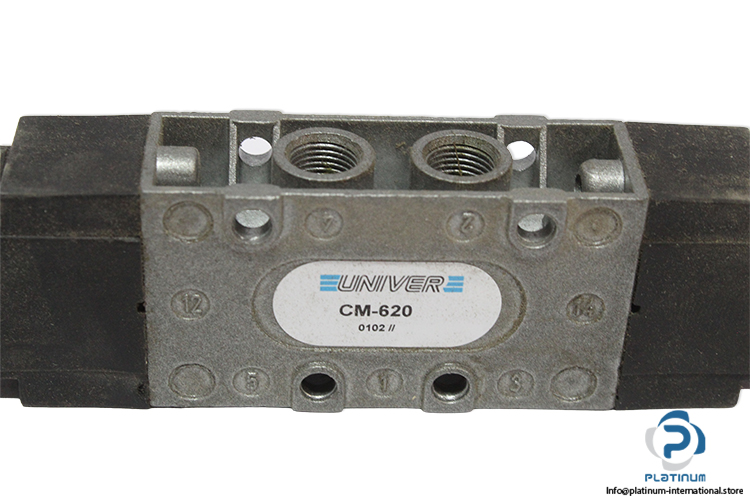

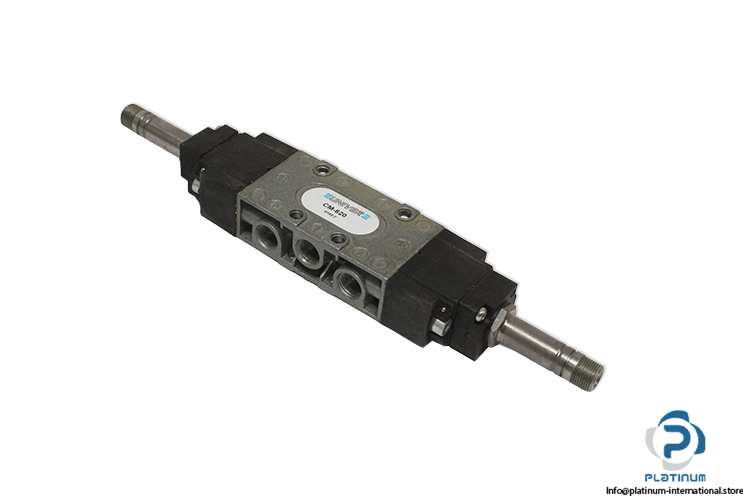

Univer CM-620 Universal Valve
UNIVER CM-620 Universal Valve
The UNIVER CM-620 is a compact universal pneumatic valve designed for reliable air control in industrial automation and pneumatic systems. Part of the CM series, this valve features a spool commutation system and supports multiple control methods for flexible integration in machinery and process control applications.
Manufacturer: UNIVER
Type: Universal Valve
Model: CM-620
Code No: 0102
Series: CM
| Fluid | 50 μm filtered air, with or without lubrication |
| Commutation System | Spool |
| Ways / Positions | 5/2 |
| Pressure | Max 10 bar |
| Control | Indirect electro-pneumatic, pneumatic, manual, mechanical |
| Return | Pneumatic spring, mechanical spring |
| Connections | G1/8 |
| Valve Body | Die-cast Zamak |
| Ambient Temperature | -10 ÷ +50 °C |
| Fluid Temperature | Max +50 °C |
