Vega D84.XRA4311FA Hydrostatic Pressure Transmitter
중고
재고 있음1 단위즉시 배송 가능
Hydrostatic Pressure Transmitter
The VEGA D84.XRA4311FA Hydrostatic Pressure Transmitter provides accurate pressure monitoring with a 0“5.0 bar range, 4“20 mA analogue signal, and IP65 protection. Supplied with a D84 electronic insert for reliable industrial performance.0“5.012“364“20AnaloguebarD84D84.XRA4311FAdcElectronicHartHydrostaticIndustrialinsertIP65mAMeasurementmonitoringPneumaticPressureProtectionRangeSensorSignalTransmitterVVega
방대한 재고
글로벌 배송
전문 지원
품질 보장

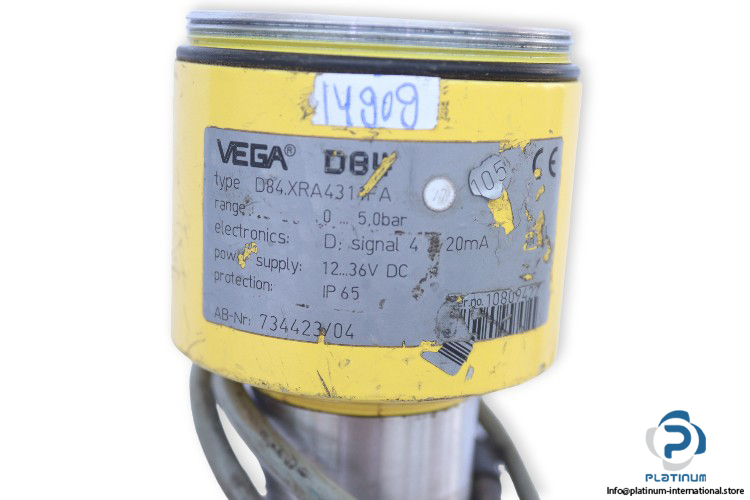

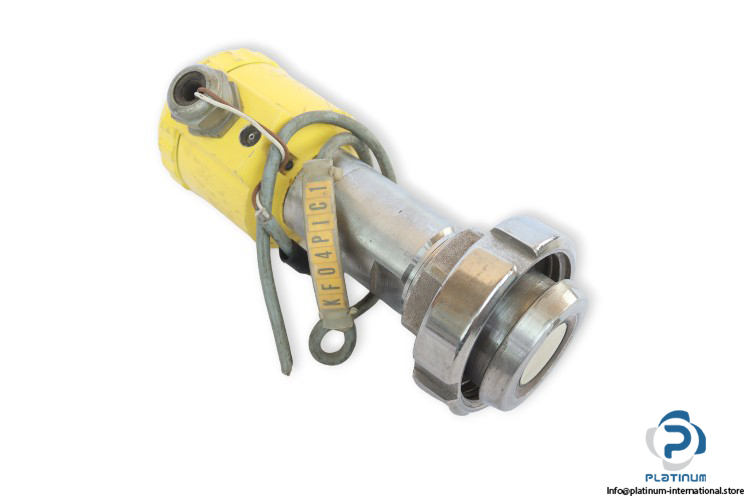

VEGA D84.XRA4311FA Hydrostatic Pressure Transmitter
The VEGA D84XRA4311FA Hydrostatic Pressure Transmitter is a precision-engineered device designed for accurate pressure measurement in industrial environments. With robust construction and an IP65 protection class, it ensures long-lasting performance under a wide range of temperatures and pressures.
Manufacturer: VEGA
Type: Hydrostatic Pressure Transmitter
Model: D84.XRA4311FA
Part No.: 734423/04
Attachment:

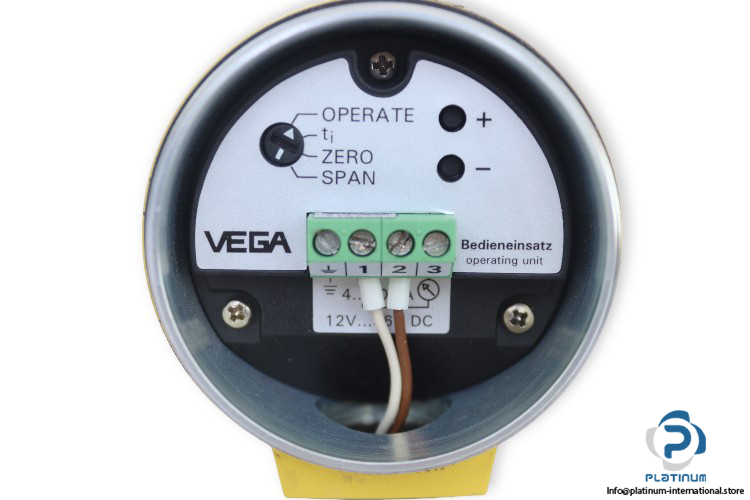

VEGA D84 Electronic Insert
| Measuring Pressure Range | 0 / 5.0 bar |
| Process Temperature | -10 / 100 °C |
| Supply Voltage | 12 / 36 V DC |
| Input Current | 150 mA |
| Analogue Output Signal | 4 / 20 mA |
| Prob Length, Diameter | 121 mm, 41.6 mm |
| Welded Socket Length, Diameter | 19 mm, 65 mm |
| Protection Class | IP65 |
| Ambient Temperature | -40 / 85 °C |
| Total Length, Diameter | 188 mm, 76 mm |
| Supply Voltage | 12 / 36 V DC |
| Output Current | 4 / 20 mA HART |
