Vipa 222-1BF00 Digital Output Module
신제품
요청 시 제공 가능
99,99$
Digital Output Module
VIPA / Yaskawa 222-1BF00 digital output module, part of the System 200V series SM 222, featuring 24 V DC rated voltage, 8 outputs, 1 A rated input current, and compact rail-mount design.
중고
요청 시 제공 가능
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

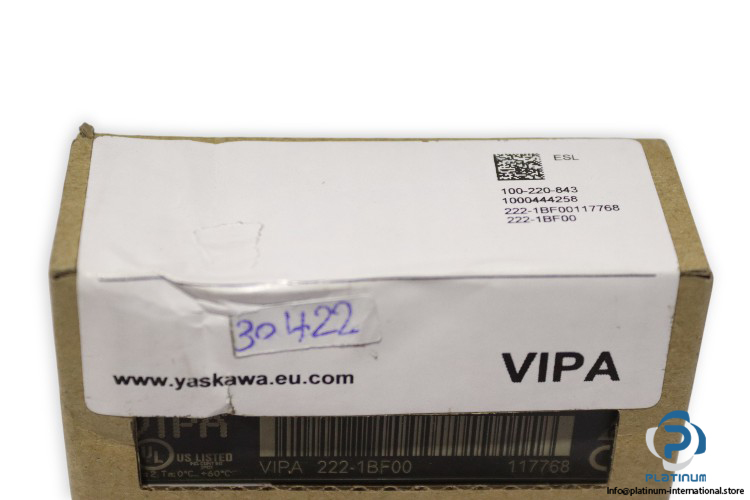

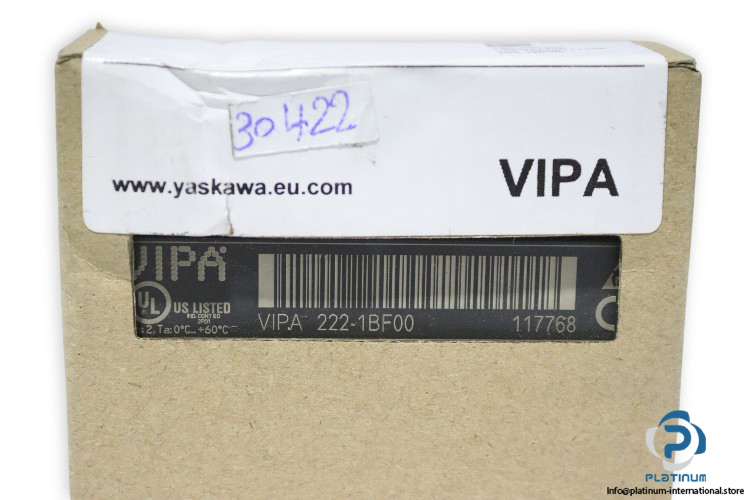

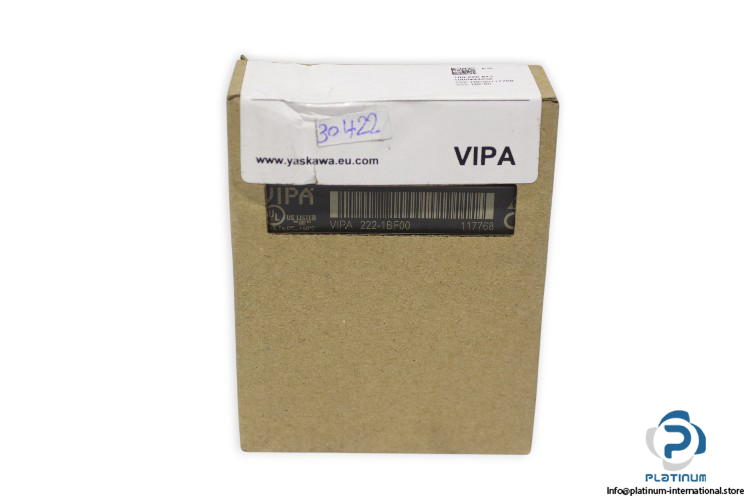

VIPA / Yaskawa 222-1BF00 Digital Output Module
The VIPA / Yaskawa 222-1BF00 is a reliable digital output module from the System 200V series, designed for precise and efficient signal control in industrial automation systems. With robust construction and dependable performance, it ensures long-term use in demanding environments.
Manufacturer: VIPA / YASKAWA
Type: Digital Output Module
Model: 222-1BF00
Part No.: 117768
Codes: 100-220-843 / 1000444258 / 222-1BF00/117768
| Series | VIPA System 200V I/O Modules |
| Range | SM 222 |
| Rated Voltage | 24 V DC |
| Rated Input Current | 1 A |
| Digital Outputs (DO) No. | 8 |
| Current Consumption from Backplane Bus | 70 mA |
| Power Loss | 2 W |
| Number of Outputs | 8 |
| Cable Length (Shielded) | 1000 m |
| Material | PPE / PA 6.6 |
| Mounting | Profile Rail 35 mm |
| Dimensions (WxHxD) | 25.4 mm x 76 mm x 88 mm |
