Vishay DB 050110 Capacitor
신제품
재고 있음1 단위즉시 배송 가능
파워 피드-스루 커패시터 Vishay DB 050110, 2000 pF 용량, 15000 vp 정격 전압, 최대 200 kvar 전력 및 75 ARMS 정격 전류, 신뢰성 있는 성능을 위한 R230 세라믹 유전체로 제작됨.
방대한 재고
글로벌 배송
전문 지원
품질 보장

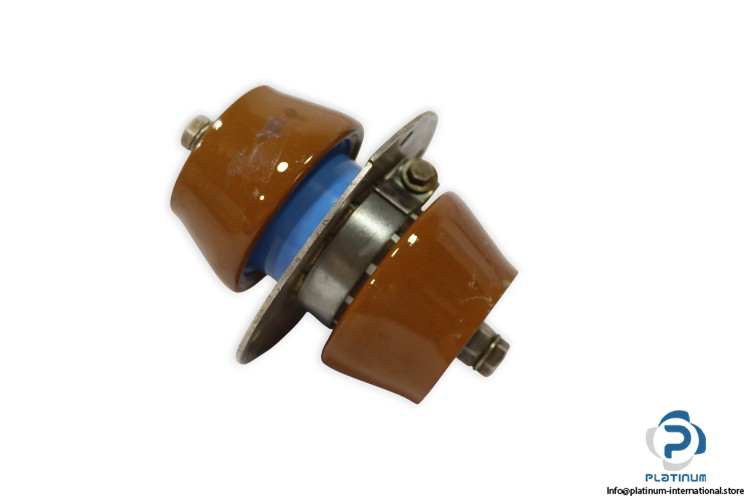

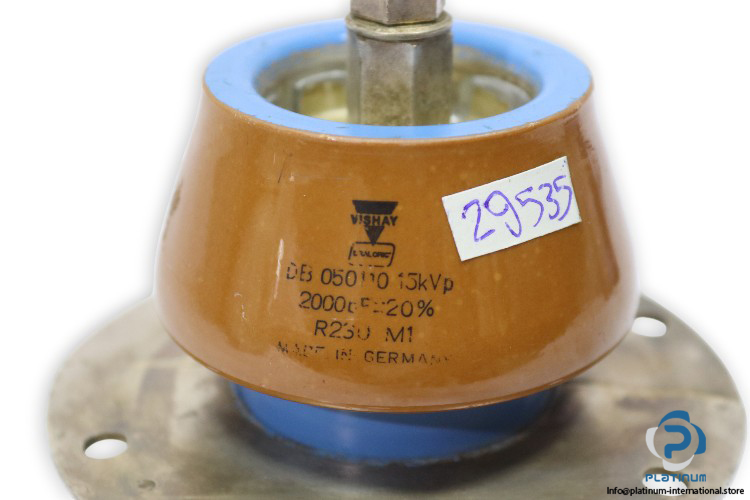

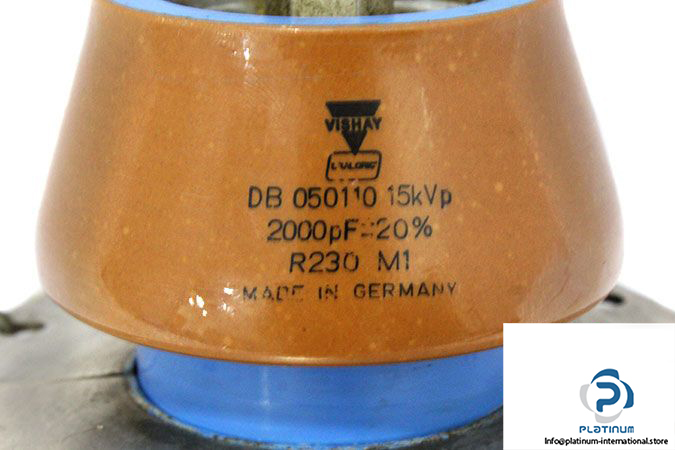

Vishay DB 050110 Power Feed-Through Capacitor
The Vishay DB 050110 is a high-performance power feed-through capacitor designed for demanding industrial and electronic applications. Built with class 1 ceramic dielectric and noble metal electrodes, it ensures excellent stability, low losses, and reliable operation under harsh conditions.
Manufacturer: Vishay
Type: Power Feed-Through Capacitor
Model: DB 050110
| Material | Capacitor elements made from class 1 ceramic dielectric with noble metal electrodes |
| Capacitance Range | 1.0 nF to 3.0 nF |
| Rated Voltage | 15000 vp |
| Rated Power | Max 200 kvar |
| Rated Current | 75 ARMS |
| Cap. Values | 2000 pf |
| Ceramic Dielectrics | R230 |
| Diameter, Length | 110 mm, 122 mm |
| Temperature Range | -55 / 100 °C |
