Gear Pump Unit & Spare Motor
The SKF VOGEL MFE5-3041+39E Gear Pump Unit, with a 0.5 L/min flow rate and 28 bar back pressure, is designed for single-line lubrication systems. It is attached with the VOGEL DU56N2075-50+39E spare motor for reliable power supply in industrial applications.0.528barDU56N2075-50+39EflowGearIndustriall/minlubricationMaxmotorPressurepumpRateSingle-LineSKFspareSystemUnitVogel
방대한 재고
글로벌 배송
전문 지원
품질 보장

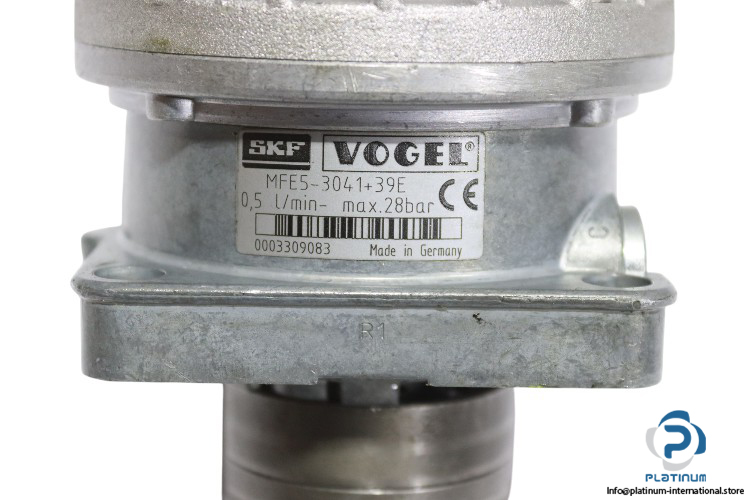

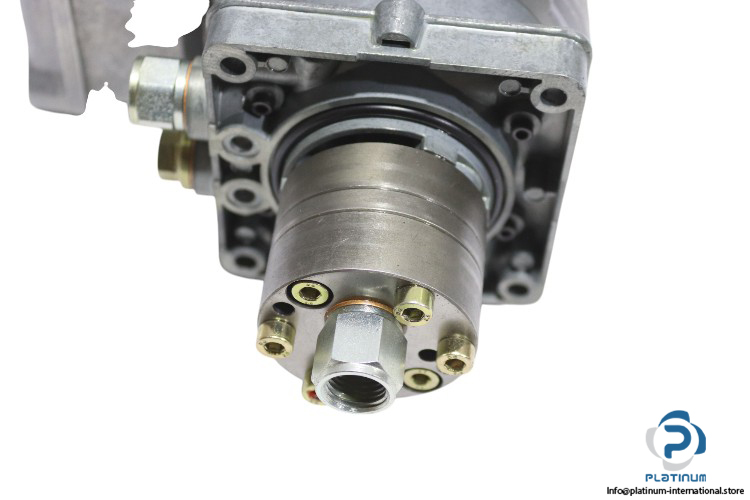

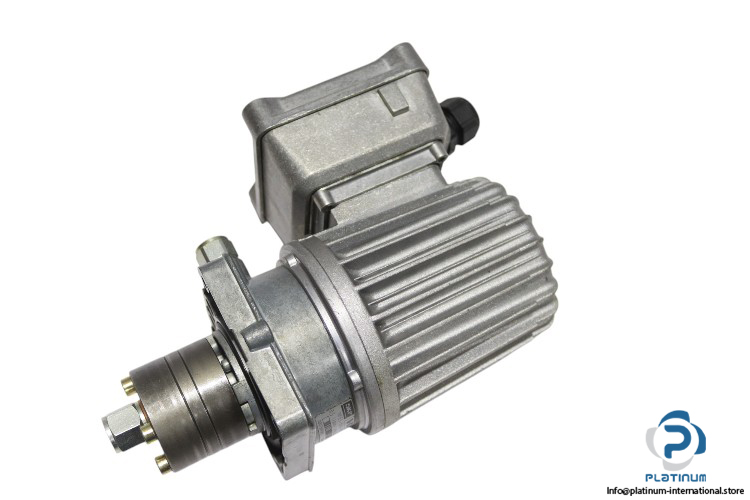

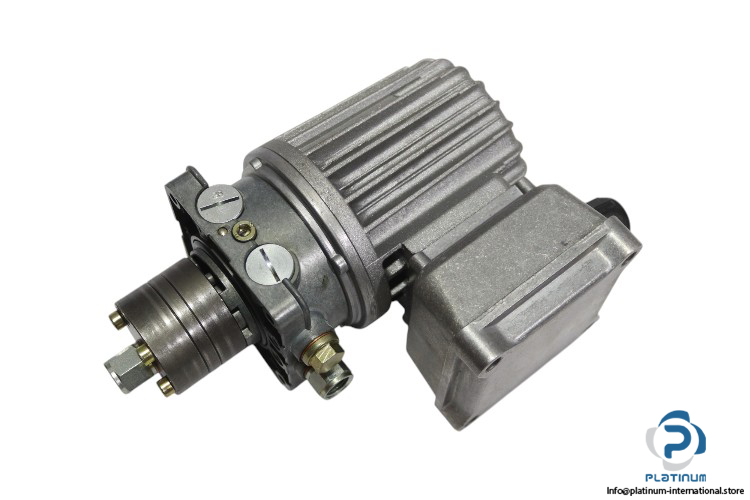

SKF VOGEL MFE5-3041+39E Gear Pump Unit
The SKF VOGEL MFE5-3041+39E Gear Pump Unit is designed for use in single-line centralized lubrication systems, providing reliable and efficient performance. With a flow rate of 0.5 L/min and a maximum back pressure of 28 bar, this unit ensures optimal lubrication in industrial applications.
Manufacturer: SKF VOGEL
Type: Gear Pump Unit
Model: MFE5-3041+39E
Ref No: 0003309083
Technical Data:
- Used For: Single-line centralized lubrication system
- Flow Rate: 0.5 L/min
- Max. Back Pressure: 28 bar
- Design: Basic version, NBR, metal terminal box
- Dimensions: 96 x 88 x 149 mm
- Port Size: G1/4
- Attached with: VOGEL DU56N2075-50+39E Motor

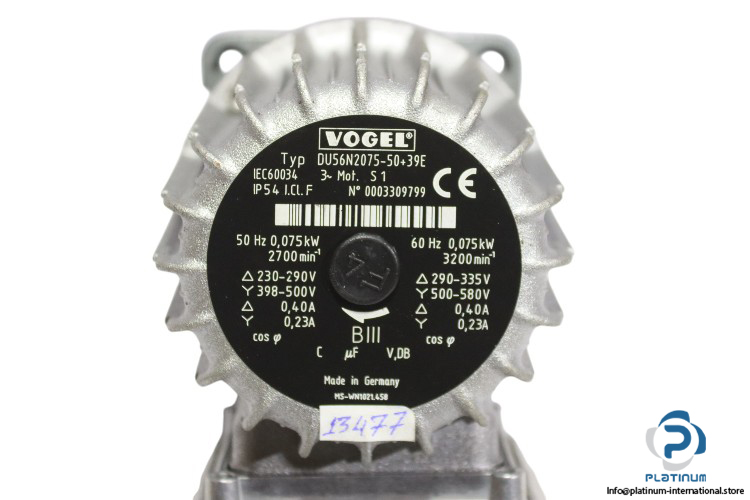

VOGEL DU56N2075-50+39E Spare Motor
The VOGEL DU56N2075-50+39E motor provides reliable power for SKF VOGEL gear pumps, designed for industrial applications with high-speed performance and optimal energy efficiency.
Manufacturer: VOGEL
Type: Spare Motor
Model: DU56N2075-50+39E
Part No: 0003309799
Technical Data:
- Type of Voltage Supply: 3-phase voltage at 50 Hz
- Star Connection Voltage: 398 / 500 V
- Delta Connection Voltage: 230 / 290 V
- Nominal Speed: 2700 rpm
- Power Consumption: 0.075 KW
- Rated Current: 0.4 / 0.23 A
- At 60 Hz:
- Star Connection Voltage: 500 / 580 V
- Delta Connection Voltage: 290 / 335 V
- Nominal Speed: 3200 rpm
- Power Consumption: 0.075 KW
- Rated Current: 0.4 / 0.23 A
- Enclosure Rating: IP54
- Isolation Class: F
