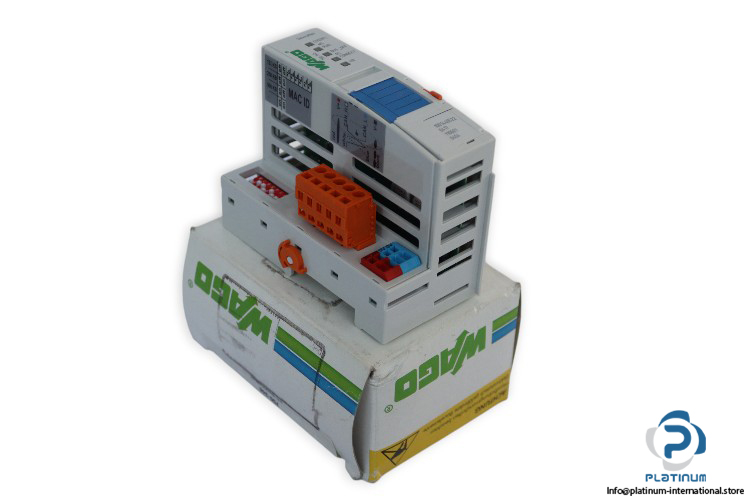

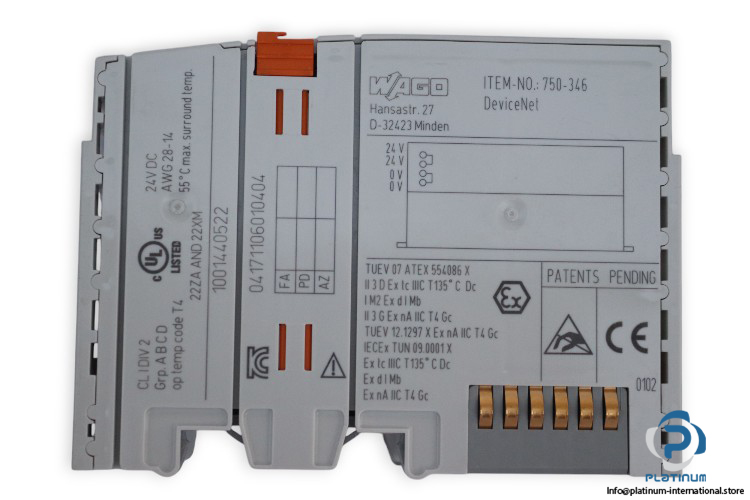

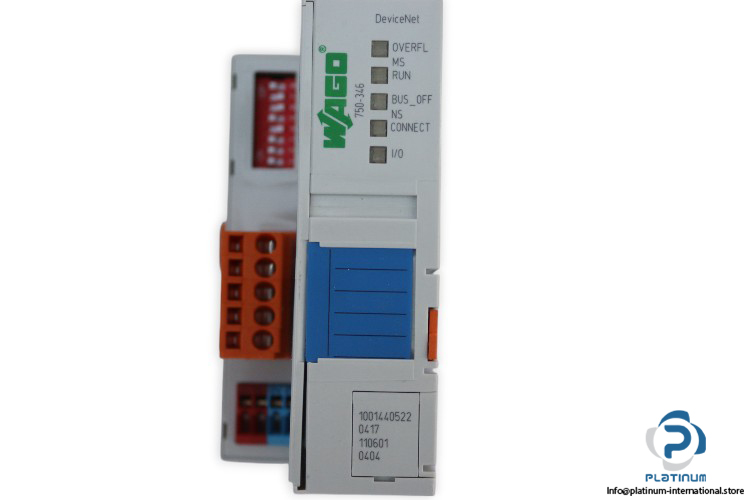

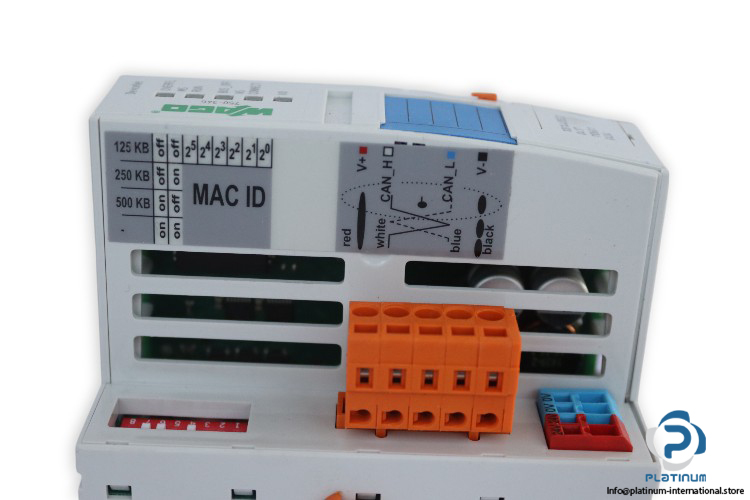

Wago 750-346 Fieldbus Coupler Devicenet

Manufacturer: WAGO
Type: Fieldbus Coupler DeviceNet
Model: 750-346

Communications: DeviceNet
Number of fieldbus nodes on master (max.): 64
Number of I/O points: 6,000
Transmission rate: 500 kBd
Bus segment length (max.): 500 m
Number of modules per node (max.): 64
Number of modules without a bus extension (max.): 64
Input and output process image (fieldbus) max.: 32 bytes/32 bytes
Supply voltage: 24 VDC
Current consumption (5 V system supply): 350Ma
Connection: 1 x Male connector; 4-pole
Housing material: Polycarbonate; polyamide 6.6
Dimensions: 50 x 97 x 72 mm
