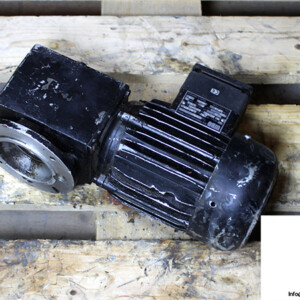

WEG 0DG 534 Gear Motor
중고
재고 있음1 단위즉시 배송 가능
Gear Motor
WEG 0DG 534 Gear Motor is a compact and highly efficient industrial motor featuring a GB12 gear model with a total ratio of 30. It delivers reliable performance with a speed of 1370 r/min at 50 Hz and 1680 r/min at 60 Hz, making it suitable for various voltage ranges.
방대한 재고
글로벌 배송
전문 지원
품질 보장
WEG 0DG 534 Gear Motor
The WEG 0DG 534 Gear Motor is a compact and efficient motor designed for industrial applications requiring reliable performance and precision. With its robust design, it operates efficiently across different voltages and frequencies, making it suitable for various power supply conditions. Equipped with the GB12 gear model and a total ratio of 30, it delivers stable torque and optimized speed for demanding applications.
- Manufacturer: WEG
- Type: Gear Motor
- Model: 0DG 534
- Part No: 2 873 350
Technical Specifications
At 50 Hz
- Speed: 1370 r/min
- Motor Power: 0.09 kW
- Motor Voltage: 220 “ 240 / 380 “ 415 V
- Current: 0.68 / 0.35 A
- Cos Phi: 0.78
At 60 Hz
- Speed: 1680 r/min
- Motor Power: 0.09 kW
- Motor Voltage: 440 “ 480 V (Star Connection)
- Current: 0.32 A
- Cos Phi: 0.78
Additional Features
- Thermal Class: B
- Enclosure Protection: IP54
- Gear Model: GB12
- Total Ratio: 30
