Weidmuller WPE 35 Terminal Block
신제품
재고 있음18 단위즉시 배송 가능
Weidmuller WPE35 보호 접지 단자 블록으로 나사 연결 기술을 적용하여 산업 전기 설치에서 최대 35 mm²까지 안전한 PE 접지 및 배선 연결을 위해 설계되었습니다.
3560947BlockconnectionDINEarthElectricalIECIndustrialmm2PanelPEProtectiverailscrewterminalWeidmullerWPE35
방대한 재고
글로벌 배송
전문 지원
품질 보장

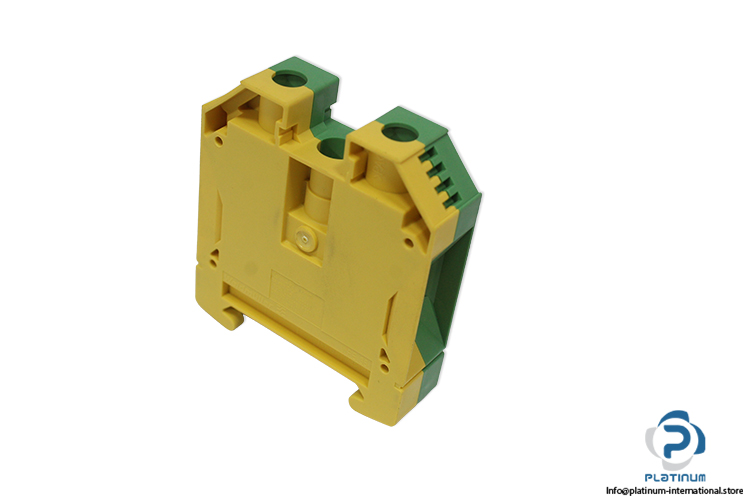

Weidmuller WPE35 Terminal Block
The Weidmuller WPE35 is a high-capacity protective earth terminal block designed for reliable grounding and secure electrical connections in industrial installations. Manufactured from Wemid material and featuring a screw connection system, this terminal block ensures safe PE connection with high clamping capability and compliance with international standards.
Manufacturer: WEIDMULLER
Type: Terminal Block
Model: WPE35

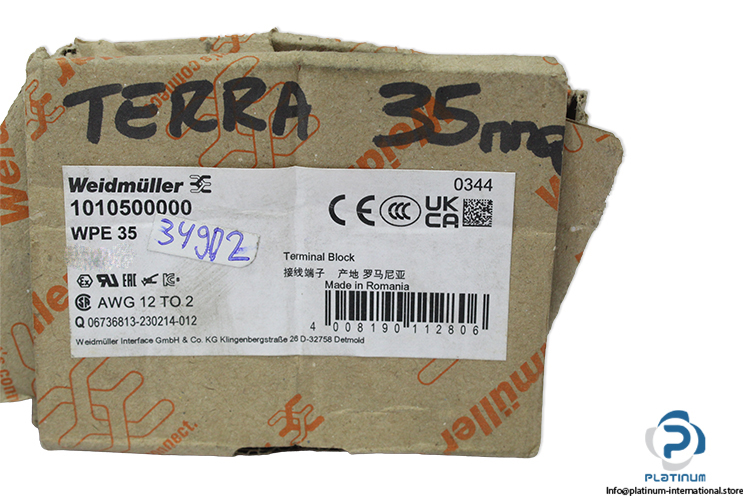

Order No.: 1010500000
Code: 06736813-230214-012
Serial No.: 40081901128
| Version | Screw Connection |
| PE Connection | With PE Connection, In Closed State |
| Basic Material | Wemid |
| Colour | Green / Yellow |
| UL 94 Flammability Rating | V-0 |
| Number Of Potentials | 1 |
| Number Of Levels | 1 |
| Number Of Clamping Points Per Level | 2 |
| Number Of Potentials Per Tier | 1 |
| Blade Size | 6.5 x 1.2 mm |
| Clamping Range Max. | 35 mm² |
| Clamping Range Min. | 2.5 mm² |
| Clamping Screw | M6 |
| TS 35 Offset | 32 mm |
| Standards | IEC 60947-7-2 |
| Wire Connection Cross Section AWG Max. | AWG 2 |
| Wire Connection Cross Section AWG Min. | AWG 12 |

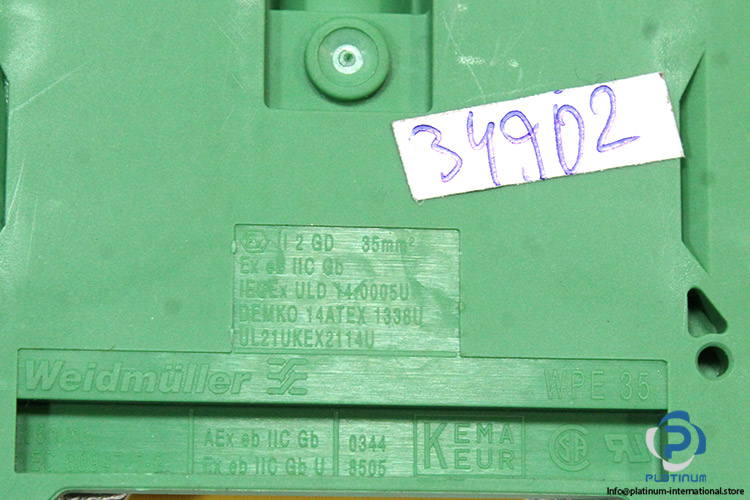

| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Wire Cross Section Max. (ATEX) | 35 mm² |
| Wire Cross Section Max. (IECEX) | 35 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU Label | II 2 G D |
| Depth | 62.5 mm |
| Height | 56 mm |
| Width | 16 mm |
| Ambient Temperature | -60 °C / 85 °C |
