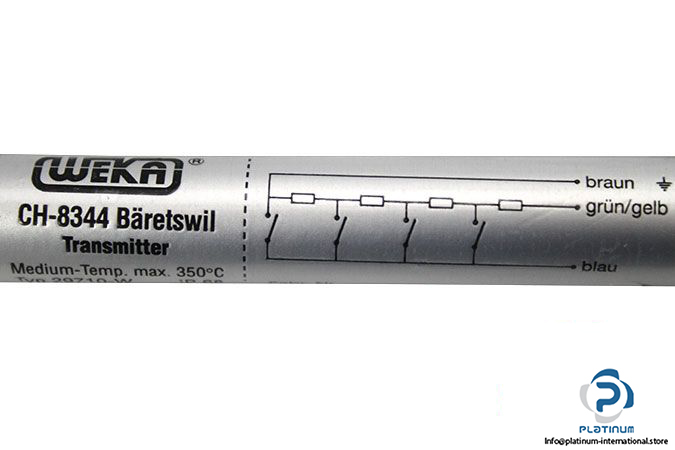

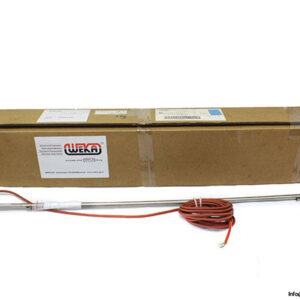

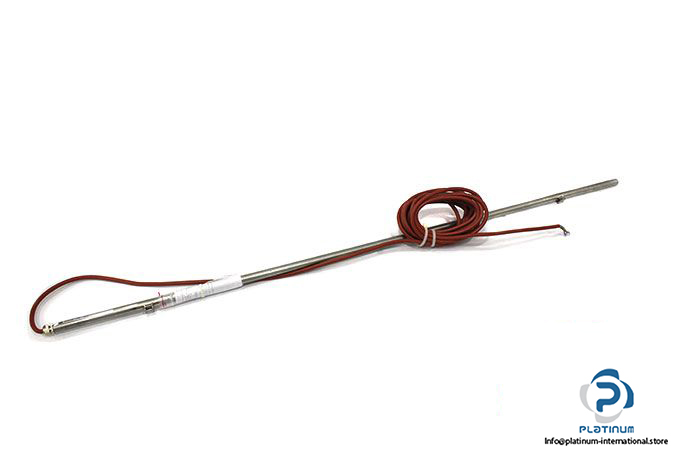

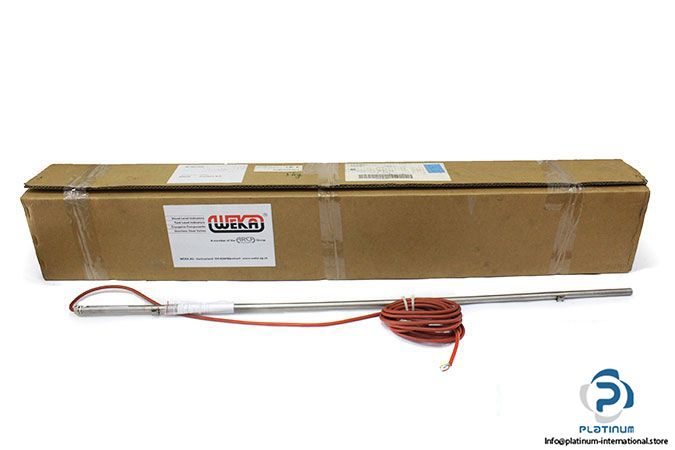

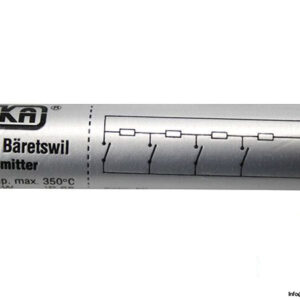

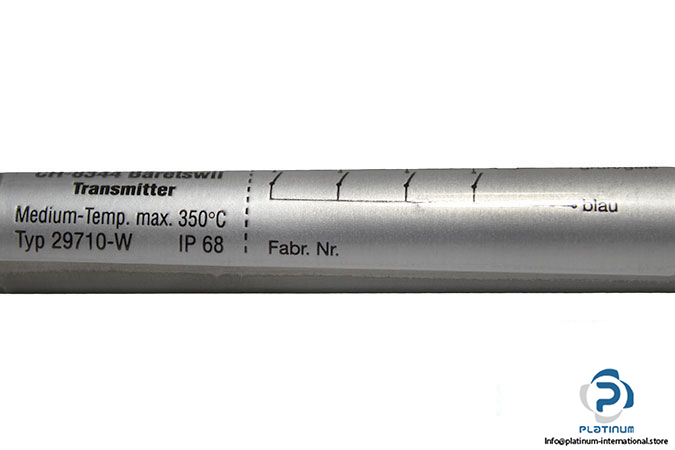

Weka 29710-W-010-10 Transmitter

Manufacturer: WEKA

Type: THREE-WIRE TRANSMITTER FOR HIGH MEDIA TEMPERATURE

Model: 29710-W-010-10

Order No.: 204539/10



Material:

  Housing: Stainless steel 316 / 316L

  Cable gland: Brass, nickel plated

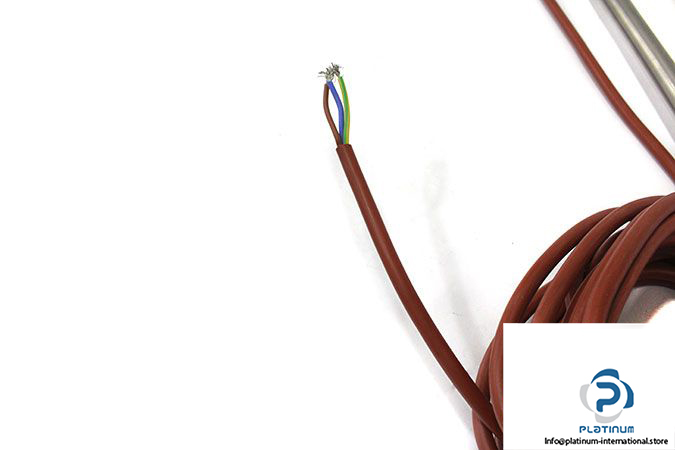

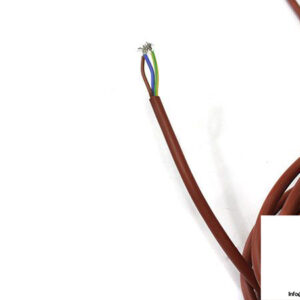

  Cable (Standard 5m): Silicone

Transmitter diameter: 14 mm

Transmitter Length: approx. 1100 mm

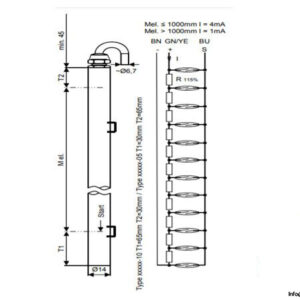

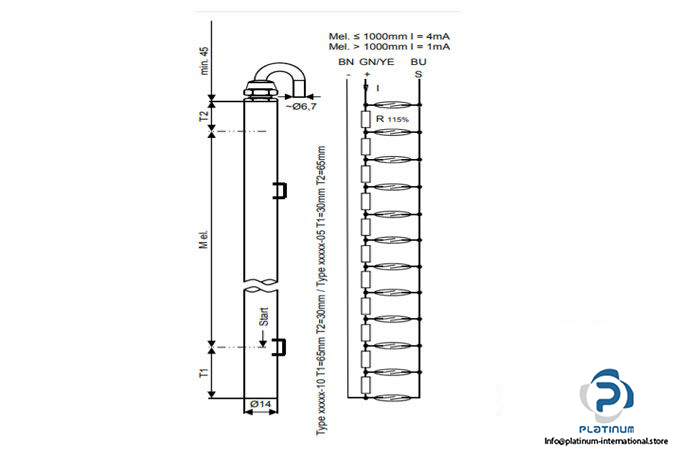

Length between process connections ( L ): 1000 mm

M = Measuring length (indication length) of level indicator

M el. = Measuring length of transmitter

Signal output:

with R = 10Ω and I = 1mA, 10mV per step (1cm)

with R = 10Ω and I = 4mA, 40mV per step (1cm)

Supply Current:

M el. ≤ 1000mm, I = 4mA

M el. > 1000mm, I = 1mA

Size of resistance: 10 Ohm per step

Measuring length: 200 … 4000 mm

Resolution: 10 mm

Protection Class: IP68

Ambient Temperature: -20 … 50 °C

Media Temperature: -50 … 350 °C

Weight: 1.14 kg
