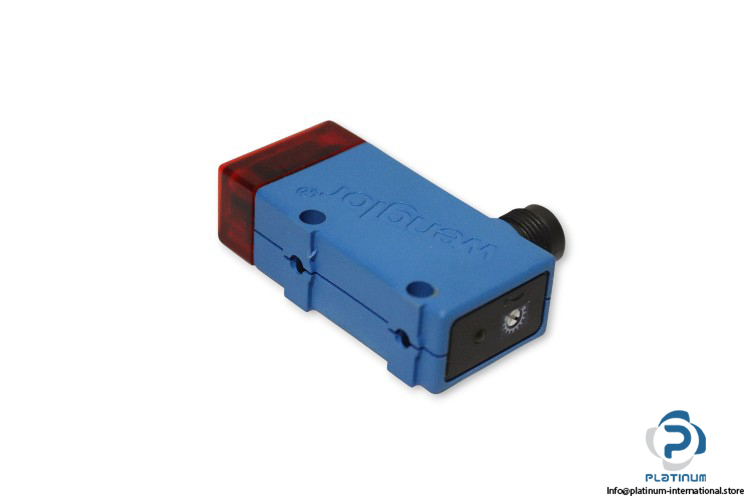

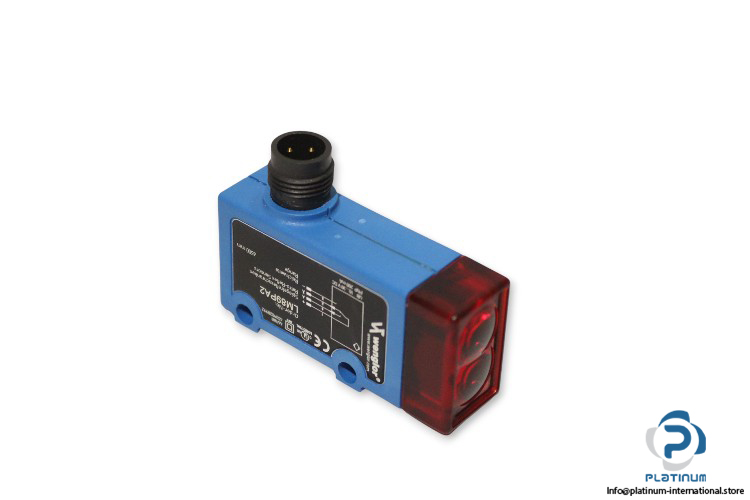

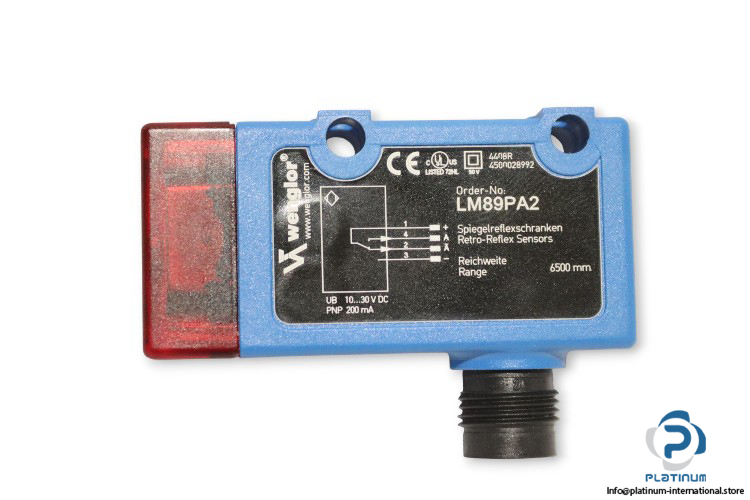

Wenglor LM89PA2 Retro Reflective Sensor
The Wenglor LM89PA2 Retro-Reflective Sensor is a high-performance optical sensor designed for reliable object detection using a red light source. With a long sensing range and durable housing, it ensures precise operation in demanding industrial environments.
Manufacturer: Wenglor
Type: Retro-Reflective Sensor
Model: LM89PA2
Part No.: 4500028992
| Sensing Range | 6,500 mm |
| Housing Design (Light Emission) | Rectangular |
| Opening Angle | 5° |
| Setting Method | Potentiometer |
| Light Source | Red Light |
| Operating Voltage | 10 / 30 V DC |
| Switching Output | PNP NO |
| Output Current | 200 mA |

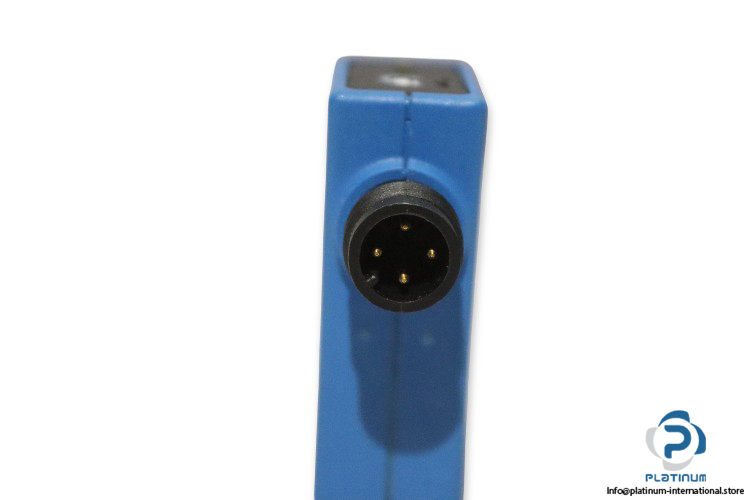

| Connection Type | Male Connector 1xM12, 4-pin |
| Switching Mode | Light / Dark Switching |
| Material | Plastic, PBT |
| Protection Class | IP67 |
| Operating Temperature | -10 ... 60 °C |
| Dimensions (W x H x D) | 22.4 x 12.4 x 54.5 mm |
