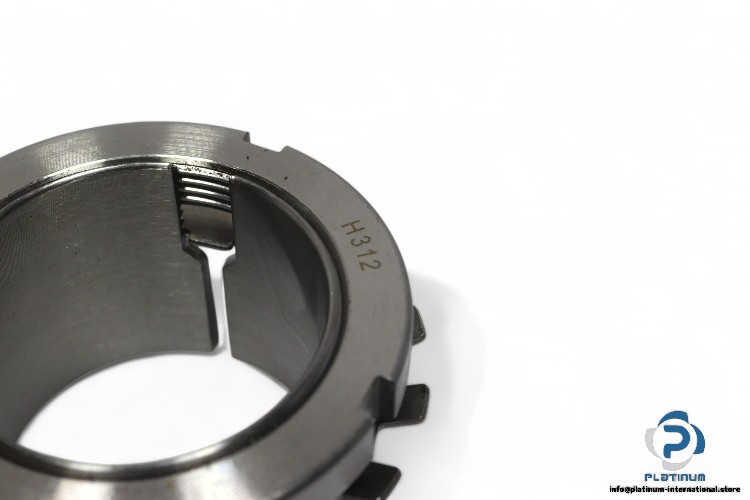

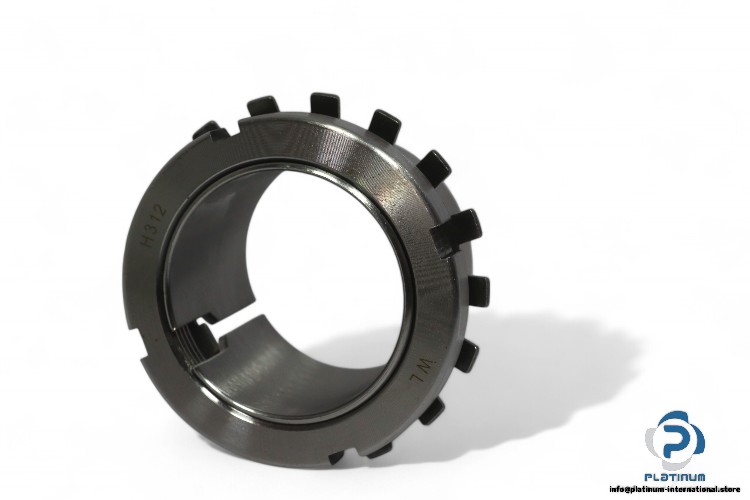

WL H 312 Adapter Sleeve
WL H312 Adapter Sleeve
The WL H312 Adapter Sleeve is designed for mounting bearings with a tapered bore onto a cylindrical shaft. This adapter sleeve offers a reliable and secure fit, making it ideal for high-performance applications that require stability and precision.
Manufacturer: WL
Type: ADAPTER SLEEVE
Model: H312
This WL adapter sleeve is built to facilitate the easy mounting of tapered bore bearings, providing a secure connection with the shaft while offering efficient operation in a wide variety of industrial applications.
| Bore Diameter | 55 mm |
| Outside Diameter (Small Taper) | 60 mm |
| Outer Diameter (Lock Nut) | 80 mm |
| Sleeve Length | 47 mm |
| Width Lock Nut Including Lock Washer | 13 mm |
