POWER SUPPLY MODULE
The X67PS1300 compact power supply module delivers 24 VDC input with 15 W output power, 0.75 A nominal current, and electrically isolated X2X Link supply. Compact design with robust housing ensures reliable performance in automation systems.0.75A15W24VDCAutomationCompactControlElectricallyIndustrialIsolatedModulePowerSeriessupplySystemX67X67PS1300
방대한 재고
글로벌 배송
전문 지원
품질 보장

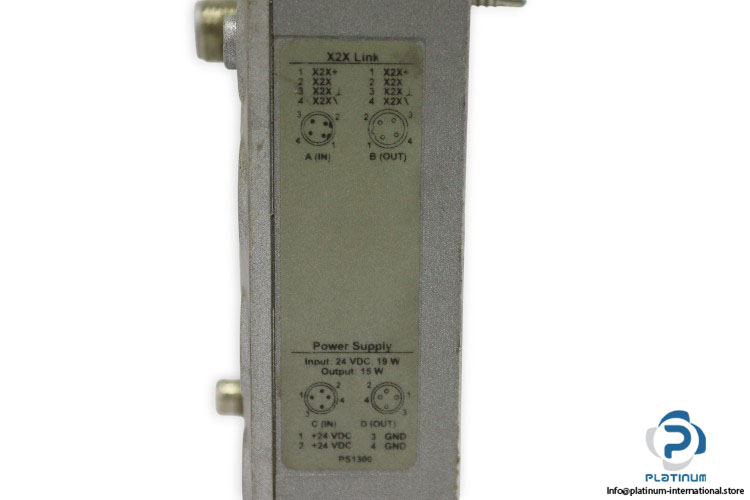

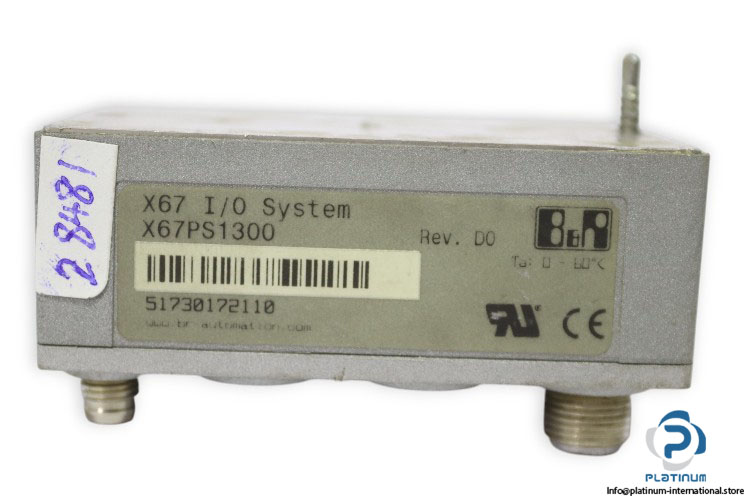

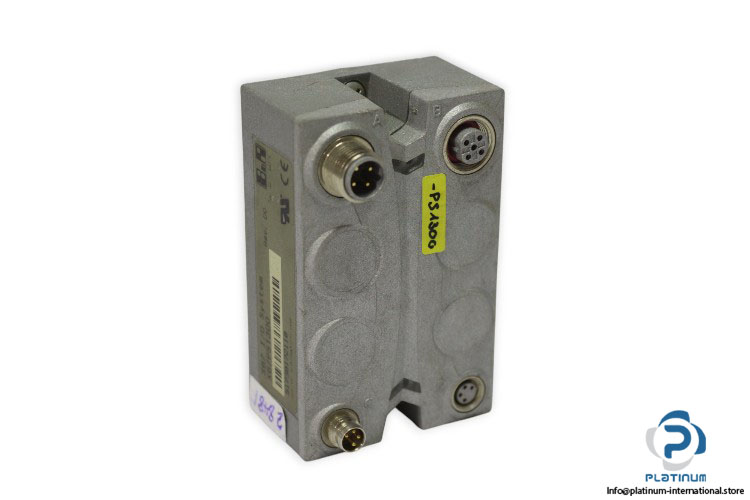

X67PS1300 COMPACT POWER SUPPLY MODULE
The X67PS1300 is a compact power supply module from the X67 series, designed for reliable performance in automation and control applications. It features electrically isolated X2X Link power supply with efficient power management in a robust housing.
Type: Compact Power Supply Module
Series: X67
Model: X67PS1300
MRN: 51730172110
| System Power Supply | Electrically isolated X2X Link power supply |
| Connection Type | X2X Link power supply output M12, B-keyed / X2X Link power supply input M8, 4-pin |
| Power Consumption (Internal) | 3 W |
| Input Voltage | 24 VDC |
| Voltage Range | 18 to 30 VDC |
| Nominal Voltage | 20 VDC |
| Nominal Current | 0.75 A |
| Nominal Output Power | 15 W |
| Operating Temperature | -25 to 60 °C |
| Dimensions | Width 53 mm, Height 85 mm, Depth 42 mm |
