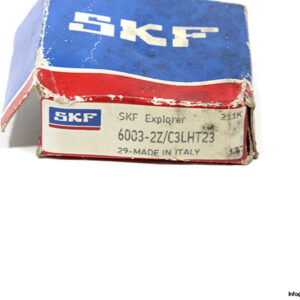

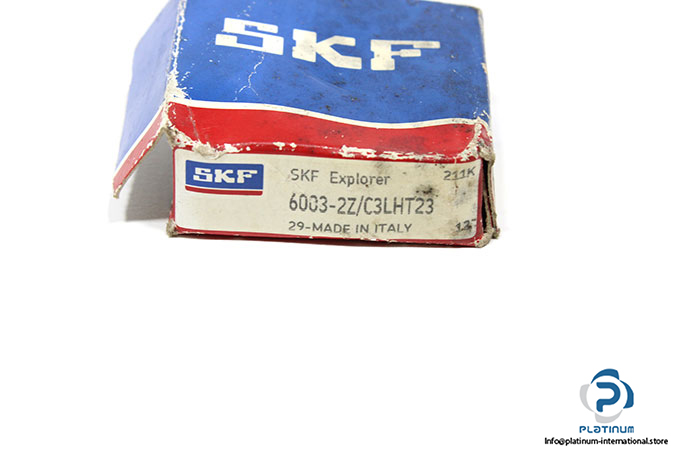

SKF 6003-2Z/C3LHT23 Deep Groove Ball Bearing
New
In stock2 unitsReady to ship
Deep Groove Ball Bearing
SKF 6003-2Z/C3LHT23 deep groove ball bearing with C3 internal clearance, double metal shields, and lithium-based LHT23 grease for high-speed and elevated temperature operation. Recommended for electric motors, pumps, and industrial machinery operating under thermal expansion conditions.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 6003-2Z/C3LHT23 Deep Groove Ball Bearing
The SKF 6003-2Z/C3LHT23 deep groove ball bearing is engineered for high-speed operation, enhanced thermal stability, and reliable performance in demanding industrial environments.
Manufacturer: SKF
Type: Deep Groove Ball Bearing
Model: 6003-2Z/C3LHT23
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter | 17 mm |
| Outside Diameter | 35 mm |
| Width | 10 mm |
| Basic Dynamic Load Rating | 6.37 kN |
| Basic Static Load Rating | 3.25 kN |
| Reference Speed | 45000 r/min |
| Limiting Speed | 22000 r/min |
| Bore Type | Cylindrical |
| Cage | Sheet Metal |
| Sealing | 2Z, Non-contact Shield on Both Sides |
| Clearance | C3 |
| Grease Type | LHT23, Lithium-based, Wide-temperature Range Grease |
