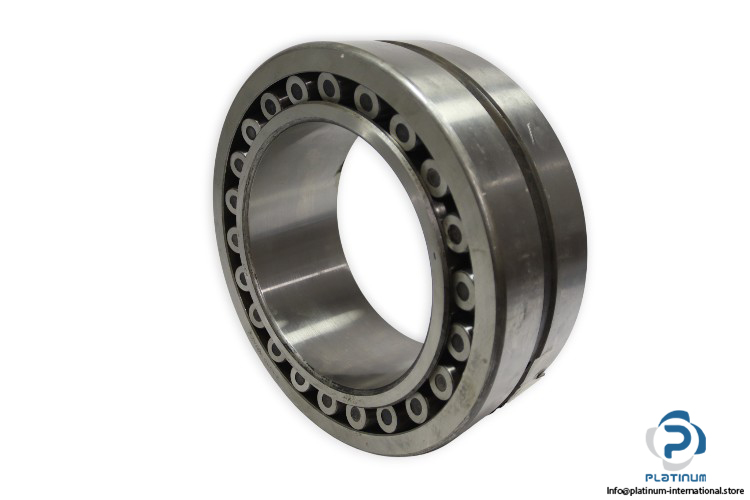

Spherical Roller Bearing 24040 K30/W33C3
A heavy-duty spherical roller bearing designed to accommodate high radial loads and moderate axial loads in both directions. This bearing features a tapered bore with a 1:30 taper ratio, advanced lubrication provisions, and increased internal clearance, making it suitable for demanding industrial applications with misalignment and heavy load conditions.
Type: Spherical Roller Bearing
Model: 24040 K30/W33C3
Application:
Heavy-duty rotating machinery, industrial gearboxes, rolling mills, conveyors, mining equipment, and applications requiring high load capacity, self-aligning capability, and reliable lubrication under harsh operating conditions
| Bore Diameter (d) | 200 mm |
| Outer Diameter (D) | 310 mm |
| Width (B) | 109 mm |

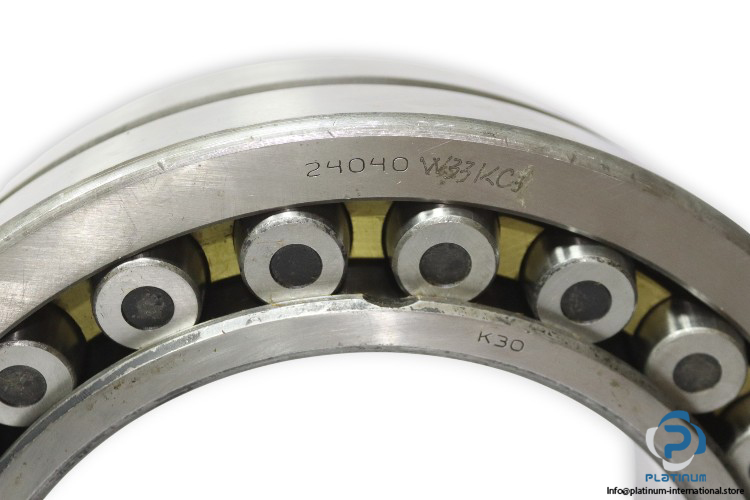

| Bore Type | K30, Tapered Bore with a 1:30 Taper Ratio |
| Lubrication | W33, 3 Lubrication Holes (Equally Spaced) and a Lubrication Groove on the Outer Ring |
| Clearance | C3 |

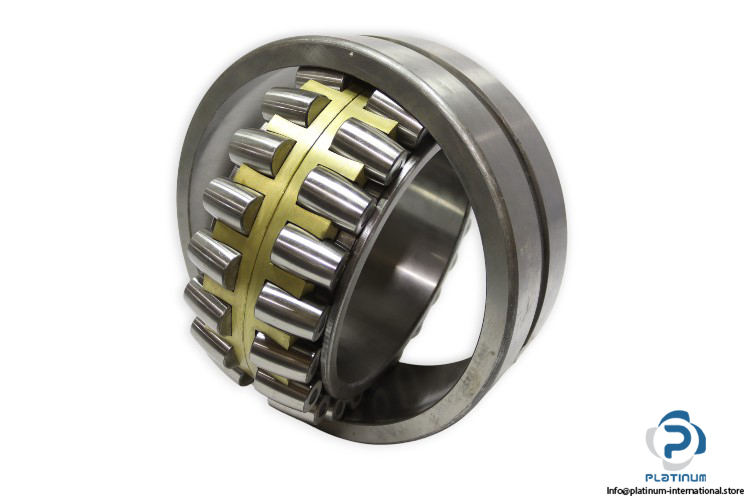

| Cage | Brass |
