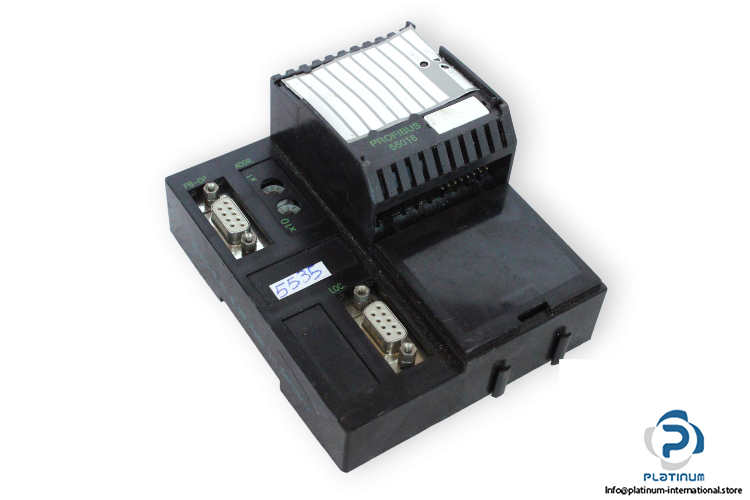

55018 Profibus Module

Type: Profibus Module

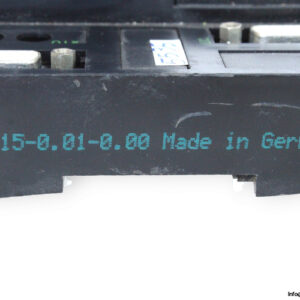

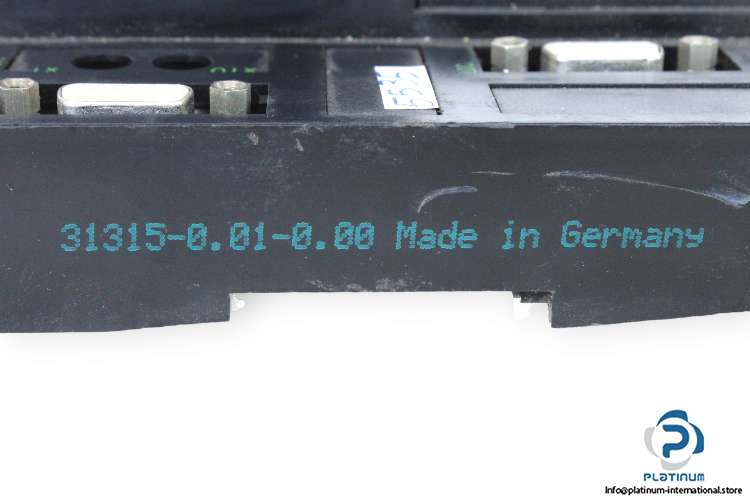

Part No.: 31315-0.01-0.00
Model: 55018

Supply voltage: 24 V DC (18…30.2 V DC) to EN 61131-2
Current usage min./max. approx.: 100 mA/1.3 A

Field bus

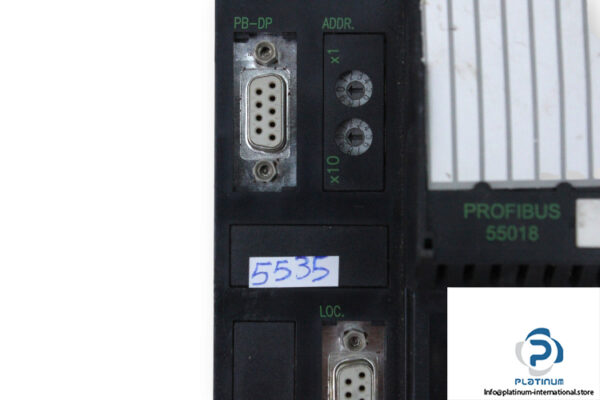

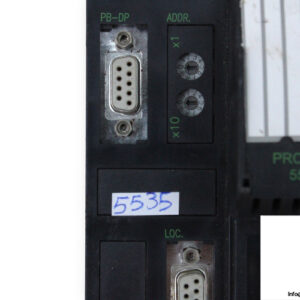

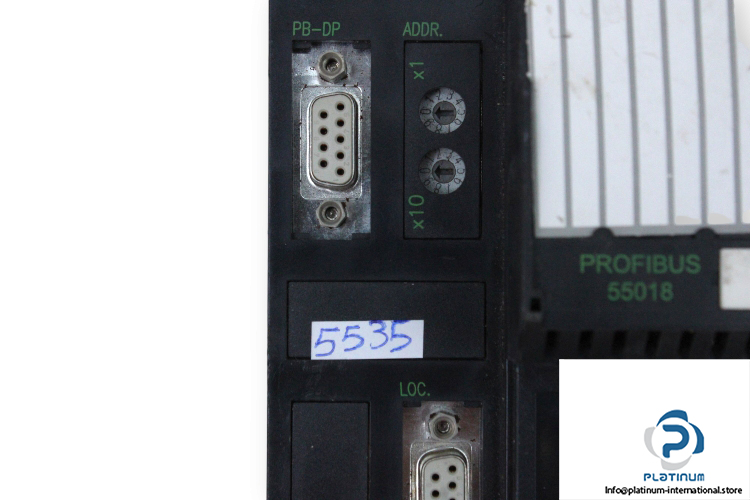

Connection: SUB-D 9-pole
Addressing: 1…99 via rotary switch
Data rate: 9.6 kBit/s…1.5(12) MBit/s
Galvanic separation: opto-coupler
Expansion interface
Capacity: up to 16 expansion modules 1)
Diagnostic
Status indicator: bus specific LEDs with label
General data
Temperature range: 0…+55 °C
Mounting method: DIN-rail mounting to EN60715
Dimensions H x W x D: 116 x 96 x 60 mm
