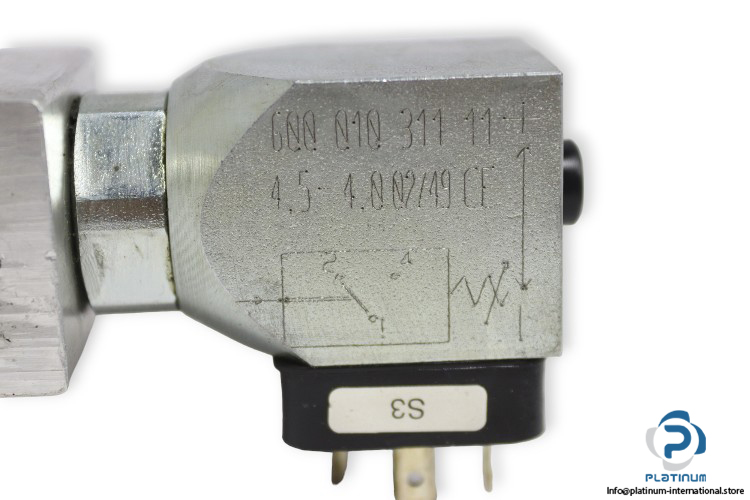

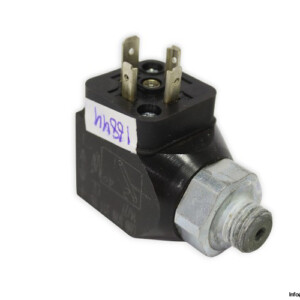

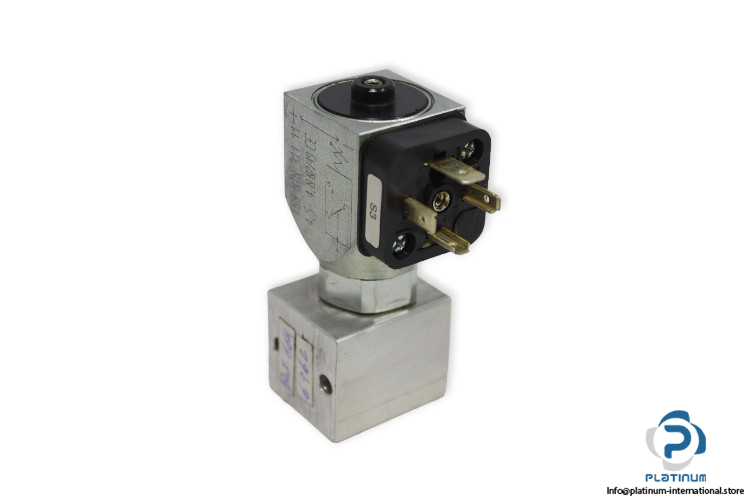

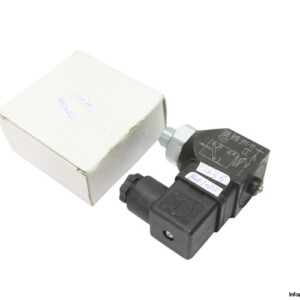

600 010 311 11 Pressure Switch With Manifold Block

Pressure Switch Model 60001031111

The Pressure Switch Model 60001031111 is a reliable and robust device designed to monitor and control pressure in various industrial applications. Made of galvanized steel, it features a changeover contact, and its compact design allows for 360° rotation, offering versatile installation options. With a wide setting range of 1 to 10 bar and a high overload capacity of 20 bar, this switch ensures optimal performance under various conditions.

Type: Pressure Switch

Model: 60001031111

Technical Data:

• Contact: Changeover
• Materials: Galvanized steel
• Connection: G 1/4
• Rotatable: 360°
• Setting Range: 1 … 10 bar
• Overload Capacity Max.: 20 bar
• Medium Temperature Max.: +60°C
• Ambient Temperature: -25 … +85°C
• Protection Class: IP65 according to EN 60529
• Switching Voltage Max.: 250V
• Switching Cycles: 10^6 switching cycles
• Application Area: Compressed air, hydraulics, oil emulsions, water
• Switching Frequency: 200/min
