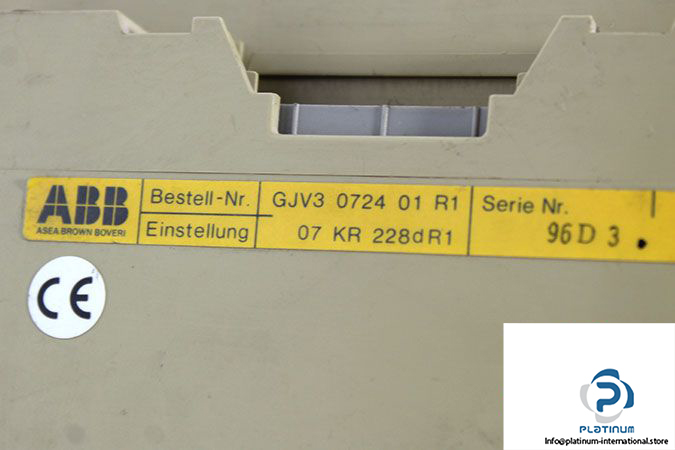

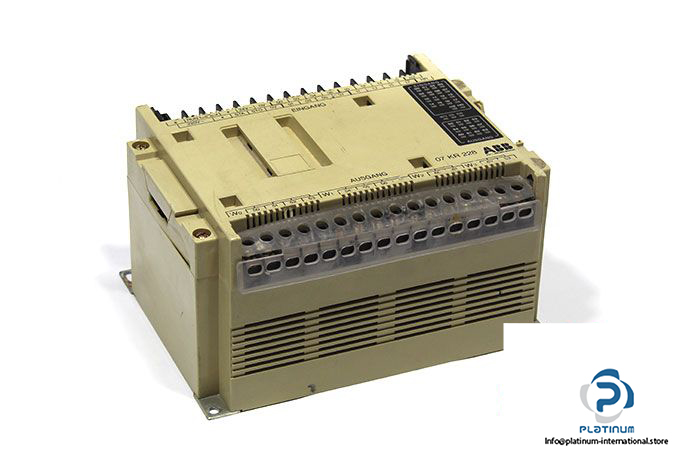

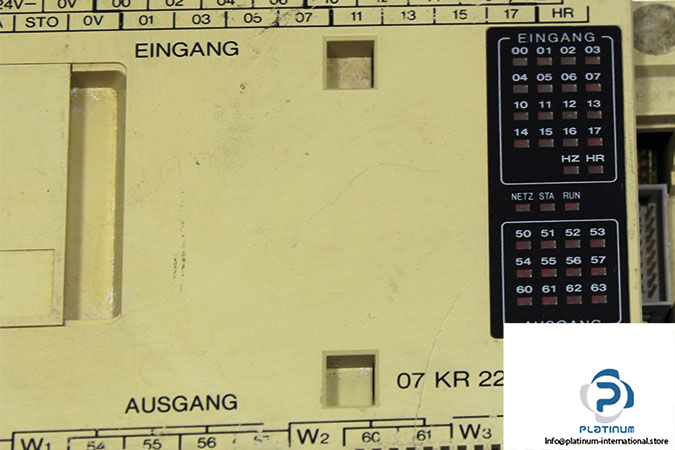

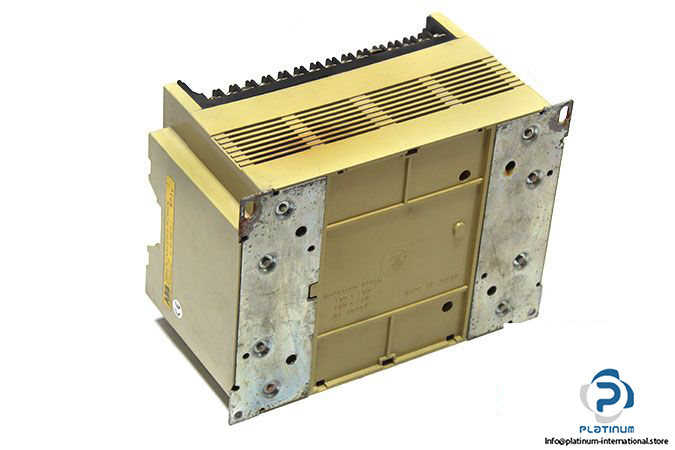

ABB 07 KR 228 dR1 GJV3 0724 01 R1 PROGRAMMABLE CONTROLLER

Manufacturer: ABB

Type: Programmable Controller

Model: GJV3 0724 01 R1

MRN: 07 KR 228dR1

Supply Voltage: 230 V AC

Supply Voltage of Inputs: 24 VDC

Frequency: 50/60 Hz

Power Consumption: 28 VA Without Programming Unit

No of Inputs: 16

No of Outputs: 12

Integrated User Program Memory: 1 K EEPROM (950 Words)

Externally Plugged for Program Storage: 2 K EEPROM or 2 K EPROM (1970 Words)

Cycle Time (bit): Typically 5 ms/K Instruction

Timers: 40

Time Range: 0.01…999 s

Programming: with Miniature Programming Unit, with IBM PC or Compatible PC Via 07 PG 201

Connection: Screw Terminals

Ambient Operating Temperature: 0…55 °C

Dimensions: 190 x 140 x 102 mm

Weight: 1.29 kg
