ABB A16-30-10 220-230VAC 50Hz / 230-240VAC 60Hz CONTACTOR
New
In stock1 unitReady to ship
Contactor
ABB A16-30-10 industrial contactor with 30 A rated current, 690 V operational voltage, 4-pole configuration, and AC-3 motor control up to 9 kW.1SBL181001R80304690aA16A16-30-10ABBACAC-3ContactorControlElectricalIndustrialmotorPolePowerSwitchingV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

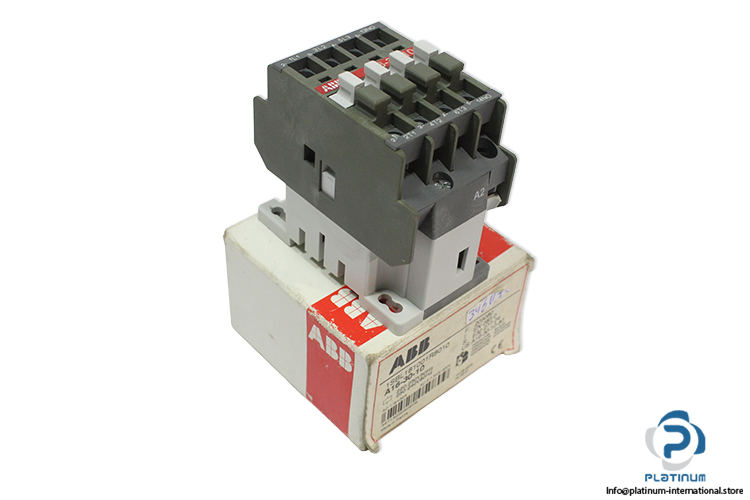

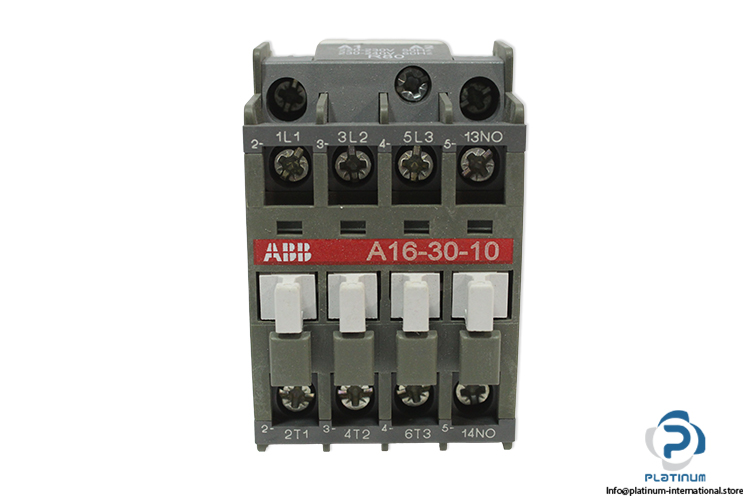

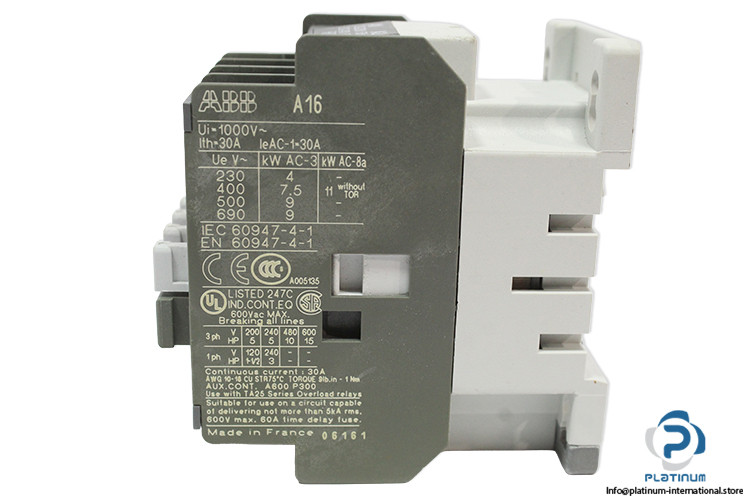

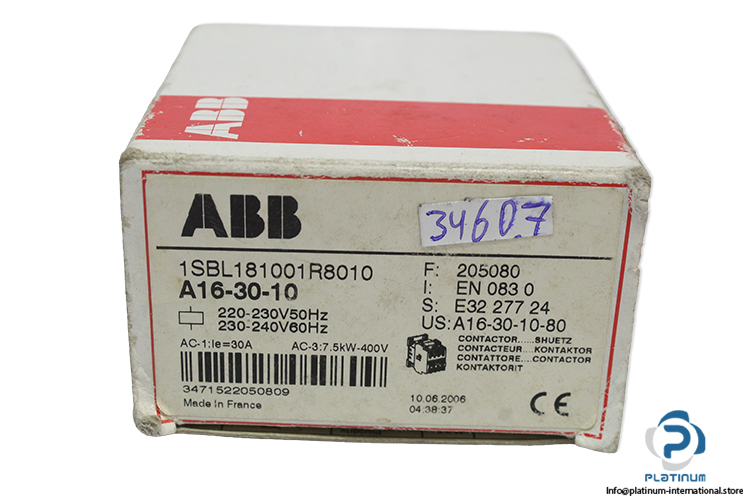

ABB A16-30-10 Contactor
The ABB A16-30-10 is a compact industrial contactor designed for reliable switching and control of electric motors and power circuits in industrial automation systems.
Manufacturer: ABB
Type: Contactor
Model: A16-30-10
ID No.: 1SBL181001R8010
Power AC-3:

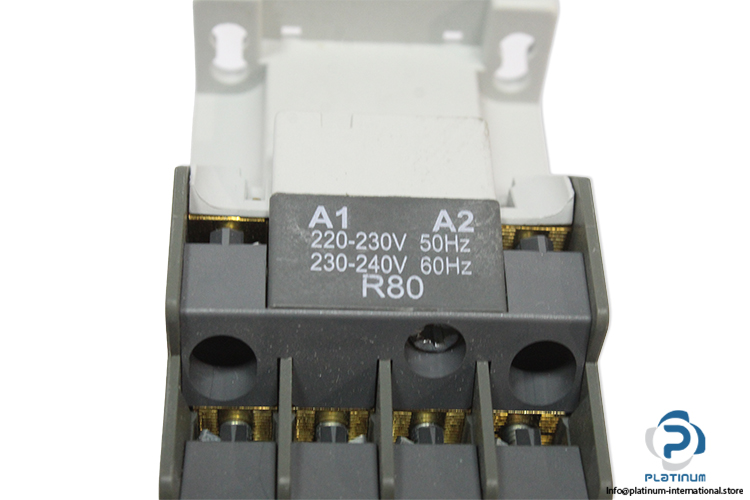

| Rated Coil Voltage | 220-230 VAC, 50 Hz / 230-240 VAC, 60 Hz |
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current | 30 A |
| Rated Thermal Current | 30 A |
| Frequency | 50 / 60 Hz |
| 230 V AC | 4 kW |
| 400 V AC | 7.5 kW |
| 500 V AC | 9 kW |
| 690 V AC | 9 kW |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Impulse Voltage (Uimp) | 8 kV |
| Poles No. | 4-Pole |
| Auxiliary Contact | 1-Pole 1 Normally Open (NO) |
| Protection Class | IP20 |
| Ambient Temperature | -25 / 55 °C |
| Dimensions | 44 X 74 X 74 mm |
