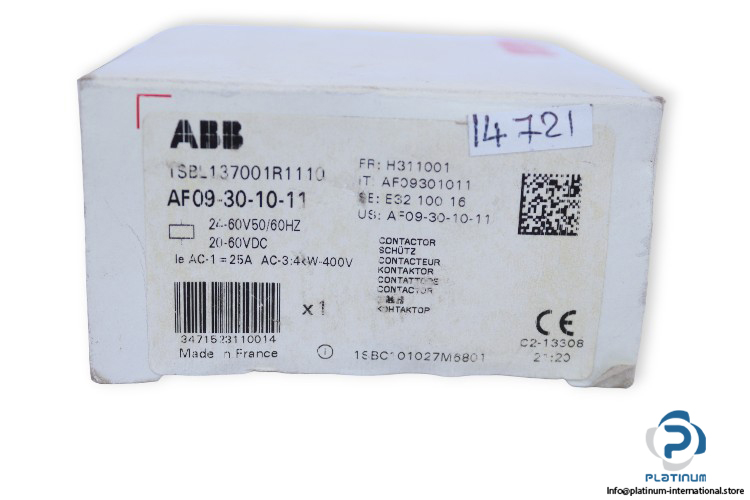

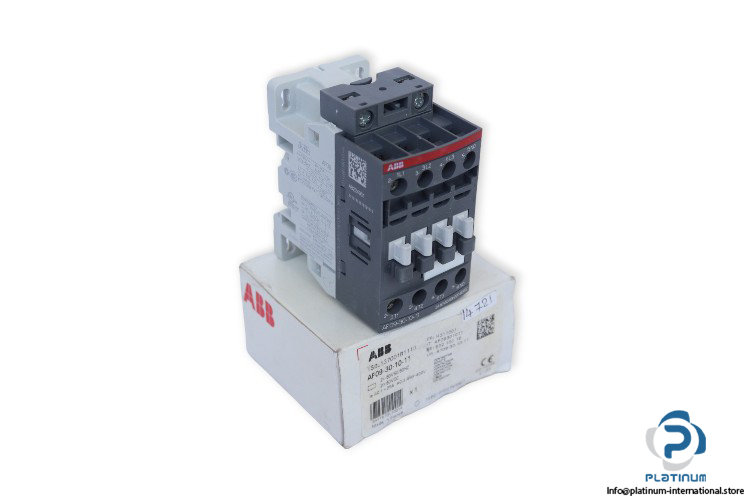

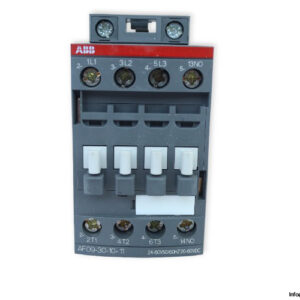

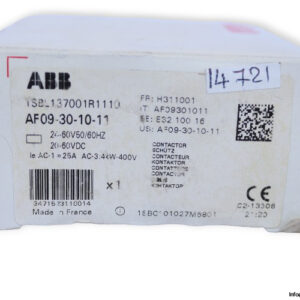

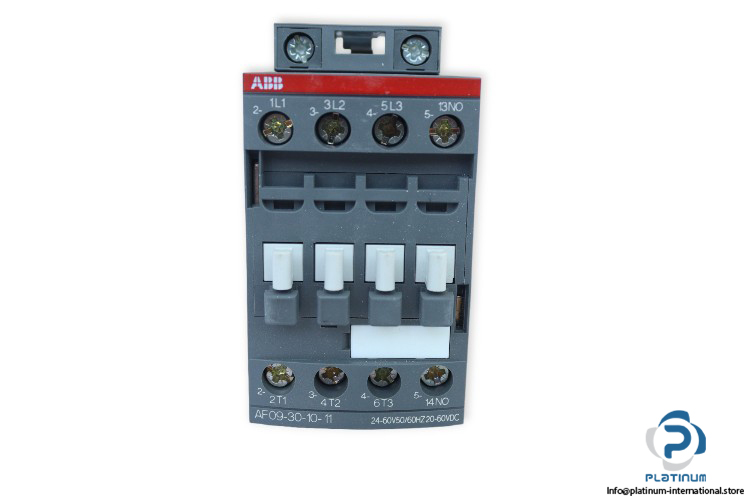

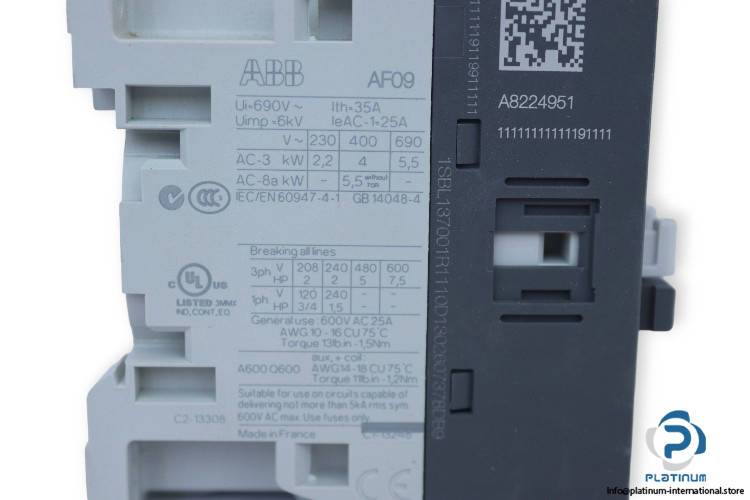

ABB AF09-30-10-11 Contactor

Manufacturer: Abb
Type: Contactor
Model: AF09301011

Rated Control Circuit Voltage (Uc):
24 … 60 V,50 Hz
24 … 60 V, 60 Hz
Operation Voltage: 20 … 60 V DC
Insulation voltage: 690 V AC
Rated Operational Voltage: 690 V AC
Rated Operational Current AC-1: 25 A
Rated Thermal Current Ith: 35 A
Frequency: 50/60 Hz
Power AC-3:
230 V AC: 2.2 kW
400 V AC: 4 kW
690 V AC: 5.5 kW
Standard: IEC/EN 60947-4-1,GB 14048-4
Mounting by Screws (not supplied): 2 x M4 screws placed diagonally
Rated Impulse Voltage (Uimp): 6 kV
No. of Poles: 4-Pole
Auxiliary Contact: 1 Normally Open (NO)
Protection Class: IP20
Dimensions: 77 x 45 x 86 mm
