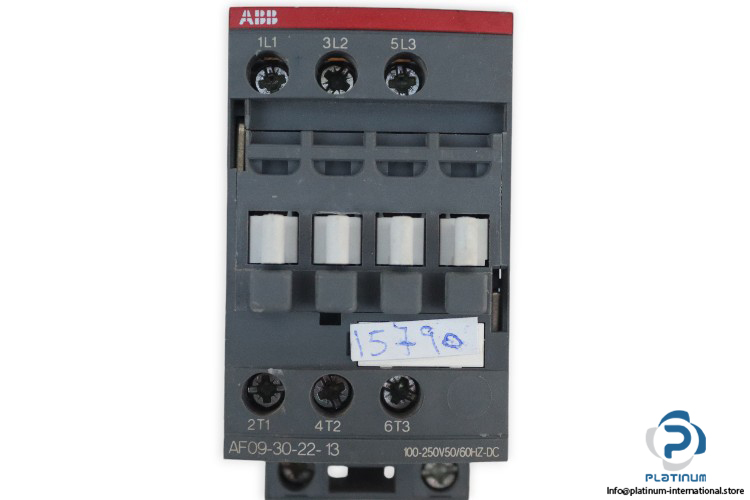

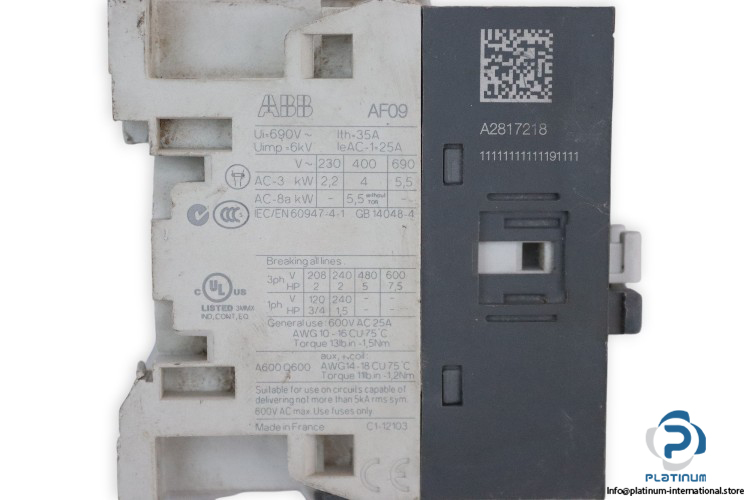

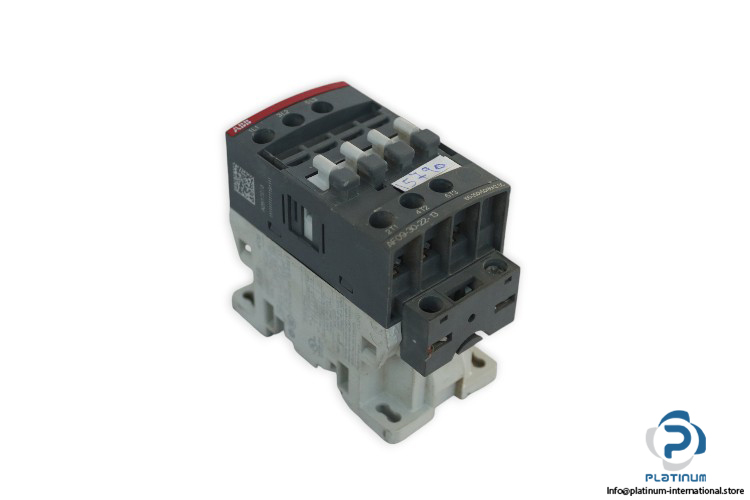

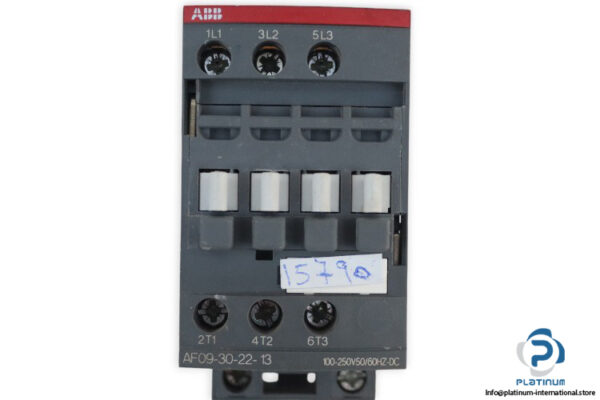

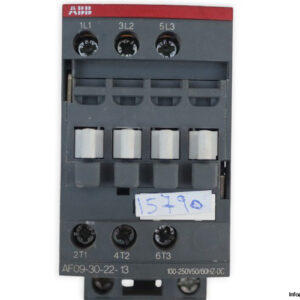

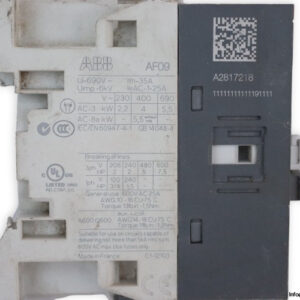

ABB AF09-30-22-13 Contactor

Manufacturer: ABB
Type: Contactor
Model: AF09302213
Series: AF09

Coil Voltage: 100-250 V,50/60HZ-DC
Contact Configuration: 2 Normally Closed, 2 Normally Open
Thermal Current Ith: 35 A
Rated current Ie (AC-1): 25 A
Rated impulse with stand voltage Uimp: 6 kV
Insulation Voltage Ui: 690 V AC
Power AC-3: 4 kW@400 V AC
Power AC-8a: 5.5 kW@400 V AC
Standard: IEC/EN 60947-4-1 , GB 14048-4
General use: 600 V AC,25 A
No. of poles: 3
Terminal Type: Screw Terminals
Dimensions: 45 x 110.5 x 86 mm
