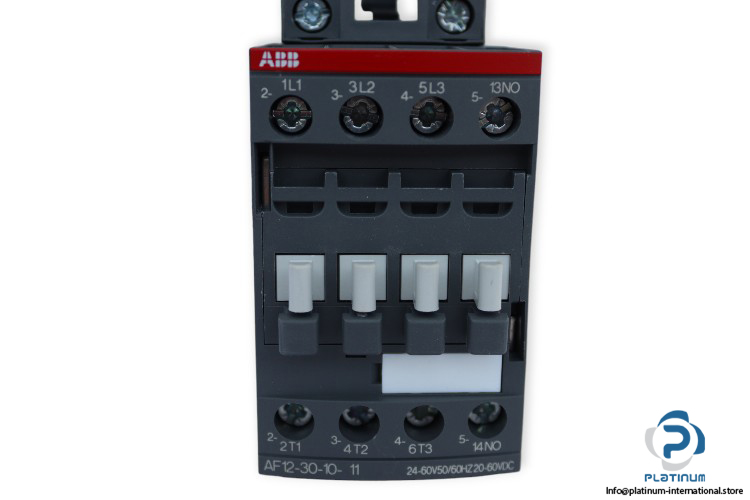

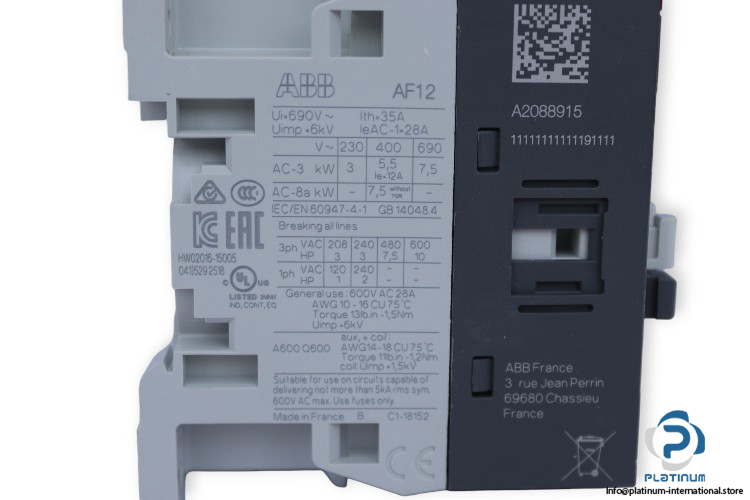

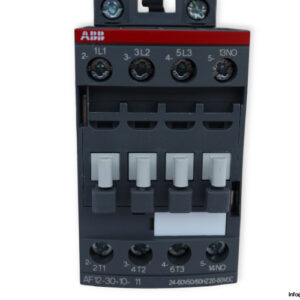

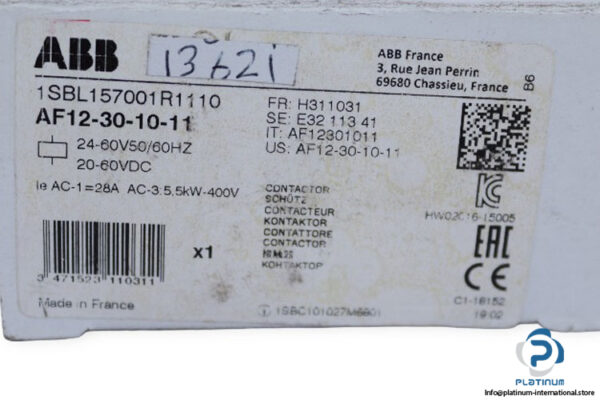

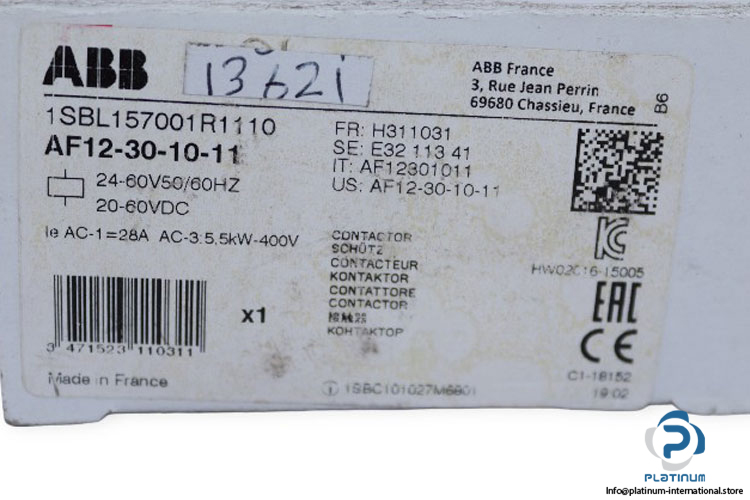

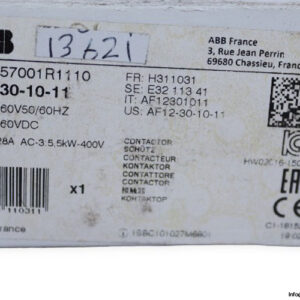

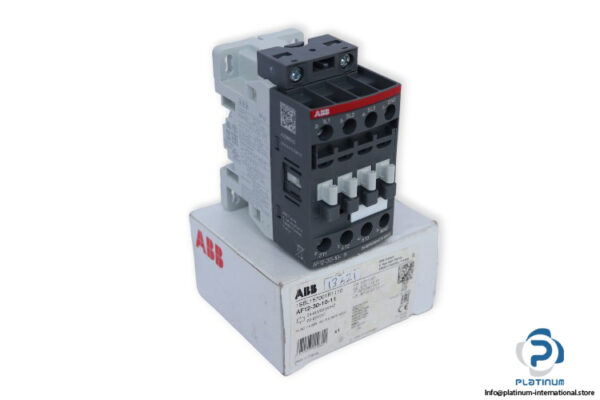

ABB AF12-30-10-11 Contactor
ABB AF12301011 Contactor High-quality industrial contactor designed for efficient motor control. Features 24-60V AC/DC coil voltage, 35A thermal current, and IP20 protection, ensuring durability and reliability.
ABB AF12301011 Contactor
The ABB AF12301011 is a high-performance industrial contactor designed for efficient control of electrical circuits. It is engineered to handle high currents with exceptional reliability, making it ideal for industrial automation and motor control applications.
Key Details:
Manufacturer: ABB
Type: Contactor
Model: AF12301011
ID No.: 1SBL157001R1110
EAN: 3471523110311
The ABB AF12301011 contactor is an ideal solution for industrial motor control applications, providing high durability, reliability, and compliance with international standards.
| Coil Voltage | 24 to 60 V AC/DC |
| Frequency | 50/60 Hz |
| Conventional Free-air Thermal Current (Ith) | 35 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Insulation Voltage (Ui) | 690 V AC |
| Thermal Current (Ith) | 35 A |
| Rated Operational Current AC-1 (Ie) | 28 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 5.5 kW |
| Rated Operational Power AC-8a (Pe) | (400 V) 7.5 kW |
| Auxiliary Contacts | 1 Normally Open |
| Number of Poles | 2 |
| Terminal Type | Screw Terminals |
| General Use Rating UL/CSA | (600 V AC) 28 A |
| Protection Class | IP20 |
| Ambient Air Temperature | -25 to 60 °C |
| Standards | IEC/EN 60947-4-1, GB14048.4 |
| Dimensions | 45 x 77 x 86 mm |
