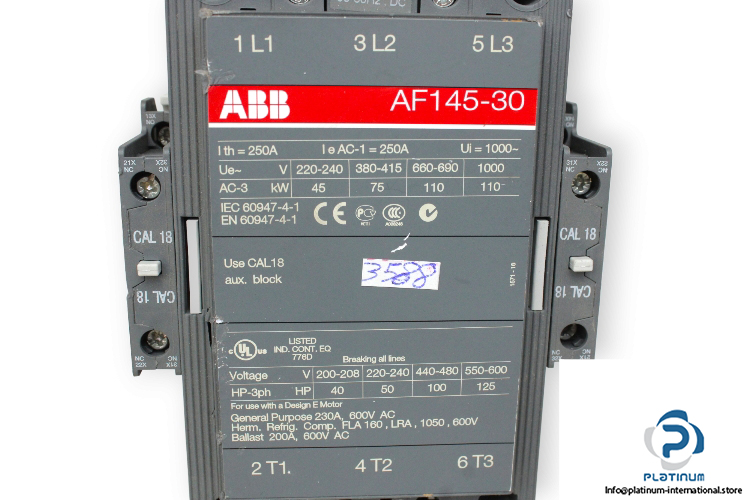

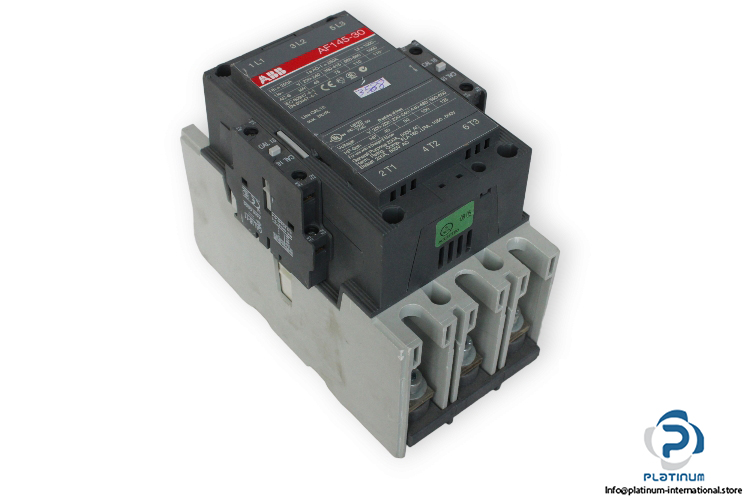

ABB AF145-30 Power Contactor

Manufacturer: Abb
Type: Power Contactor
Model: AF14530

Number of Poles: 3 Poles
Rated Insulation Voltage: 1000 V DC
Current: 250 A
Power: 75 kW (400 V)/ 45 …. 110 kW (220 … 1000 V AC)
Coil Voltage: 100 … 250 V DC
Frequency: 50 … 60 Hz
Terminal Kit Type: ATK185
Thermal Current: 250 A
Insulation Voltage: 1000 V AC

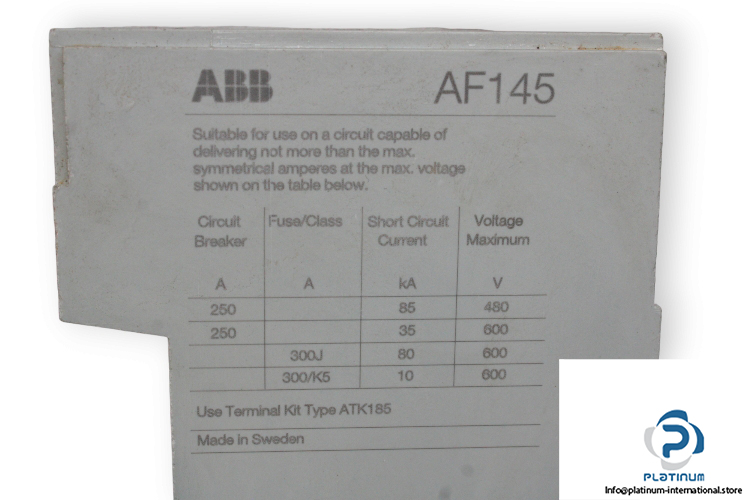

Short Circuit Current: 85 … 10 kW
Circuit Max. Voltage: 480 … 600 V

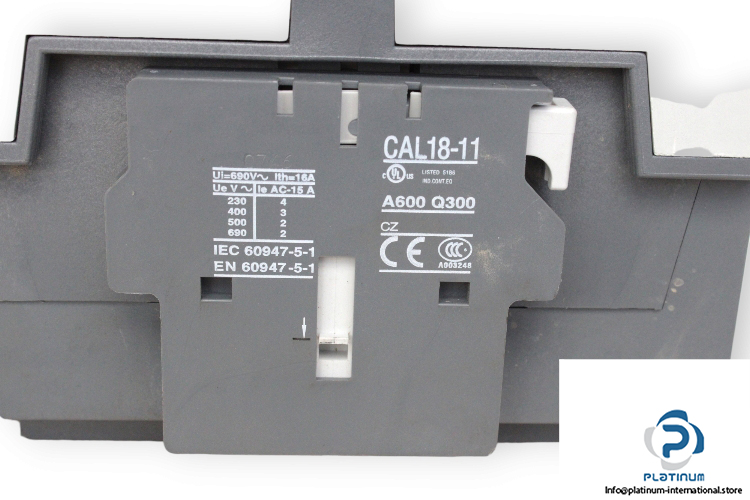

ABB CAL18-11 AUXILIARY CONTACT BLOCK

Manufacturer: Abb
Type: Auxiliary Contact Block
Model: CAL1811
EAN: 7320500256305

Number of Auxiliary: 2
Auxiliary Contact: 2 Normally open, 2 Normally Closed
Contact Voltage: 230 … 690 V AC
Contact Current: 4 … 2 A
Rated Insulation Voltage: 690 V AC
Thermal Current: 16 A
Dimension: 64.5 X 74 X 17.1 mm
Protection Degree: IP20
