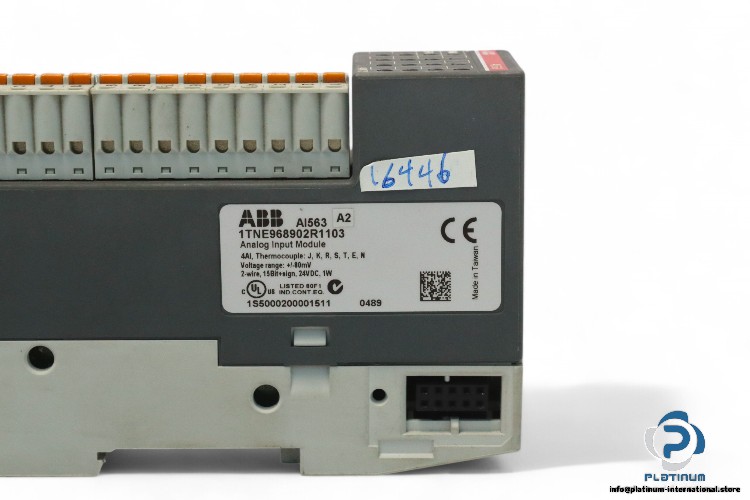

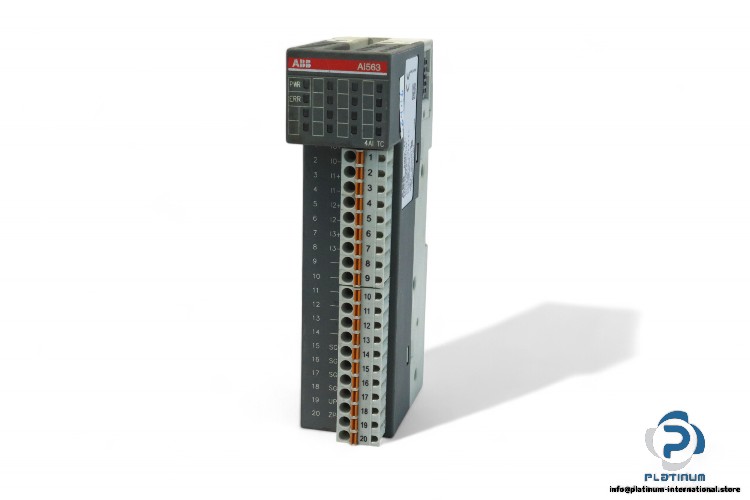

ABB AI563 Analog Input Module

Name: ABB AI563 ANALOG INPUT MODULE
SKU: 1059153
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

Manufacturer:

ABB

Type:

ANALOG INPUT MODULE

Model:

AI563

Part no.:

1TNE968902R1103

Manufacturer

ABB

SKU

1059153

Category

PLC Modules

Condition

Used

ABB Analog Input Module PLCs

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: ABB
Type: ANALOG INPUT MODULE
Model: AI563
Part no.: 1TNE968902R1103

Connections Terminal: 19 for UP (+24 V DC) and terminal 20 for
ZP (0 V)
Wiring method: Spring/screw terminals
Rated value: 24 V DC
Degree of protection: IP 20
Current consumption: 0.10 A
Wire loop resistance: 100 „¦
Mounting with screws: M4
Fastening torque: 1.2 Nm
Number of channels per module: 4 configurable thermocouple (TC) inputs
Operation temperature:
0 … 60 °C (horizontal mounting of modules)
0 … 40 °C (vertical mounting of modules)
