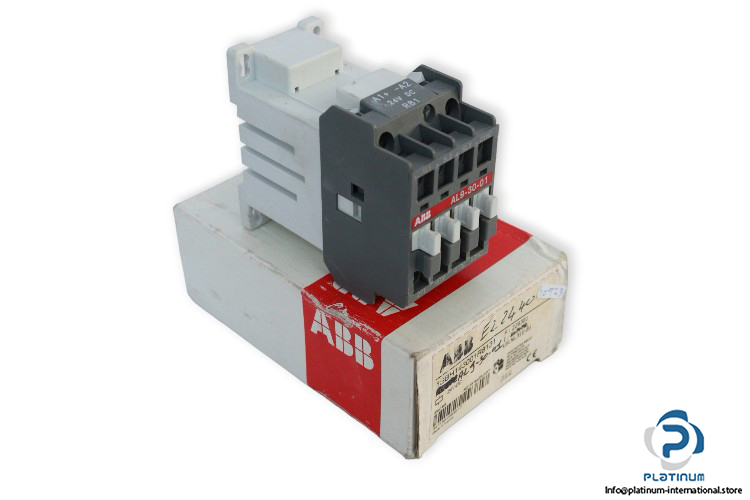

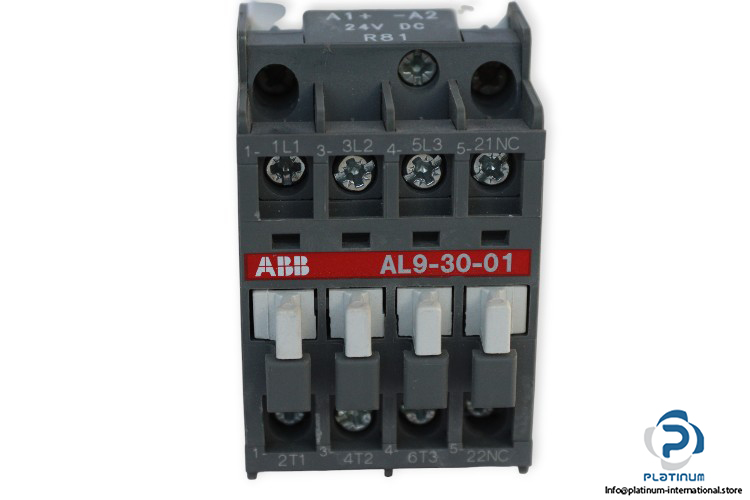

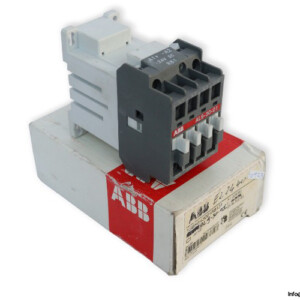

ABB AL9-30-01 Contactor Relay

Manufacture: Abb
Type: Contactor Relay
Model: AL9-30-01

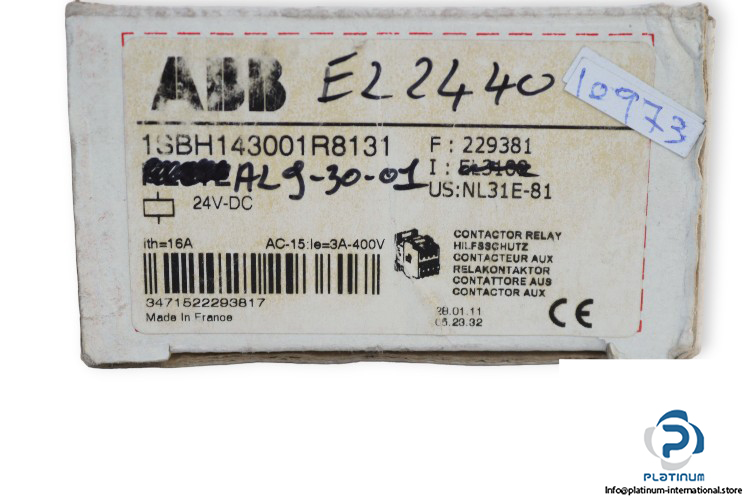

Product ID.: 1SBH143001R8131

Control Supply Voltage: 24 V DC
Contact: 1 Normally closed
Thermal current (Ith): 26 A
Rated current AC-15 (Ie): 3 A@400 V
Rated current AC-1 (Ie): 25 A
Rated power AC-3 (Pe): 4 kW@400 V

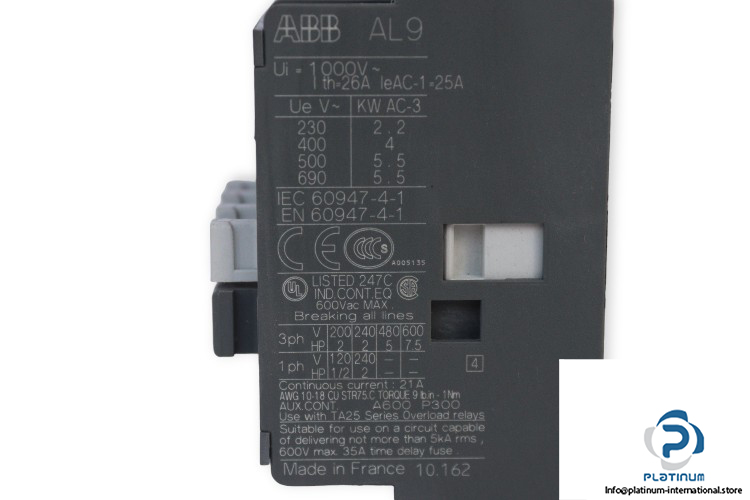

Standard: IEC/EN 60947-4-1
Rated insulation voltage (Ui): 1000 V AC
No. of poles: 3
Rated Impulse Withstand Voltage (Uimp): 8 kV
Terminal Type: Screw Terminals
Protection Class IP: IP20
Ambient Air Temperature Close to Contactor Fitted with Thermal O/L Relay: -25 … 55°C
Dimensions (W x D x H): 44 x 97 x 78 mm
