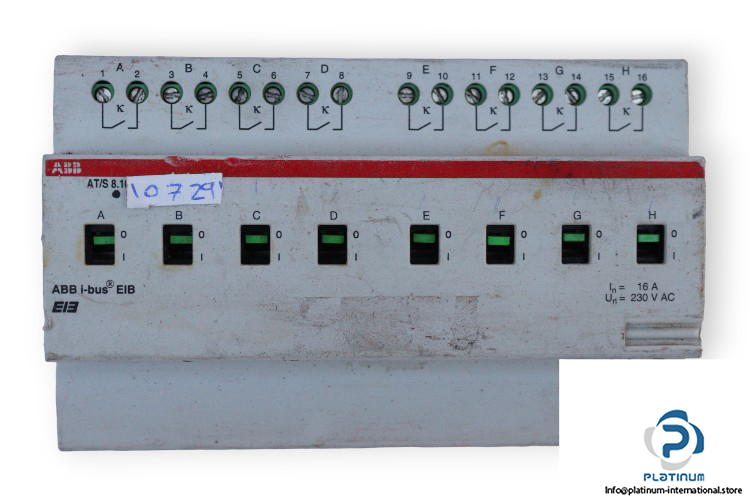

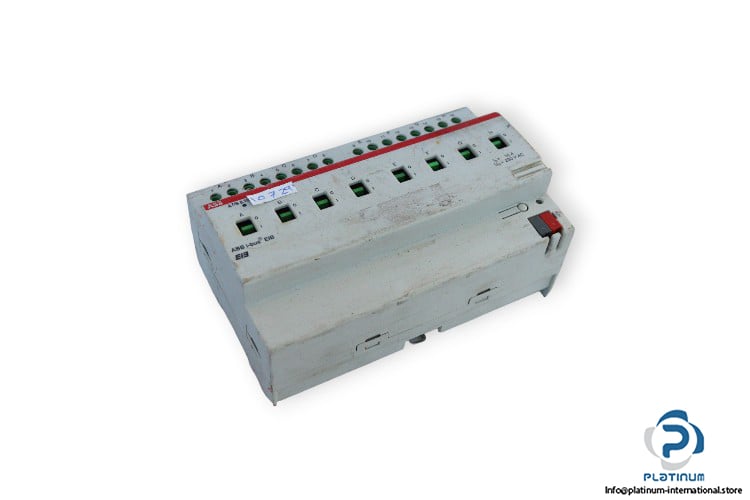

ABB AT/S 8.16.5 8-FOLD Switch Actuator

Manufacture: Abb
Type: 8-Fold Switch Actuator
Model: AT/S 8.16.5

Power supply: 24 VDC, via the Bus line
Outputs
No. of floating contacts: 8
– Switching voltage: 230 V AC / 400 V AC
– Switching current at 230 V AC max.: 16 A / AC1, 10 A / AC3
– Switching current at 400 V AC max.: 10 A / AC1, 6 A / AC3
– Switching current at, 5 V AC / DC min.: 480 mA
– Switching current at, 10 V AC / DC min.: 240 mA
– Switching current at 24 V AC / DC min.: 100 mA
– Max. switch-on-current max.: 500 A
– Power of capacitor max.: 200 µF
– Basic time delay typically: 20 ms per relay
Connections: Load circuit two screw terminals each, Wire range: (0,2 … 2,5 mm² finely-stranded), (0,2 … 4,0 mm² single-core)/ EIB Bus terminal (included with supply)
Type of protection: IP 20, EN 60 529
Housing, color: Plastic housing, grey
Ambient temperature Operation: -5 … 45 °C
Mounting: on 35 mm mounting rail, DIN EN 50022
Dimensions: 144 x 90 x 64 mm
