Motors & Drives Servo Motors

ABB 80.2C Asynchronous Motor

Name: ABB 80.2C ASYNCHRONOUS MOTOR
Brand: ABB
SKU: 712804
Availability: LimitedAvailability

tr-electronic-ce65m-absolute-encoder-label

tr-electronic-ce65m-absolute-encoder-label2

Used

In stock2 unitsReady to ship

ASYNCHRONOUS MOTOR WITH ABSOLUTE ENCODER

ABB 80.2C asynchronous motor (1.5 kW, 9.55 Nm) with TR CE65M encoder for high-speed, high-precision control. Supports up to 8300 rpm with IP54 protection and Profibus DP interface.

Manufacturer

ABB

SKU

712804

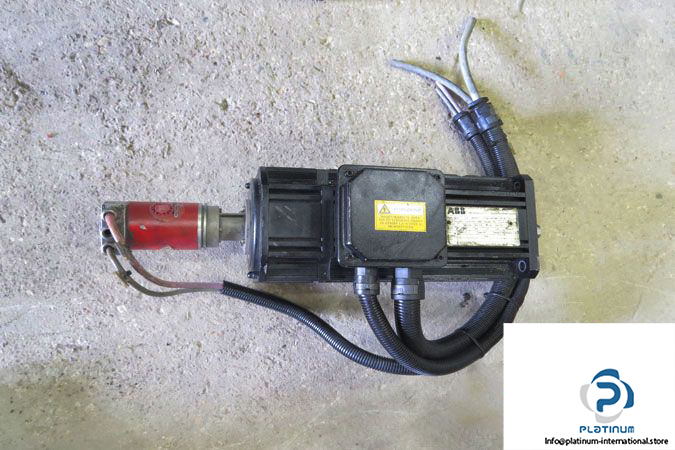

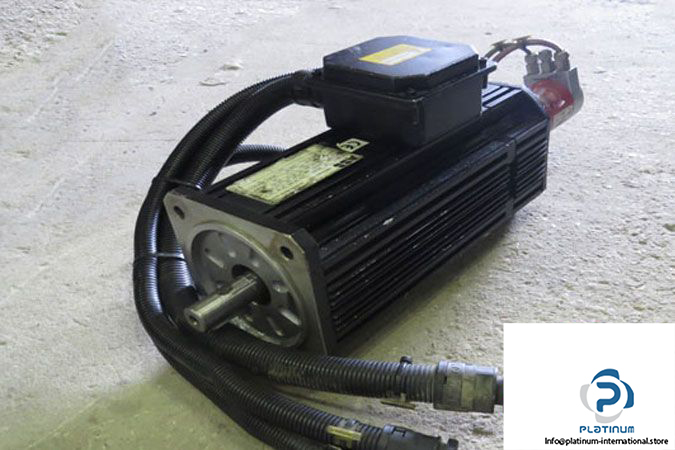

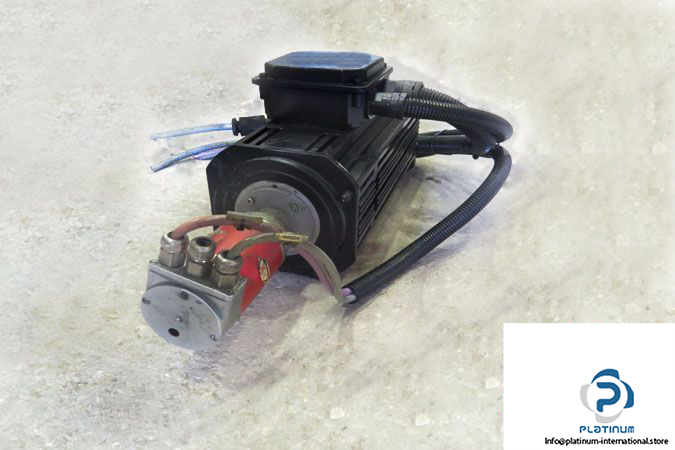

ABB 80.2C ASYNCHRONOUS MOTOR WITH TR-ELECTRONIC CE65M ENCODER

The ABB 80.2C asynchronous motor is a high-performance industrial motor designed for continuous operation under demanding conditions. With a robust IP54 protection rating and an integrated TR-Electronic CE65M absolute encoder, this setup ensures high-precision motion control, making it ideal for automation and drive systems.

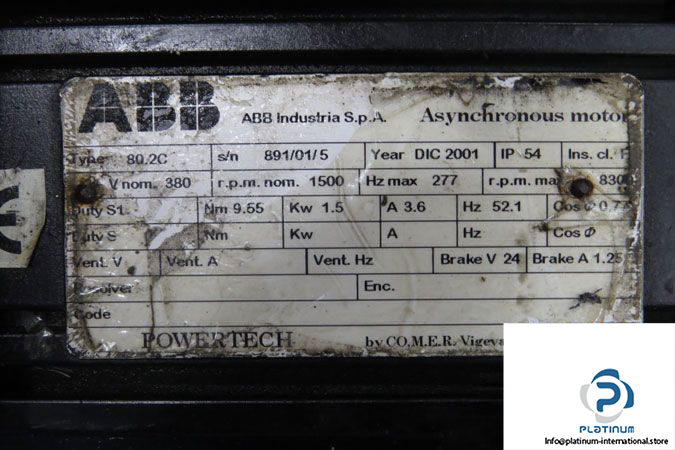

Main Motor Specifications

Manufacturer: ABB
Type: Asynchronous Motor
Model: 80.2C
S No.: 891/01/5
Power Supply: 380 V
Nominal Speed: 1500 rpm
Max Speed: 8300 rpm
Frequency: 52.1 Hz (Max: 277 Hz)
Torque: 9.55 Nm
Power: 1.5 kW
Current: 3.6 A
Brake Voltage: 24 V
Brake Current: 1.25 A
Duty: S1 (Continuous)
Protection: IP54

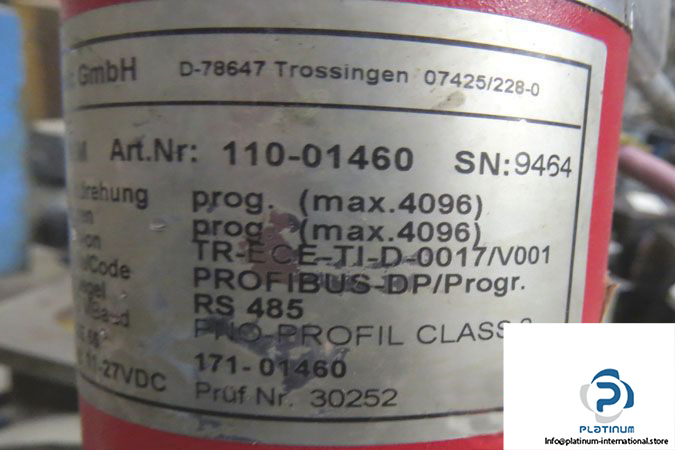

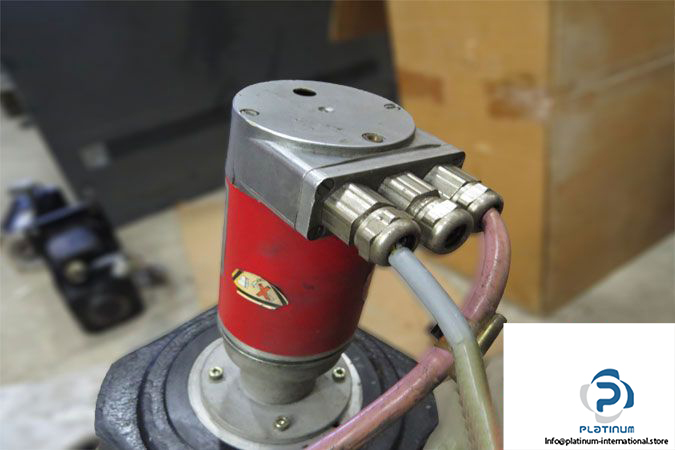

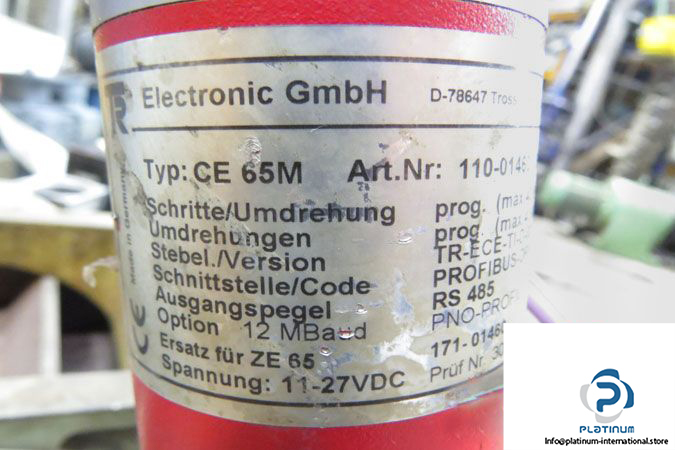

Encoder Specifications

Manufacturer: TR-Electronic GmbH
Type: Absolute Encoder
Model: CE65M
MRN: 110-01460
S No.: 9464
Series: SRS 50
Solid Shaft Diameter: 12 mm
Operating Voltage: 11“27 V DC
Version: TR-ECE-TI-D-0017/V001
Communication Interface: Profibus DP / PROGR
Communication Level: RS 485
Resolution: 4096 Steps/Rev
Measuring Range: 4096 Revolutions
Operating Speed Max.: 6000 RPM
Replacement for: ZE 65 – 171-01460

Ideal for use in motion control, industrial drives, and automation systems. Explore our full range of servo motors and sensors to find complementary components for your system.
