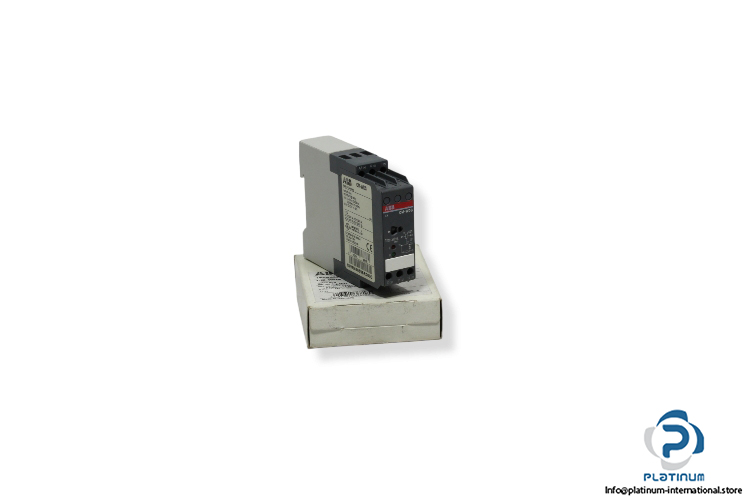

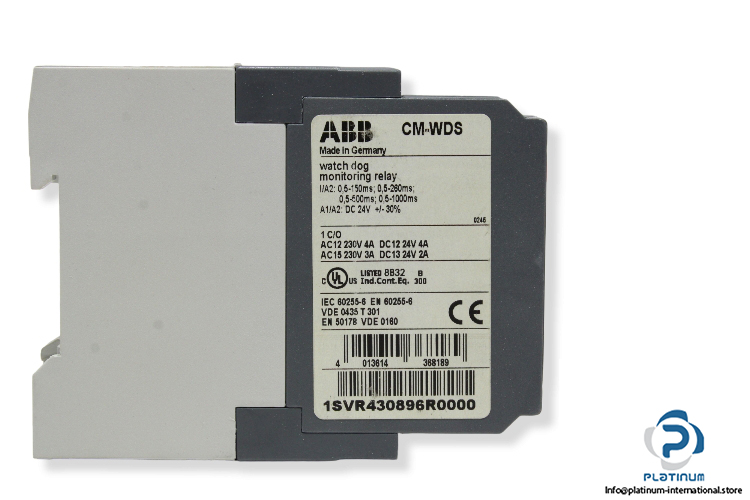

ABB CM-WDS Monitoring Relay

Manufacturer: ABB

Type: Monitoring Relay

Model: CM-WDS

Successor of: 1SVR430896R0000

Rated Supply Voltage: 24 V DC

Rated Operational Current : (AC-12, 230 V / DC-12, 24 V) 4 A , (AC-15, 230 V / DC-13, 24 V) 2 A

power consumption: approx. 1 W

Setting range of cycle monitoring time: 0.5-150 ms , 0.5-260 ms , 0.5-500 ms , 0.5-1000 ms

Number of contacts: 1 c/o contacts

Terminal Type: Screw Terminals

Rated Frequency: 50 … 60 Hz

Operating Temperature: -25 … +60 °C

Degree of protection (terminal): IP20

Dimension: 109.5 x 22.5 x 78 mm
