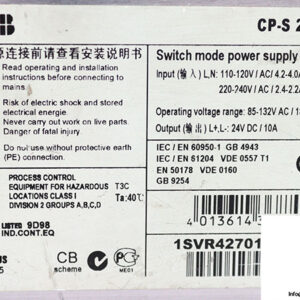

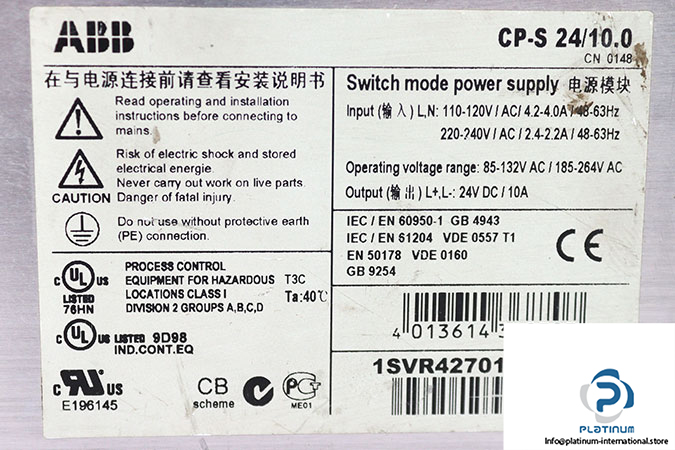

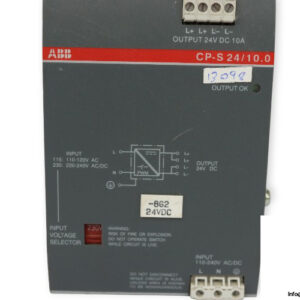

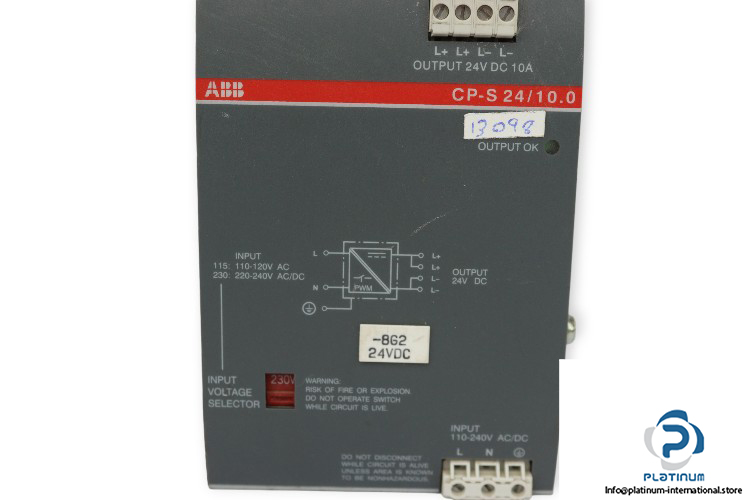

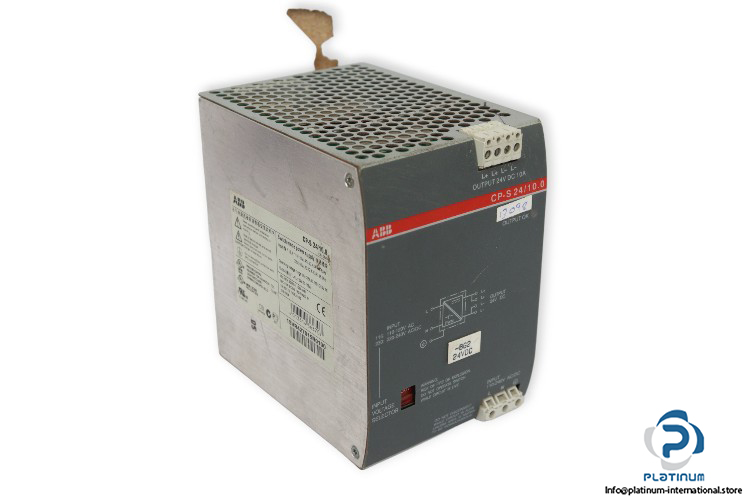

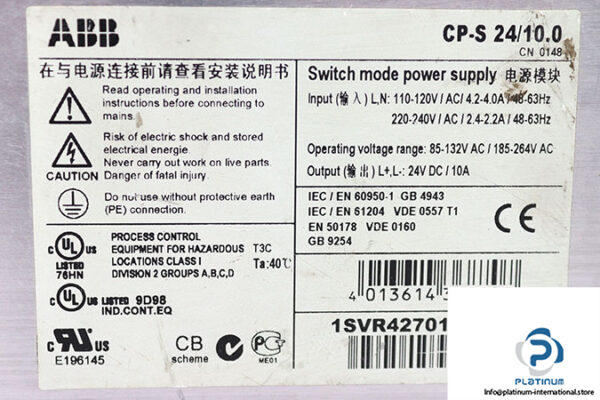

ABB CP-S 24/10.0 Switch Mode Power Supply

Manufacturer: ABB
Type: Primary switch mode power supply
Model.: CPS2410.0
Part No.: 1SVR427015R0100

Input L,N:
Voltage: 115 V AC (110 … 120 V AC)/ 230 V AC (220 … 240 V AC)
Frequency: 48 … 63 Hz
Current: 4.2 … 4 A/ 2.4 … 2.2 A
Operating voltage: 85 … 132 V AC/185 … 264 V AC
Output:
Voltage: 24 V DC
Current: 10 A
Load max.: 240 W
Overload protection: thermal protection
Standard: IEC/EN 60950-1 BB 4943, IEC/EN 61204 VDC 0557 T1, EN 50178 VDE 0160, GB 9254
Material of enclosure: cover zinc-coated sheet steel, enclosure shell aluminum
Degree of protection: IP20
Tightening torque: 0.4 Nm
Ambient operation temperature: -25 … +70 °C
Dimensions (W x H x D): 93.5 x 130 x 135.5 mm
