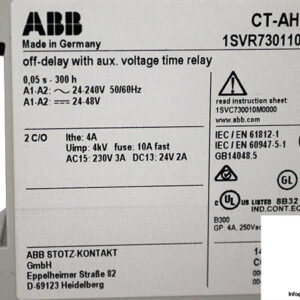

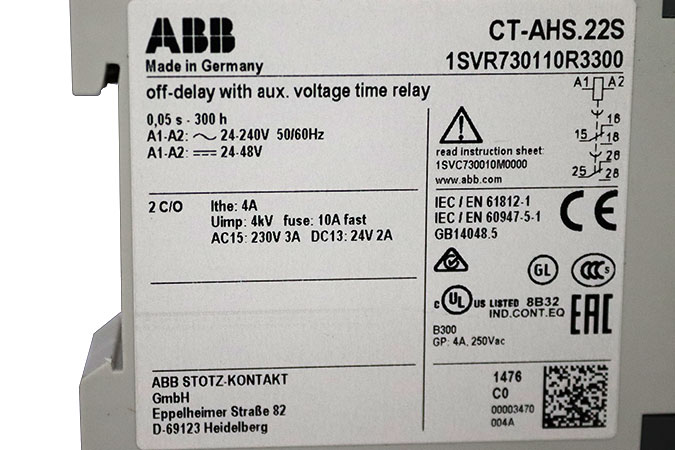

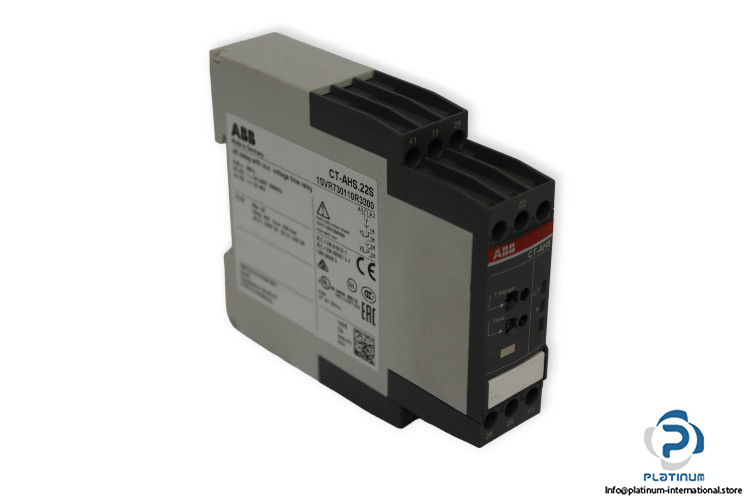

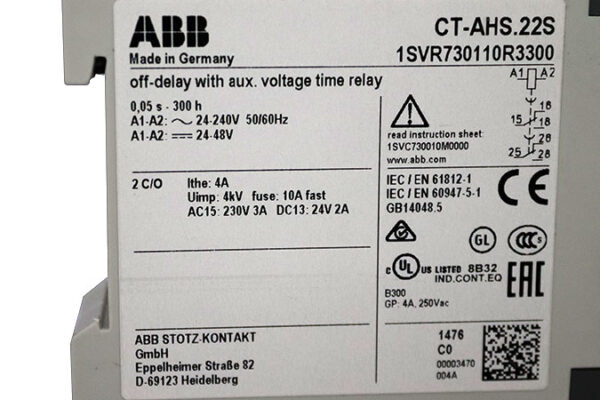

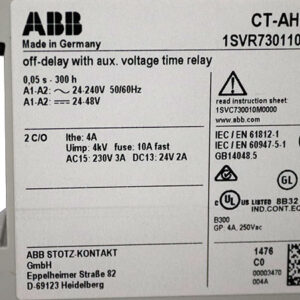

ABB CT-AHS.22S OFF-Delay Time Relay
Manufacturer: ABB
Type: OFF-Delay Time Relay
Model: CTAHS22S
Alternative Model: 1SVR730110R3300
Time Range: 0.05 s … 300 h
Rated Supply Voltage: 220 … 240 V AC / 24 … 48 V DC
Rated Operational Current (Ie):
AC-12 / 15 (230 V): 3 / 4 A
DC-12 / 13 (24 V): 4 / 2 A
Rated Operational Voltage (Auxiliary Circuit): 250 V AC
Contact: SPDT 2 Normally Closed (CO)
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 500 V
Rated Impulse Voltage (Uimp): 4 kV
Minimum Switching Capacity: 10 mA
Protection Class: IP50
Operation Temperature: -25 … 60 °C
Dimensions: 85.6 x 22.5 x 103.7 mm
