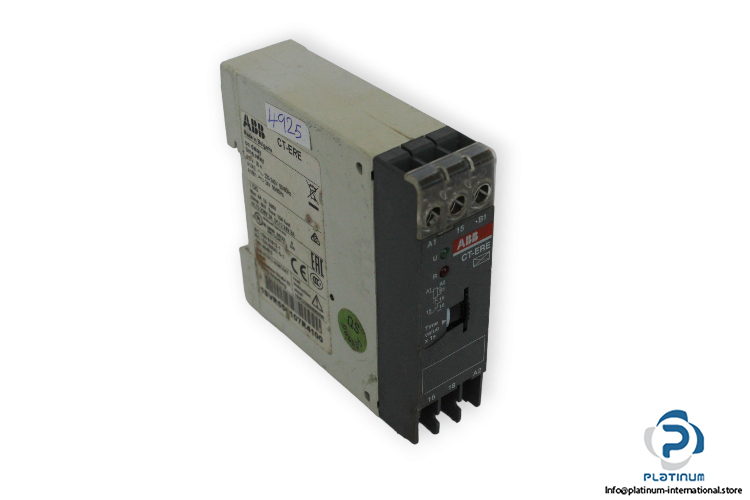

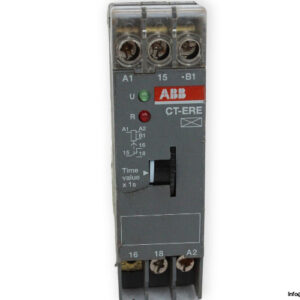

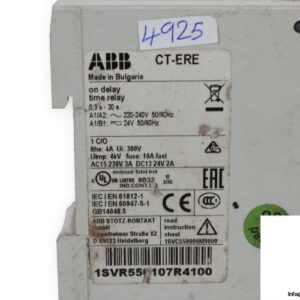

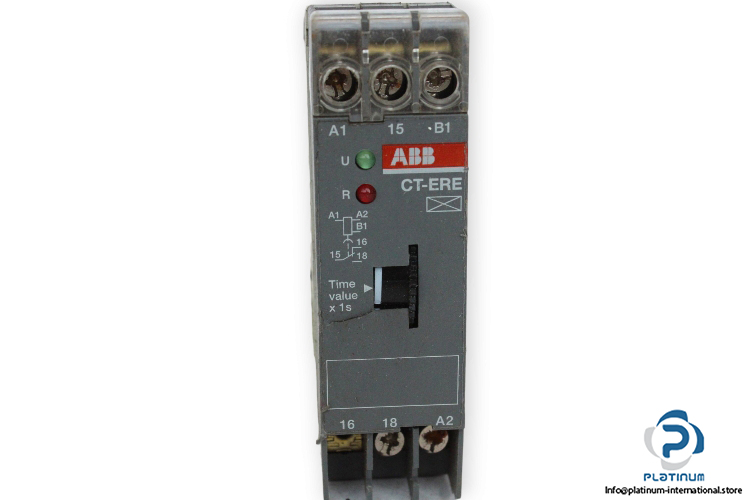

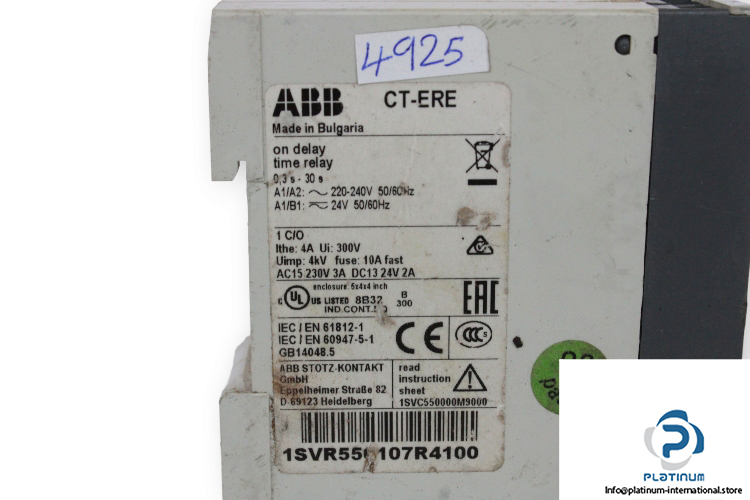

ABB CT-ERE Electronic Timer

Manufacture: Abb
Type: Electronic Timer
Model: CT-ERE
Part No.: 1SVR550107R4100

Rated Control Supply Voltage (Us): 220 … 240 V AC, 24 V AC/DC
Frequency: 50/60 Hz
Thermal current Ith: 4 A
Time range: 0.3 … 30 s
Rated insulation voltage Ui: 300 V
Timer Relay Type: ON-Delay
Output: 1 change over contact (SPDT)
Switching capacity:
AC-15: 230 V AC,3 A
DC-13: 24 V DC,2 A
Fuse: 10 A fast
Rated impulse voltage Uimp: 4 kV
Terminal Type: Screw Terminals
Ambient operation temperature: -20 … +60 °C
Degree of protection: Housing IP50, terminals IP20
Dimensions: 22.5 x 78 x 78.5 mm
