ABB CT-MBS.22S Time Relay
New
In stock1 unitReady to ship
Time Relay
ABB CT-MBS.22S multifunctional time relay with wide supply voltage range, adjustable 0.05 s to 300 h timing, DPDT contacts, and IP20 protection for industrial control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

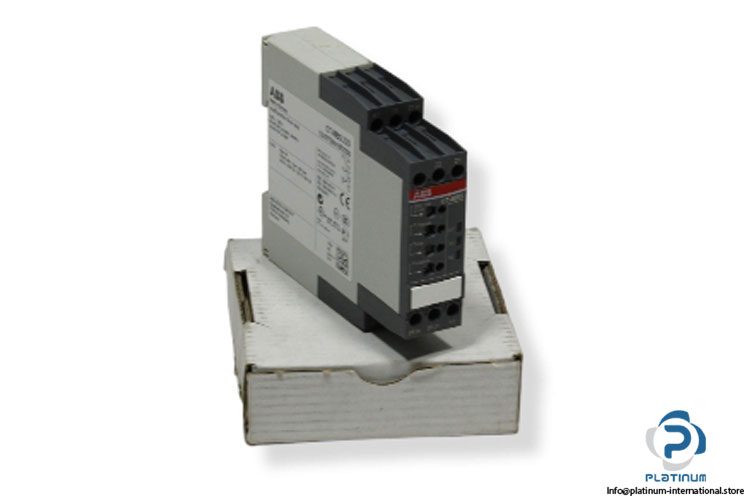

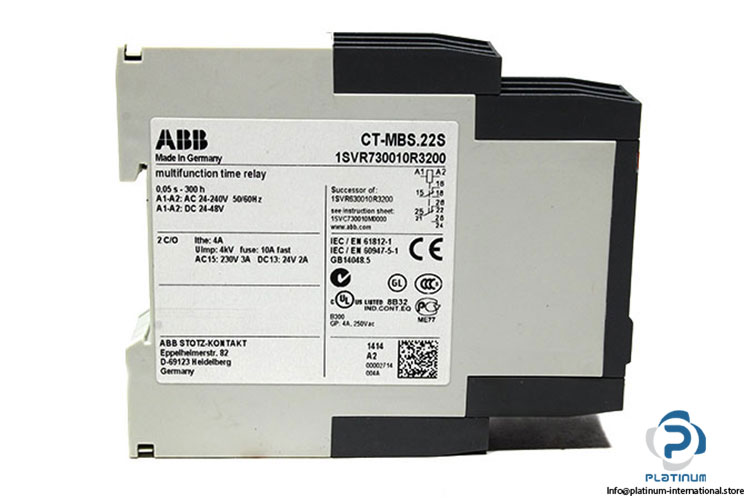

ABB CT-MBS.22S Multifunction Electronic Time Relay
The ABB CTMBS22S is a multifunctional time relay designed to deliver precision timing and reliable control in automation systems. With a wide supply voltage range and robust protection features, it is suitable for diverse industrial environments.
Manufacturer: ABB
Type: Time Relay
Model: CT-MBS.22S
ID No.: 1SVR730010R3200
| Rated Supply Voltage | 24 / 240 V AC , 24 / 48 V DC |
| Rated Operational Current | (AC-15, 230 V) 3 A , (DC-13, 24 V) 2 A |
| Frequency | 50 / 60 Hz |
| Rated Impulse Voltage | 4 kV |
| Time Range | 0.05 s / 300 h |
| Contact | DPDT 2 Change Over (CO) |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
| Dimension | 85.6 x 22.5 x 103.7 mm |
