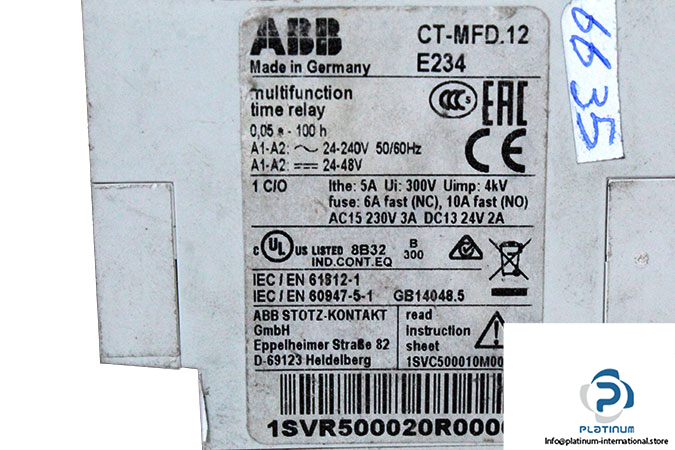

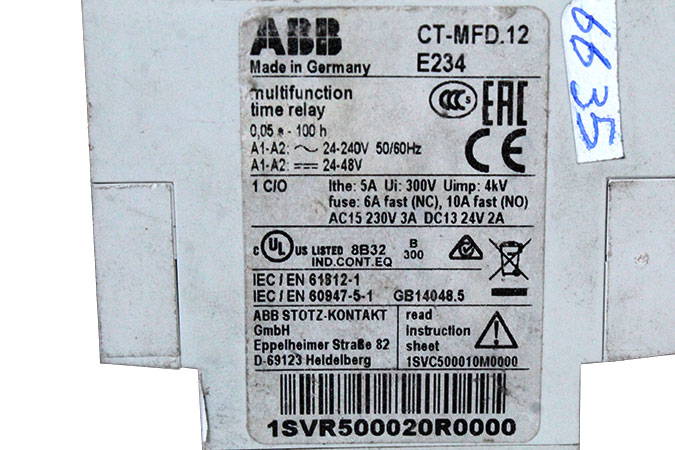

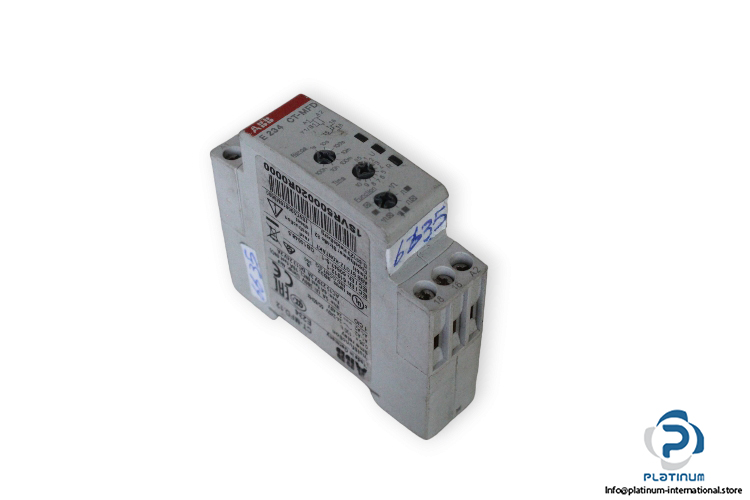

ABB CT-MFD.12 Time Relay

Manufacturer: ABB
Type: Time Relay
Model: CT-MFD.12
MNR: E234

Time Range: 0.05 s … 100 h
Rated Supply Voltage: 220 … 240 V AC,24 … 48 V DC
Contact Rating(Auxiliary Circuit): 250 V AC
Time Range: 0,05 … 1 s
No. of output: 2 ,1 Normally open/1 Normally closed
Insulation Voltage: 300 V
Impulse Voltage: 4 KV
Thermal Current: 5 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Operation Temperature:  -20 … +60 °C
