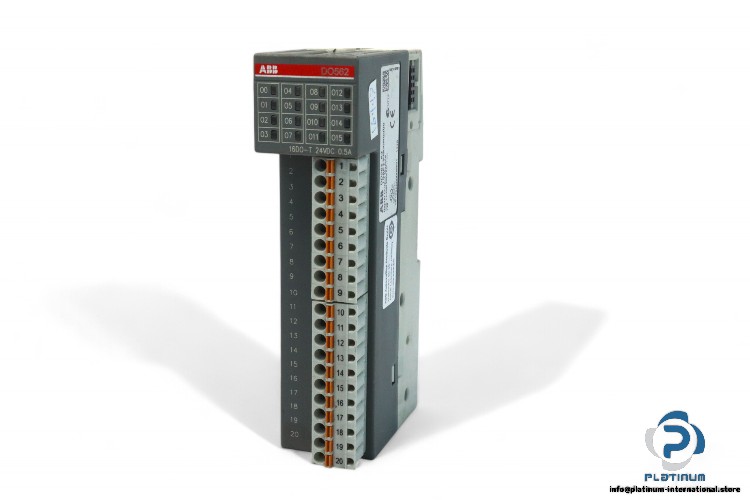

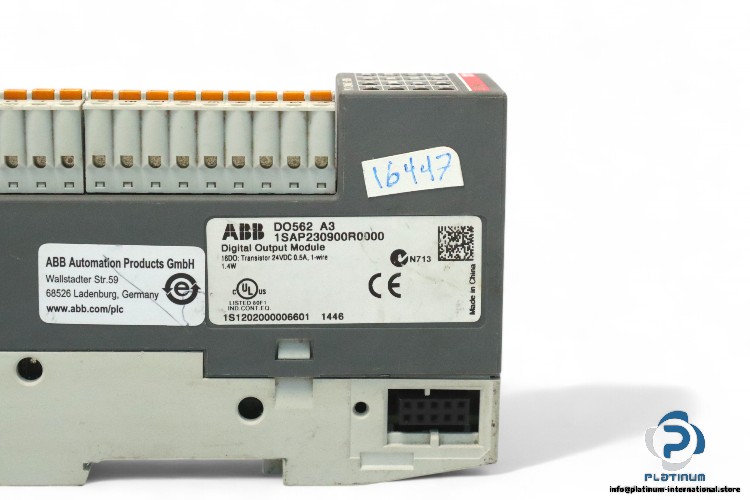

ABB DO562 Digital Output Module

Manufacturer: ABB
Type: DIGITAL OUTPUT MODULE
Model: DO562
Part no.: 1SAP230900R0000

Connections Terminal: 19 for UP (+24 V DC) and terminal 20 for ZP (0 V DC)
Wiring method: Spring/screw terminals
Rated Voltage: 24 V DC
Degree of protection: IP 20
Current consumption: 20 mA
power dissipation within the module Max.: 1.4 W
Mounting with screws: M4
Fastening torque: 1.2 Nm
Number of channels per module: 16 transistor outputs (24 V DC, 0.5 A max.)
Operation Temperature:
0  … 60 °C (horizontal mounting of modules)
0  … 40 °C (vertical mounting of modules)
