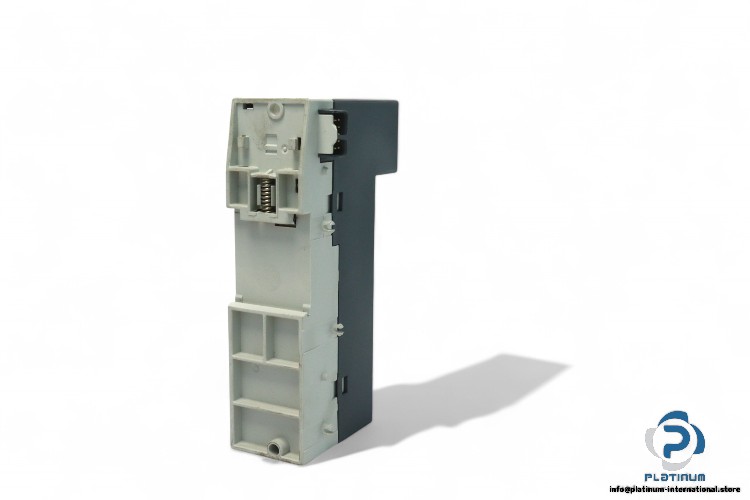

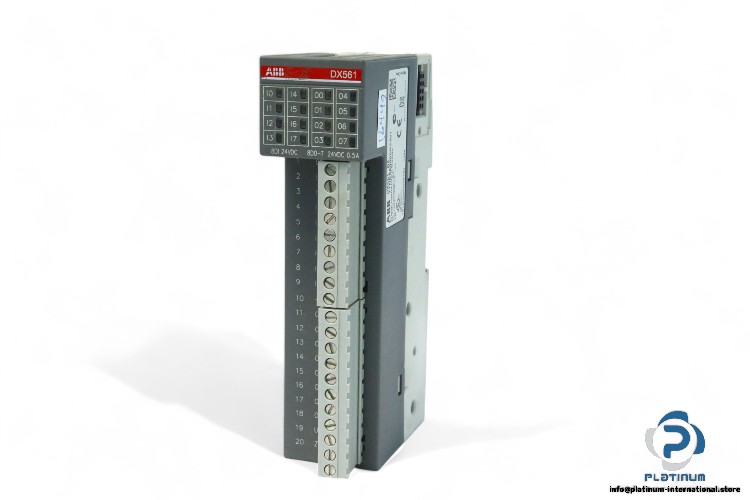

ABB DX561 Digital Input/Output Module
Used
In stock1 unitReady to ship
133,33$
Digital Input/Output Module
The ABB DX561 module provides eight digital inputs and eight transistor outputs with 24 V DC operation, IP20 protection, and reliable signal handling for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ABB DX561 Digital Input/Output Module
The ABB DX561 Digital Input/Output Module is designed for reliable signal processing in automation systems. It provides eight digital inputs and eight transistor outputs, making it suitable for a wide range of industrial control tasks where stable 24 V DC operation is required.
Manufacturer: ABB
Type: Digital Input/Output Module
Model: DX561

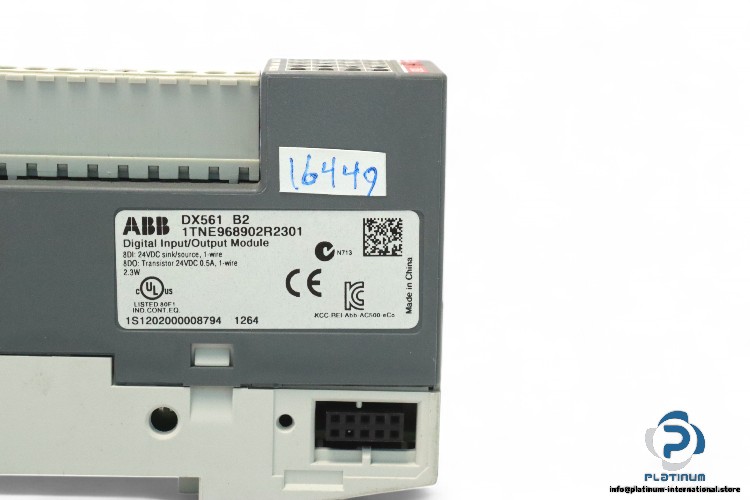

MNR: DX561 B2
Part Number: 1TNE 968 902 R2301
Code: 1S1202000008794 1264
| Connections | Terminal 19 for UP (24 V DC) and terminal 20 for ZP (0 V DC) |
| Wiring Method | Spring or screw terminals |
| Rated Voltage | 24 V DC |
| Degree of Protection | IP20 |
| Current Consumption | 5 mA |
| Power Dissipation Max | 2.3 W |
| Digital Inputs per Module | 8 channels |
| Digital Outputs per Module | 8 transistor outputs, 24 V DC, 0.5 A max |
| Mounting with Screws | M4 |
| Fastening Torque | 1.2 Nm |
| Operation Temperature (Horizontal Mounting) | 0 to 60 degree Celsius |
| Operation Temperature (Vertical Mounting) | 0 to 40 degree Celsius |
