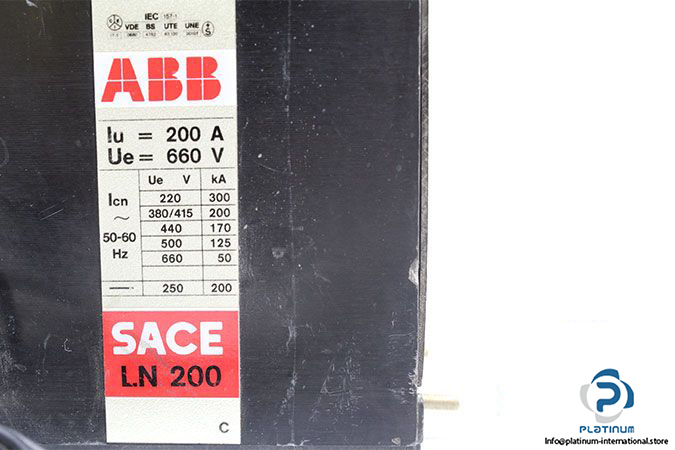

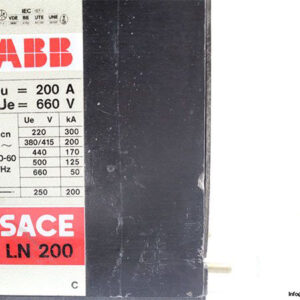

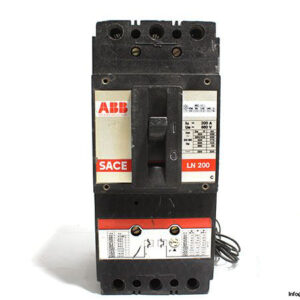

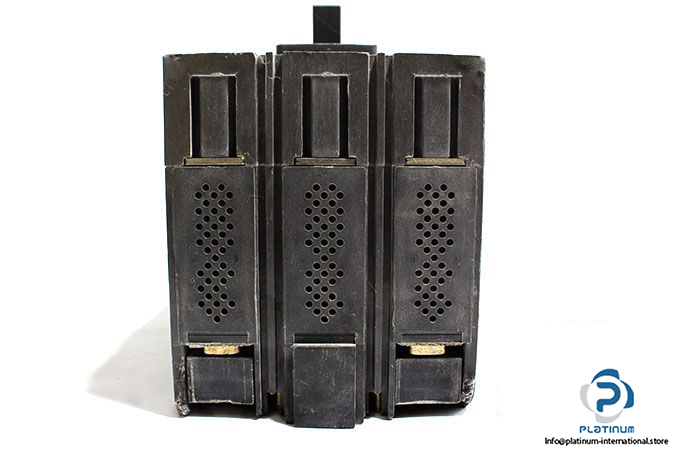

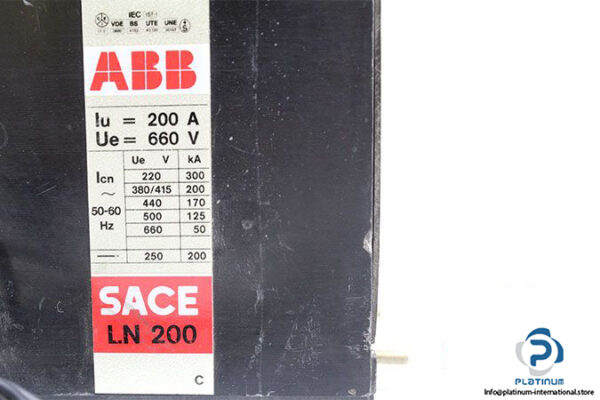

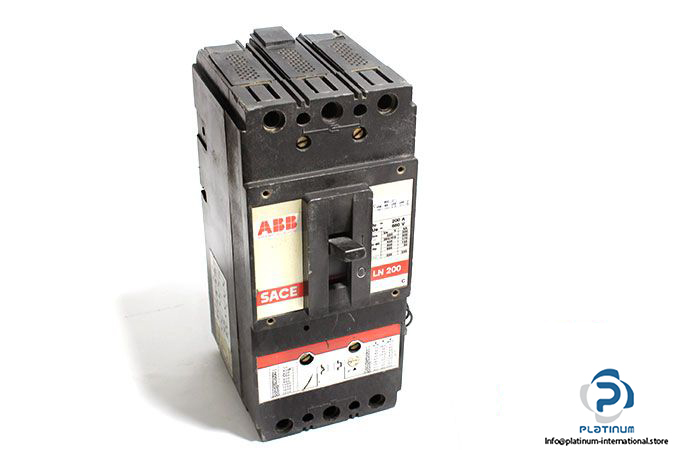

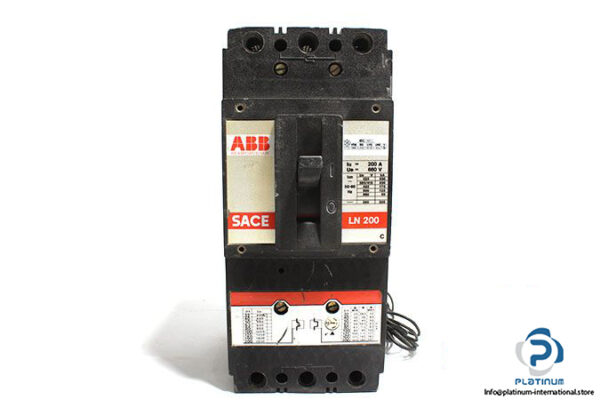

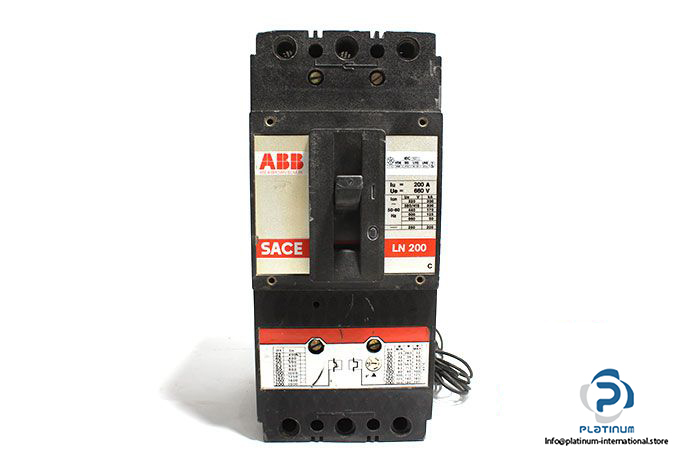

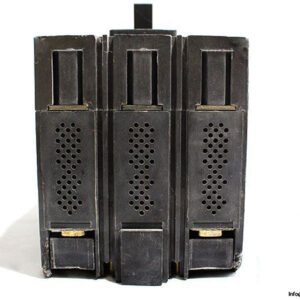

ABB LN 200 Moulded Case Circuit Breaker

Manufacturer: ABB

Type: Moulded Case Circuit Breaker

Series: SACE Limitor

Model: LN 200

Number of Poles: 3

Release: Thermomagnetic

Version: Fixed

Terminals: Front Terminals

Rated Current (I_u): 200 A

Rated Voltage (U_e): 660 V AC / 250 V DC

Rated Impulse (U_imp): 8 kV

Breaking Capacity (I_cu):

300 kA (220/230V AC)

200 kA (380/415V AC)

75 kA (660/690V AC)

200 kA (250V DC)

Short-Circuit Trip Current (Im): 2000 A

Service Frequency: 50 / 60 Hz

Dimensions (W x D x H): 109 x 126 x 250 mm

Protection Class: IP20

Weight: 4.7 kg
