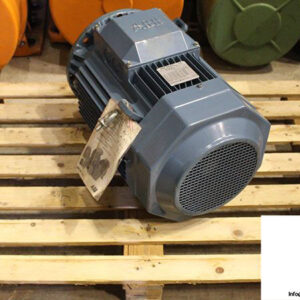

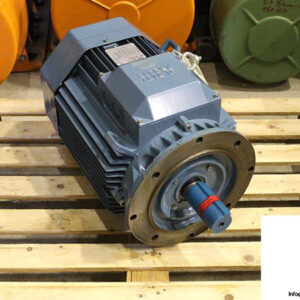

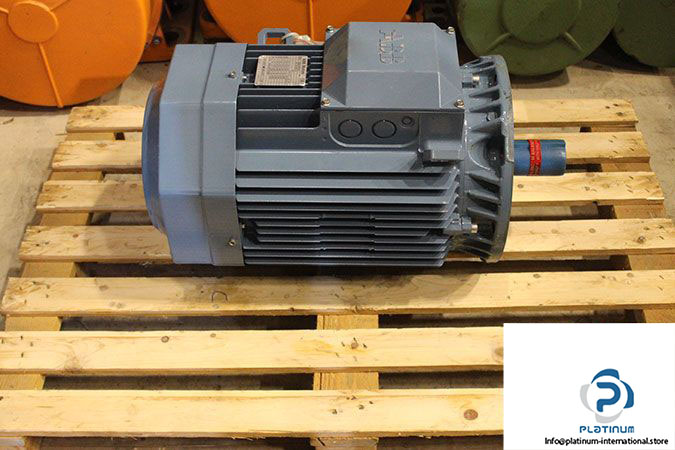

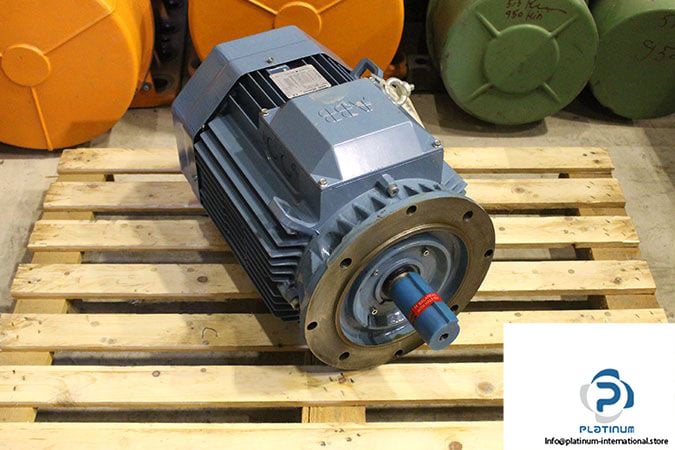

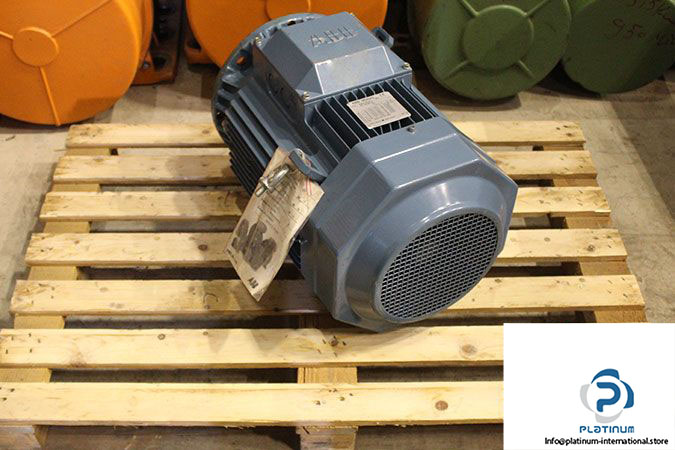

ABB M2AA 180 M 4 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2AA180M4

Product  Code: 3GAA 182 101-BDA

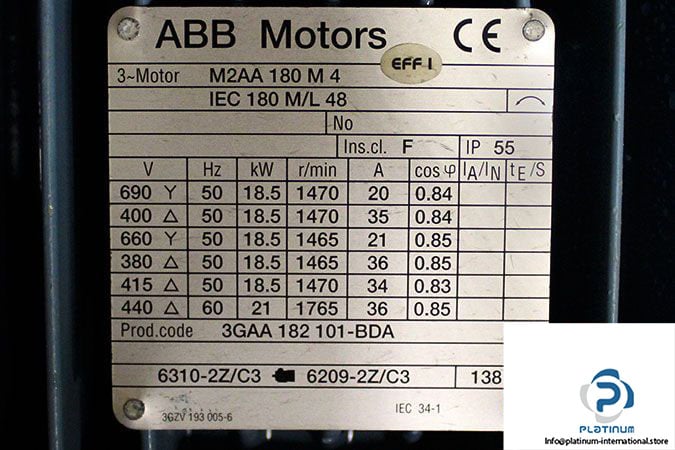

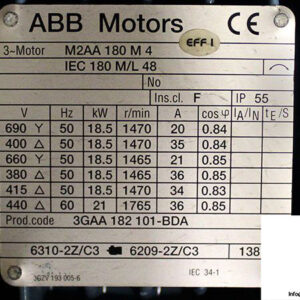

Rated Power [kW]: 18.5/21

Rated Speed [rpm]: 1470-1465/1465

Frequency [Hz]: 50/60

Motor Voltage [V] / Conn. Type: 690-600 / Star

Rated Current [A]: 20.0-21.0

Motor Voltage [V] / Conn. Type: 400-380-415/440 Delta

Rated Current [A]: 35.0-36.0-34.0/36.0

Power Factor: 0.83-0.84-0.85/0.85

Shaft Diameter [mm]: 48

Number of Poles: 4

Standards: IEC 34-1

Protection Class [IP]: 55

Insulation Class: F

Weight [kg]: 138.0
