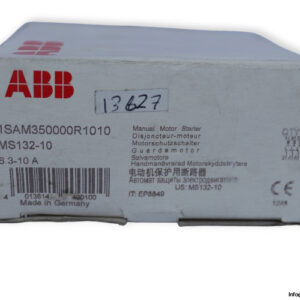

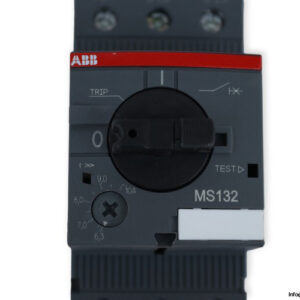

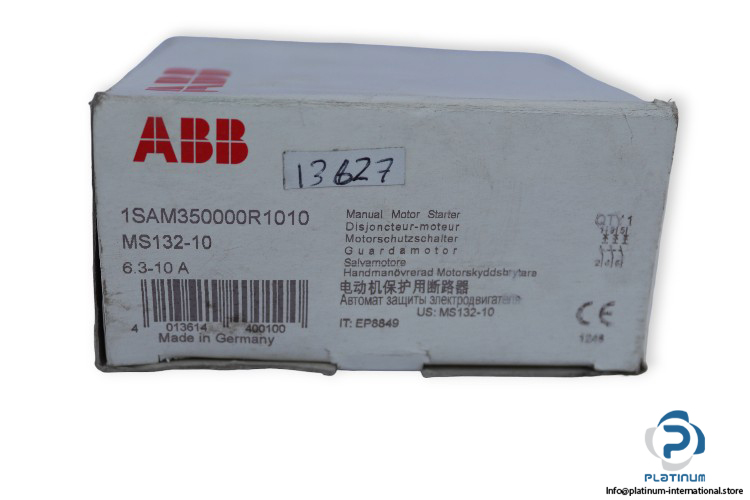

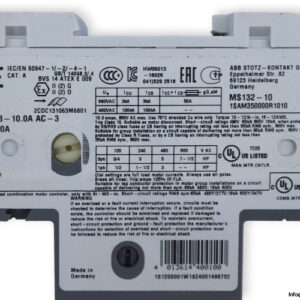

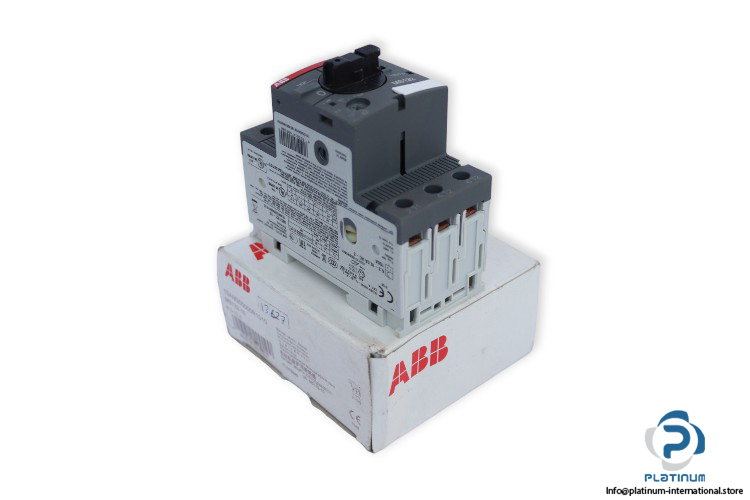

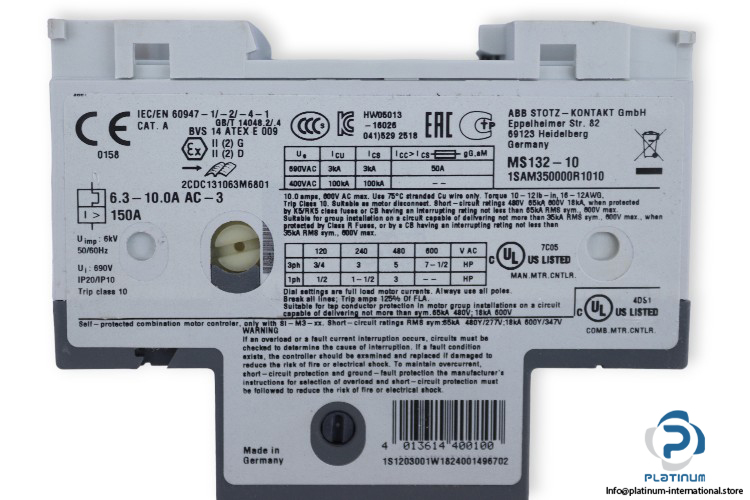

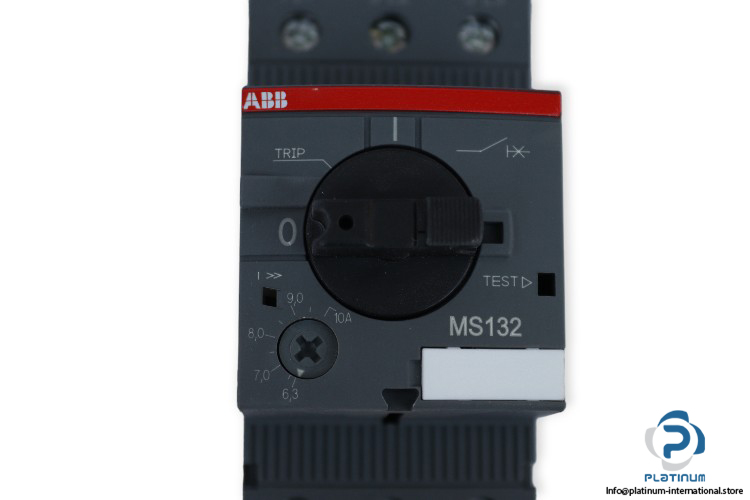

ABB MS132-10 Manual Motor Starter
ABB MS13210 Manual Motor Starter Reliable manual motor starter for industrial applications. Features 690V operational voltage, 100 kA short-circuit breaking capacity, and compact design for efficient motor protection.
ABB MS13210 Manual Motor Starter
The ABB MS13210 is a high-performance manual motor starter designed for reliable motor protection and control. With a compact design and robust construction, it ensures effective overload and short-circuit protection in various industrial applications.
Key Details:
Manufacturer: ABB
Type: Manual Motor Starter
Model: MS13210
ID Number: 1SAM350000R1010
Designed for industrial motor control and protection, the ABB MS13210 is a compact and durable solution that ensures efficient motor operation while preventing damage caused by overloads and short circuits.
| Rated Operational Voltage | 690 V AC / 250 V DC |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 150 A |
| Rated Insulation Voltage | 690 V |
| Frequency | 0 to 400 Hz |
| Setting Range | 6.3 to 10 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Power AC-3 | 4 kW |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 100 kA |
| Number of Poles | 3 |
| Actuator Type | Rotary Handle |
| Protection Class | IP20 |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Ambient Temperature | -25 to 70 °C |
| Dimensions | 90 x 45 x 87 mm |
